Shop SCHNEIDER ELECTRIC

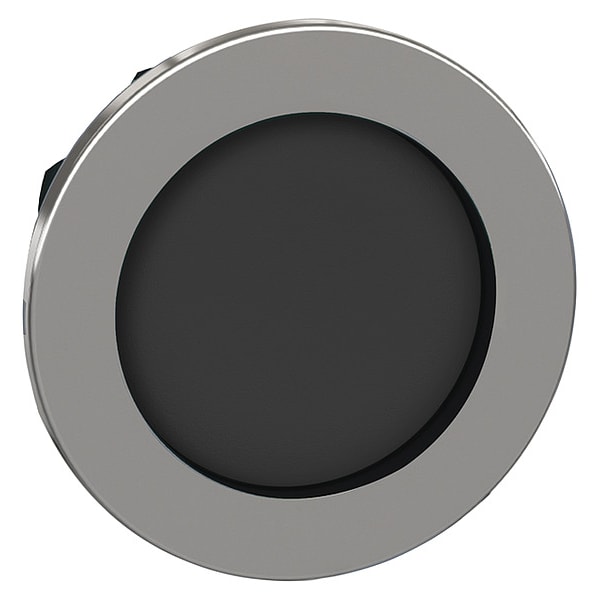

Pushbutton Head, 30 mm, Black

  • Mfr # ZB4FA26

  • Zoro # G3456294

product price:
$
25.95
/ea

Key Features

Push Button Style
Recessed
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
30 mm
Head Color
Black
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ZB4FA26
Zoro #
G3456294
UPC #
-
Country of Origin
Korea, Republic of
Item
Push Button Head
Push Button Style
Recessed
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Black
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
CE, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
Bezel Material
chromium plated metal
Legend/Background Color
No Legend
Illuminated / Non-Illuminated
Non-Illuminated
IP Rating
IP66, IP67, IP69, IP69K
Connection Type
Screw-On
Basic Material
Metal
For Use With
Body Sub-assembly ZB4BZ Series
Color
Black
Type Of Operator
spring return
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Ik Degree Of Protection
IK06 IEC 50102
Electrical Composition Code
C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
Shape Of Signaling Unit Head
round
Ambient Air Temperature For Operation
-40-70°C
Overvoltage Category
class I IEC 60536
Product Or Component Type
head for non-illuminated push-button
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
Mechanical Durability
10000000 cycles
Operator Profile
black recessed, unmarked
Device Presentation
basic element
Product Certifications
UL Listed || CSA || CCC || EAC
Head Type
built-in-flush
Device Short Name
ZB4F
Ambient Air Temperature For Storage
-40-70°C
Protective Treatment
TH
NEMA Enclosure Rating
13, 4, 4X
Compatible with Brand
Schneider
Compatible Operator Illumination
Non-Illuminated
Compatible with Series
XB4
Head Style
Flush

Description

Push Button Head, Color Black, For Use With Body Sub-assembly ZB4BZ Series, Size 30 mm, Basic Material Metal, Non-Illuminated, Head Material Metal, Connection Type Screw-On, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable, Legend/Background Color No Legend, Standards CE, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
