  13. Rlay Scket, Finger Safe, Square, 14 Pin, 16A

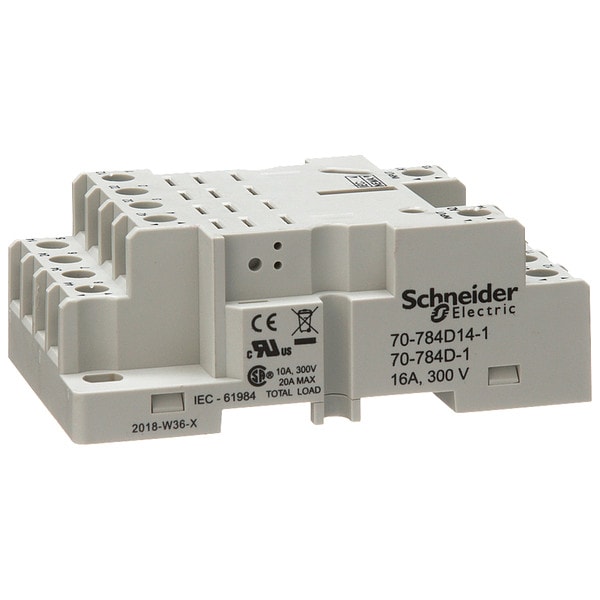

Schneider Electric Rlay Scket, Finger Safe, Square, 14 Pin, 16A 70-784D14-1 - main

Rlay Scket, Finger Safe, Square, 14 Pin, 16A

  • Mfr # 70-784D14-1

  • Zoro # G2677552

product price: $15.15
/ea

Key Features

Item - Relay
Relay Socket
Socket Type - Relay
Elevator, Finger Safe
Base Style - Relay Socket
Square
Contact Form - Relay Socket
4PDT
Mounting - Relay
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
70-784D14-1
Zoro #
G2677552
UPC #
-
Country of Origin
China

Dimensions

Depth
3.13 in
Width - Relay Socket
1.96 in
Depth - Relay Socket
3.33 in
Width
1.97 in
Height - Relay Socket
1.18 in
Length
3.33"
Height
1.18 in
Flat Pin Width
0.187 in

Details

Item - Relay
Relay Socket
Socket Type - Relay
Elevator, Finger Safe
Base Style - Relay Socket
Square
Contact Form - Relay Socket
4PDT
Mounting - Relay
DIN Rail
Electrical Connection - Relay Socket
Screw Clamp
Number of Pins - Relay
14
Socket Code
F
Contact Rating - Relay Socket
16A @ 300V AC
Color
White
Socket Type
Standard, Finger Safe
Voltage
300VAC
Contact Rating
16A @ 300VAC
Standards
CE Certified, CSA Certified, UL Listed
Number of Pins
14
Mounting
Din Rail
Terminals
Screw Clamp
Socket Style
Square
Item
Relay Socket
Status Indicator
None
Number of Terminals
14
Base Style
Square
Mounting Style
DIN Rail
Compatible Relays
784 Series
Contact Form
4PDT
Maximum Operating Temperature
131 Degrees F
IP Rating
IP20
Current Rating
16 A
Minimum Operating Temperature
-40 Degrees F
Contact Terminal Arrangement
Mixed
Pin Shape
Flat
Contact Rating (AC)
16 A @ 300V
Weight
2.19 oz
Electrical Connection
Screw Clamp
Contact Composition
4 NO + 4 NC
Flame Retardance
UL94-V0
Shape of Screw Head
Combination roundhead
Fixing Mode
By screw M3.5, M3.5 panel; Clip-on 35 x 15 mm symmetrical DIN rail
[Ue] rated operational voltage
300 V
Ambient Air Temperature for Storage
-40 to 221°F (-40 to 105°C)
Product Type
Socket
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Tightening Torque
0.9 N.m
Product Certifications
UL; CSA; CE
Product Range
Legacy
Connections Terminals
screw clamp terminals solid for output; screw clamp terminals stranded for output
Product Compatibility
relay 784XDX; suppressor module 70-ASMM; diode 70-ASMD; signalling device 70-ASMLG; suppressor module 70-ASMR

Description

Relay Socket, Base Style Square, Contact Form 4PDT, Current Rating 16 A, Electrical Connection Screw Clamp, Flat Pin Width 0.187 in, Number of Pins 14, Number of Terminals 14, Pin Shape Flat, Socket Type Standard, Finger Safe, Contact Terminal Arrangement Mixed, Mounting Style DIN Rail, Color White, Compatible Relays 784 Series, Contact Rating (AC) 16 A @ 300V, Depth 3.13 in, Height 1.18 in, IP Rating IP20, Maximum Operating Temperature 131 Degrees F, Minimum Operating Temperature -40 Degrees F
