  8. Safety Switch, Fusible, 3PST, Three Phase, NEMA 1, Indoor, Steel

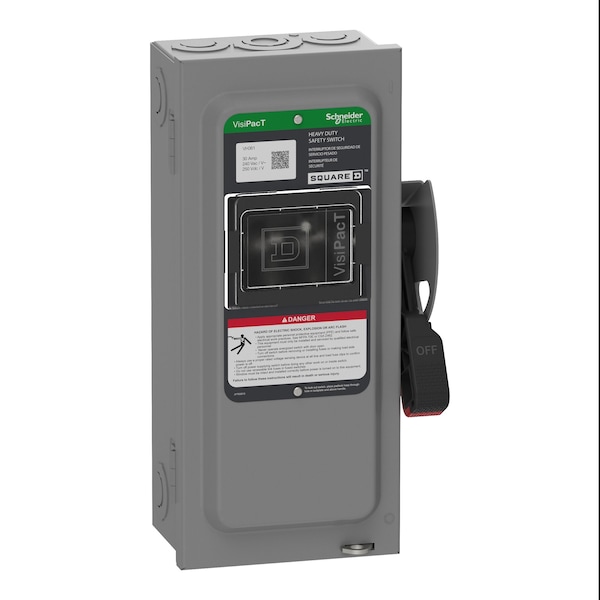

Schneider Electric Safety Switch, Fusible, 3PST, Three Phase, NEMA 1, Indoor, Steel VH361 - main

Safety Switch, Fusible, 3PST, Three Phase, NEMA 1, Indoor, Steel

  • Mfr # VH361

  • Zoro # G209691341

CAD Available
product price:  $379.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Protection Method
Fusible
Contact Form
3PST
Current Rating
30 A
Phase
Three
For Fuse Class
Class H, Class K
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VH361
Zoro #
G209691341
UPC #
3606485893853
Country of Origin
United States

Dimensions

Width
6 3/8 in
Depth
5 1/8 in
Height
14 5/8 in
Maximum Enclosure Depth
5.11 in

Details

Item
Safety Switch
Protection Method
Fusible
Contact Form
3PST
Current Rating
30 A
Phase
Three
For Fuse Class
Class H, Class K
Environment
Indoor
Enclosure Type
NEMA 1
Voltage
600 V
Handle Color
Black/Red
Housing Material
Steel
Standards
EU RoHS, UL Listed file E2875
Amps
30 A
IP Rating
IP20
Includes
Dual Cover Interlock
Number of Poles
3
Number of Wires
3
Duty
Heavy Duty
Neutral Assembly Included
No
Horsepower @ 600V AC
20 hp
Features
Quick Make/Break Operating Mechanism, Viewing Window
Horsepower @ 480V AC
15 hp
Mounting Style
Surface Mount
Includes Interlocked Receptacle
Yes
Fuse Kit (Class R)
Mfr. No. RFK03L
Series
F
NEMA Enclosure Rating
1
Number of Mounting Holes
5
Number of Locks
2
Horsepower @ 240V AC
Not Rated
Compatible with Manufacturer Model Number
RFK03L
Compatible Manufacturer Part Number
RFK03L
Compatible Manufacturer Model Number
RFK03L
For Use With Mfr. Model Number
RFK03L
Wiring Configuration
3-wire
Device Application
heavy application
Product Certifications
UL listed file E2875
Condition Of Use
suitable service entrancefor USA || suitable service entrancefor Mexico
Disconnector Device Type
fusible disconnect
Tightening Torque
45-45 lbf.in 13.3-13.3 mm² (AWG 6) || 40-40 lbf.in 8.367-8.367 mm² (AWG 8) || 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
Product Or Component Type
Single Throw Safety Switch
Device Mounting
surface
Short-Circuit Current
10 kA for H, K, J or R without fuse rejection clips || 200 kA for R with fuse rejection clips || 200 kA for J
Device Composition
field installed kit available
Electrical Connection
lugs
Series Name
heavy duty
Compatible with Manufacturer Model No.
RFK03L
Compatible with Mfr. Model No.
RFK03L
For Use with Mfr Model Number
RFK03L
Compatible Pump Manufacturer Part Number
RFK03L
Compatible Mfr. Model Number
RFK03L
CAD Available
Yes

Description

The SCHNEIDER ELECTRIC - VH361 is a Safety Disconnect Switch, an essential device in industrial settings intended to break the flow of electricity for equipment maintenance and emergency situations. This switch falls under the category of Electrical Supplies and is used in power systems for swift disconnection, which may help reduce the risk of electrical accidents during routine operations or unexpected events.

  • Amps: With a current rating of 30 A, this switch is rated to carry a maximum amount of electrical current. Exceeding this rating could result in overheating or damage.
  • Compatible Manufacturer Model Number: The model number RFK03L indicates which models of safety disconnect switches this product is designed to work with or replace.
  • Condition Of Use: Intended for service entrance use in both USA and Mexico. Users should ensure compliance with local electrical codes and standards.
  • Contact Form: The 3PST contact form determines how many circuits can be controlled by this safety disconnect switch.
  • Device Mounting: Intended for surface mounting; users should install it on an appropriate flat area.
  • Duty: Classified as Heavy Duty; users should determine its suitability based on their specific application needs.
  • Enclosure Type: Includes a NEMA 1 rated enclosure that has been tested under certain environmental conditions like dust, water exposure etc., but actual performance will depend on individual usage circumstances
  • Housing Material: Made from steel which may enhance durability under certain environmental conditions depending upon usage
