Shop TELEMECANIQUE SENSORS

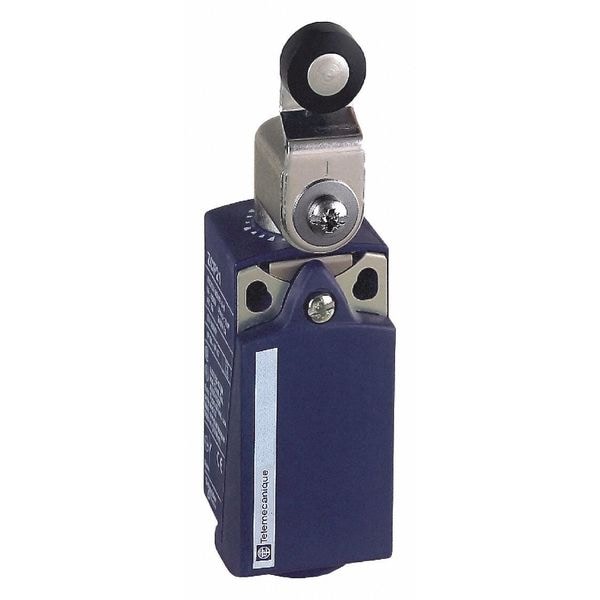

Limit Switch, Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side

  • Mfr # XCKP2118G11

  • Zoro # G2349672

product price:  $67.65
/ea

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 240V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XCKP2118G11
Zoro #
G2349672
UPC #
785901300410
Country of Origin
Multiple

Dimensions

Body Height - Limit Switch
2.56 in
Actuator Length
1.3 in
Actuator Length - Limit Switch
1.3 in
Width
1.22"
Body Depth - Limit Switch
1.18 in
Roller Dia.
0.75 in
Roller Width
0.22 in
Height
2.56"
Body Width - Limit Switch
1.22 in
Depth
1.18"
Manufacturer Warranty Length
18 mo
Body Depth
1.18 in
Overall Height
2.56 in
Mounting Hole Diameter
0.17 in
Overall Depth
1.18 in
Roller Diameter
0.75 in
Body Height
2.56 in
Overall Width
1.22 in
Body Width
1.22 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 240V
DC Contact Rating - Limit Switch
10A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Standards
CE, CSA, UL Listed
Boot Sealed Actuator (Limit Switch)
No
Mounting Hole Spacing - Limit Switch
0.75 in
AC Contact Rating
10 A @ 240 V
Boot Sealed Actuator - Limit Switch
No
Operating Force
0.9 in-lb
Operating Temp. Range
-13 Degrees to 158 Degrees F
Body Material
plastic
DC Contact Rating
0.27 A @ 250 V
Contact Form - Limit Switch
1NC/1NO
Roller Material
Thermoplastic
Actuator Style
Roller Lever Plunger
Actuator Style (Limit Switch)
Rotary, Roller Lever
Travel
90 Degrees
Actuator Location
Side
Wiring Entry
G11 Metric
Electrical Connection
Screw Terminal
Contact Form
1NO/1NC
Series
XCKP
Body Style (Limit Switch)
Miniature
Voltage Rating
240VAC/DC
NEMA Rating
1, 12, 13, 2, 4, 6
Basic Actuator Style (Limit Switch)
Rotary
Limit Switch Style
General Purpose Limit Switch
IP Rating
IP66, IP67
Actuator Location (Limit Switch)
Side
Arm Material
Metal
Stem Thread - Limit Switch
No Stem
Amps
10
Movement
CCW, CW
Mounting Hole - Limit Switch
(2) 0.17 in dia
Certification
CSA || CCC || UL
Special Features
lateral approach, 2 directions
Head Material
zamak
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Electrical Durability
5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Head Type
rotary head
Contact Action
snap action
Short Circuit Protection
10 A cartridge fuse gG
Min. Actuation Velocity Horizontal
1.5 m/s
Weight
0.135 kg
Mechanical Durability
10000000 cycles
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Actuation Type
by 30° cam
Type Of Operator
spring return roller lever thermoplastic
Number Of Poles
2
Boot Sealed Actuator
No Boot Included
Resistance Properties
Shock Resistant, Vibration Resistant
Number of Mounting Holes
2
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6
Mounting Style
Surface
Operating Temperature - Minimum
-13 Degrees F
Operating Torque - Maximum
0.9 in-lb
Mounting Hole Horizontal Center to Center Distance
19 mm
Directional Movement
CCW/CW
Operating Temperature - Maximum
158 Degrees F

Description

Limit Switch, Actuator Style - Limit Switch Roller Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 240V, DC Contact Rating - Limit Switch 10A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.3 in, Body Height - Limit Switch 2.56 in, Body Width - Limit Switch 1.22 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6
