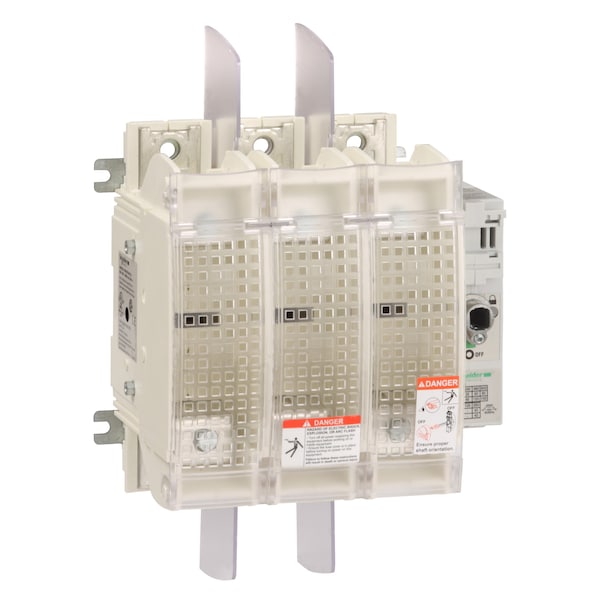

Schneider Electric Disconnect Switch, Fusible, 3P, Three Phase, External Frontal GS2MU3N - main

Disconnect Switch, Fusible, 3P, Three Phase, External Frontal

  • Mfr # GS2MU3N

  • Zoro # G0858320

product price: $1,283.93
/ea
Free Shipping & Returns

Key Features

Protection Method
Fusible
Contact Form
3P
Current Rating
200 A
Phase
Three
For Fuse Class
Class J
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GS2MU3N
Zoro #
G0858320
UPC #
-
Country of Origin
France

Dimensions

Width
196.2 mm
Height
195 mm
Depth
130 mm
Fuse Size
J

Details

Item
Disconnect Switch
Protection Method
Fusible
Contact Form
3P
Current Rating
200 A
Phase
Three
For Fuse Class
Class J
Voltage
600 V
Handle Type
External Frontal
Standards
UL98 || CSA C22.2 No 4
Amps
200 A
Number of Poles
3
Fusible / Nonfusible
Fusible
Electrical Durability
6000 cycles
Connections - Terminals
power circuit lugs-ring terminals 16-152 mm²
Poles Description
3P
Device Application
protection
Ambient Air Temperature For Storage
-40-80°C
Range
TeSys
Protected Poles Description
3t
Network Type
DC || AC
Fire Resistance
960°C body
Ip Degree Of Protection
IP20 IEC 60529 with terminal cover)
Ambient Air Temperature For Operation
-20-70°C
Mounting Support
plate
Breaking Capacity
1600 A 400 V
Mechanical Durability
10000 cycles
Device Short Name
GS2MU
Type Of Operating Handle
external frontal
Short-Circuit Withstand
32 kA
Tightening Torque
power circuit 8.5-8.5 N.m
Network Frequency
50/60 Hz
Product Or Component Type
switch-disconnector-fuse
Rated Operational Power In W
100 kW 400 V || 140 kW 500 V || 185 kW 690 V
Product Name
TeSys GS
Contacts Type And Composition
3 NO
Conventional Free Air Thermal Current
200 A (at 104°F (40°C))

Description

Disconnect Switch Fusible,600V,200A,3P
