  15. Selectr Swtch Cntrl Station, 1NO/1NC, 30mm

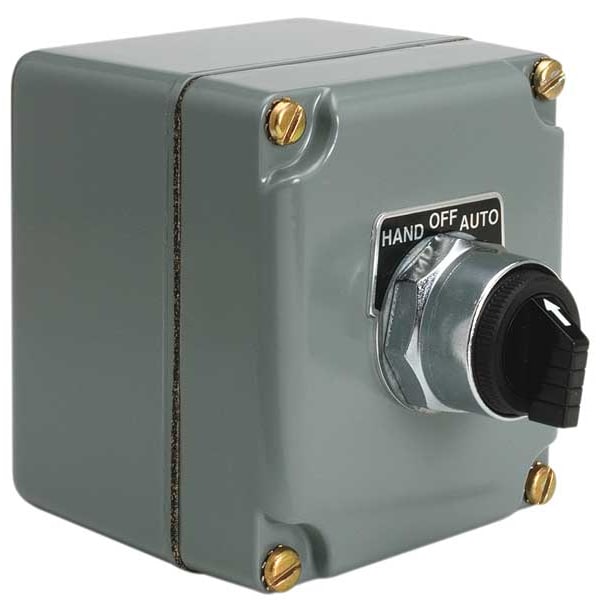

Schneider Electric Selectr Swtch Cntrl Station, 1NO/1NC, 30mm 9001KYK111 - main

Selectr Swtch Cntrl Station, 1NO/1NC, 30mm

  • Mfr # 9001KYK111

  • Zoro # G1565304

product price: $227.99
/ea
Free Shipping & Returns

Key Features

Contact Form
1NO/1NC
Number of Gangs
1
Legend
Hand/Off/Auto
Type of Operator
Selector Switch
Number of Pilot Lights
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KYK111
Zoro #
G1565304
UPC #
785901513391
Country of Origin
Mexico

Dimensions

Size
30 mm
Width
3.58 in
Height
3.53 in
Depth
4 in
Overall Height
4 in
Hub Size - Maximum
3/4 in
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
30 mm
Overall Width
3.62 in
Overall Depth
3.53 in

Details

Item
Selector Switch Control Station
Contact Form
1NO/1NC
Number of Gangs
1
Legend
Hand/Off/Auto
Type of Operator
Selector Switch
Number of Pilot Lights
0
Number of Operators
1
NEMA Rating
1, 13, 3, 4
Hub Style
Dead-End
Series
9001K
Contact Rating
10A @ 600V AC, 2.5A @ 24V DC
Standards
REACH Free of SVHC, UE RoHS
For Use With
indoor/outdoor
Action
Maintained
Hub
3/4 in NPT
Mechanical Interlock
No
Green Environmental Attribute
RoHS 2011/65/EU Compliant
NEMA Contact Rating Designation
A600/Q600
Mounting
Wall
Enclosure Color
Gray
Enclosure Material
Zinc
Operator Color
Black
IP Rating
IP66
Number of Speeds
1
Terminal Connection
screw-clamp terminals
Mounting Style
Surface
Enclosure/Cubicle Description
Surface mounting
Control Station Composition
1 push-button 1 NO + 1 NC HAND-OFF-AUTO
Contact Block Name
KA1
Rated Operational Current AC
10 A
Product Or Component Type
Complete control station
Provided Equipment
Contact block; Legend plate
NEMA Degree Of Protection
NEMA 3/4/13
Maintained Action Release
Twist
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Product Type
Control Station
DC Contact Rating
0.2 A @ 600 V, 0.55 A @ 240 V, 1.1 A @ 120 V
Operator Configuration
Selector Switch
Hazardous Location Specification
Class II, Div 2, Group G, Class III, Div 1 and 2
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
158 Degrees F
NEMA Enclosure Rating
13, 3, 4
Includes Mechanical Interlock
No Mechanical Interlock Included.
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Selector Switch Number of Positions
3

Description

Selector Switch Control Station, Number of Operators 1, Number of Pilot Lights 0, Size 30 mm, Legend Hand/Off/Auto, Type of Operator Selector Switch, Action Maintained, Operator Color Black, Contact Form 1NO/1NC, Mechanical Interlock No, NEMA Rating 1, 13, 3, 4, Contact Rating 10A @ 600V AC, 2.5A @ 24V DC, NEMA Contact Rating Designation A600/Q600, IP Rating IP66, Mounting Wall, Hub 3/4 in NPT, Height 3.53 in, Width 3.58 in, Depth 4 in, Enclosure Material Zinc, Enclosure Color Gray
