  13. Single function relay, Harmony Timer Relays, 0.7A, 1CO, 0, 1s.100h, on delay, solid state output, 24.240V AC DC

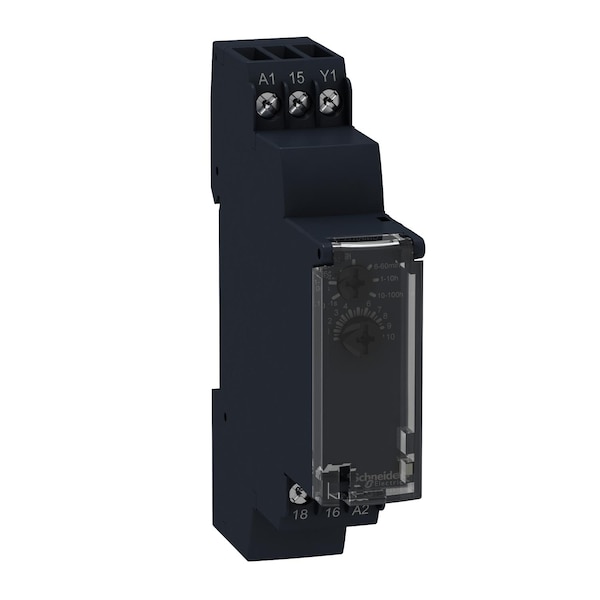

Schneider Electric Single function relay, Harmony Timer Relays, 0.7A, 1CO, 0, 1s.100h, on delay, solid state output, 24.240V AC DC RE17LAMW - main

Single function relay, Harmony Timer Relays, 0.7A, 1CO, 0, 1s.100h, on delay, solid state output, 24.240V AC DC

  • Mfr # RE17LAMW

  • Zoro # G7122821

product price: $58.89
/ea

Key Features

Standards
2004/108/EC || EN 61000-6-1 || 2006/95/EC || EN 61000-6-3 || EN 61000-6-2 || IEC 61812-1 || EN 61000-6-4
Width
17.5 mm
Maximum Voltage Drop
<4 V 3-wire || <8 V 2-wire
Marking
CE
Voltage Range
0.85...1.1 Us
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RE17LAMW
Zoro #
G7122821
UPC #
-
Country of Origin
Indonesia

Dimensions

Width
17.5 mm

Details

Standards
2004/108/EC || EN 61000-6-1 || 2006/95/EC || EN 61000-6-3 || EN 61000-6-2 || IEC 61812-1 || EN 61000-6-4
Item
On-delay,Timer,240V,7A
Maximum Voltage Drop
<4 V 3-wire || <8 V 2-wire
Marking
CE
Voltage Range
0.85...1.1 Us
Minimum Switching Current
10 mA
Functionality
on-delay timing
Operating Rate In Hz
10 Hz
Shock Resistance
15 gn 11 ms IEC 60068-2-27
Supply Frequency
50...60 Hz +/- 5 %
On-Load Factor
1
Control Type
selector switch front panel
Setting Accuracy Of Time Delay
+/- 10 % of full scale 25°C IEC 61812-1
Breaking Capacity
0.5 A AC/DC UL || 0.7 A AC/DC 20°C
Time Delay Range
1...10 s || 10...100 h || 6...60 s || 0.1...1 s || 1...10 min || 6...60 min || 1...10 h
Repeat Accuracy
+/- 0.5 % IEC 61812-1
Ambient Air Temperature For Storage
-30-60°C
Derating Factor
5 mA/°C
Maximum Switching Voltage
250 V AC/DC
[Uimp] Rated Impulse Withstand Voltage
5 kV 1.2/50µs
Reset Time
350 ms on de-energisation typical
Time Delay Type
power on-delay, A
Insulation Resistance
100 MOhm 500 V DC IEC 60664-1
Immunity To Microbreaks
20 ms
Dielectric Strength
2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
Maximum Power Consumption In W
1.5 W 240 V DC
Electrical Durability
100000000 cycles
Electromagnetic Compatibility
electrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2 || electrostatic discharge immunity test 8 kV in air) level 3 IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80 MHz to 1 GHz) level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test 1 kV capacitive connecting clip) level 3 IEC 61000-4-4 || electrical fast transient/burst immunity test 2 kV direct) level 3 IEC 61000-4-4 || 1.2/50µs shock waves immunity test 1 kV differential mode) level 3 IEC 61000-4-5 || 1.2/50µs shock waves immunity test 2 kV common mode) level 3 IEC 61000-4-5 || conducted RF disturbances 10 V 0.15...80 MHz) level 3 IEC 61000-4-6 || voltage dips and interruptions immunity test 0 % 1 cycle) IEC 61000-4-11 || voltage dips and interruptions immunity test 70 % 25/30 cycles) IEC 61000-4-11 || conducted and radiated emissionsclass B EN 55022
[Us] Rated Supply Voltage
24...240 V AC/DC 50/60 Hz
Impulse Duration
0.05 s typical
Connections - Terminals
screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Component Name
RE17L
Temperature Drift
+/- 0.05 %/°C
Power Consumption In Va
0-3 VA 240 V AC
Discrete Output Type
solid state
Voltage Drift
+/- 0.2 %/V
Product Or Component Type
single function relay
Maximum Output Current
20 A
Maximum Leakage Current
5 mA
Ambient Air Temperature For Operation
-20-60°C
Vibration Resistance
20 m/s² 10-150 Hz)IEC 60068-2-6
Compatibility Code
RE17
Mounting Support
35 mm DIN rail conforming to EN/IEC 60715
Maximum Delay Response
100 ms
Relative Humidity
93-93 % without condensation IEC 60068-2-30
Mounting Position
any position in relation to normal vertical mounting plane
Product Certifications
GL || CSA || cULus
Tightening Torque
0.6-1 N.m IEC 60947-1
Housing Material
self-extinguishing
Ip Degree Of Protection
IP20 IEC 60529 terminal block) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)
Nominal Output Current
0.7 A
Creepage Distance
4 kV/3 IEC 60664-1
Range of Product
Harmony Timer Relays

Description

On-delay,Timer,240V,7A
