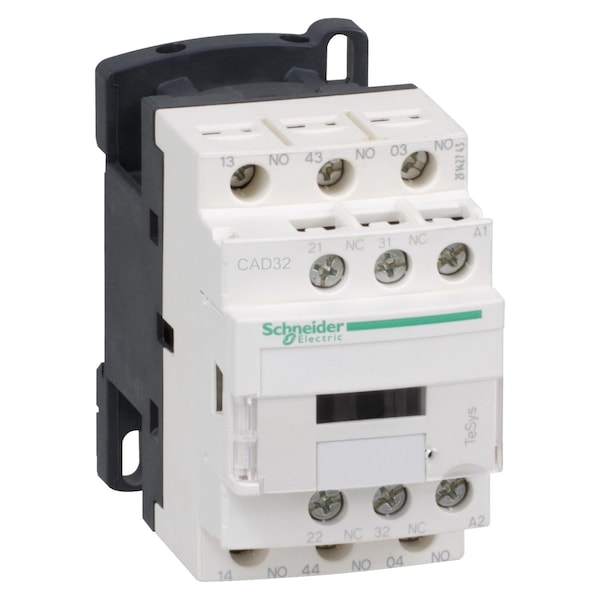

Relay 600V 10Amp Tesys + Options

product price: $68.39
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Coil Volts 600V
  • Width 45 mm
  • Depth 84 mm
  • Standards EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1
  • Height 77 mm
See all product information

Product Information

Dimensions

Width 45 mm
Depth 84 mm
Height 77 mm

Details

Coil Volts 600V
Item Relay 600V 10Amp Tesys + Options
Standards EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1
Protective Treatment TH IEC 60068
Minimum Switching Voltage 17 V
Mechanical Durability 30 Mcycles
[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947
Minimum Switching Current 5 mA
Contactor Application control circuit
Pole Contact Composition 3 NO + 2 NC
Associated Fuse Rating 10 A gG IEC 60947-5-1
Maximum Operating Rate 180 cyc/mn
Control Circuit Voltage Limits 0.3...0.6 Uc -40-70°C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60°C operational AC 50 Hz || 0.85...1.1 Uc -40-60°C operational AC 60 Hz || 1...1.1 Uc 60-70°C operational AC 50/60 Hz
Range TeSys || TeSys Deca
[Uc] Control Circuit Voltage 230 V AC 50/60 Hz
Operating Altitude 0...9842.52 ft (0...3000 m)
Ambient Air Temperature For Operation -40-60°C || 60-70°C with derating
Non-Overlap Time 1.5 ms on energisation between NC and NO contact || 1.5 ms on de-energisation between NC and NO contact
Mechanical Robustness shocks control relay open10 Gn for 11 ms IEC 60068-2-27 || shocks control relay closed15 Gn for 11 ms IEC 60068-2-27 || vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6
[Icw] Rated Short-Time Withstand Current 100 A - 1 s || 120 A - 500 ms || 140 A - 100 ms
[Ui] Rated Insulation Voltage 600 V UL || 600 V CSA || 690 V IEC 60947-5-1
Ambient Air Temperature For Storage -60-80°C
Connections - Terminals screw clamp terminals 1 1-4 mm²flexible without cable end || screw clamp terminals 2 1-4 mm²flexible without cable end || screw clamp terminals 1 1-4 mm²flexible with cable end || screw clamp terminals 2 1-2.5 mm²flexible with cable end || screw clamp terminals 1 1-4 mm²solid without cable end || screw clamp terminals 2 1-4 mm²solid without cable end
Utilisation Category DC-13 || AC-15 || AC-14
Mounting Support rail || plate
Product Or Component Type control relay
Operating Time 12...22 ms coil energisation and NO closing || 4...12 ms coil de-energisation and NO opening || 4...19 ms coil energisation and NC opening || 6...17 ms coil de-energisation and NC closing
Hold-In Power Consumption In Va 8-8 VA 50 Hz 20°C)
[Ue] Rated Operational Voltage <= 690 V AC 25...400 Hz
Irms Rated Making Capacity 140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1
Product Name TeSys CAD
[Ith] Conventional Free Air Thermal Current 10 A 60°C
Tightening Torque 1.2 N.m screw clamp terminals Philips No 2 || 1.2 N.m screw clamp terminals flat Ø 6 mm || 1.2 N.m screw clamp terminals pozidriv No 2
Inrush Power In Va 70-70 VA 50 Hz 20°C)
Device Short Name CAD
Insulation Resistance > 10 MOhm
Product Certifications CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
Control Circuit Type AC 50/60 Hz
Ip Degree Of Protection IP2X front face VDE 0106
