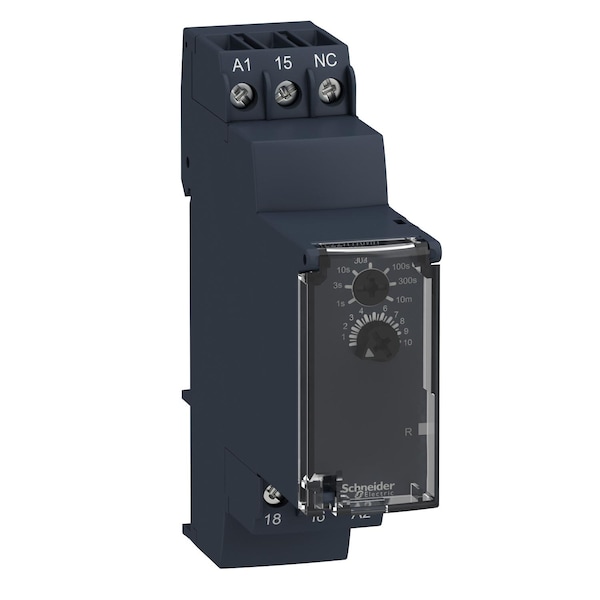

  13. Single function relay, Harmony Timer Relays, 5A, 1 CO, 0.05s.10min, delay on de energization, 24.240V AC DC
Schneider Electric Single function relay, Harmony Timer Relays, 5A, 1 CO, 0.05s.10min, delay on de energization, 24.240V AC DC RE22R1KMR - main

Single function relay, Harmony Timer Relays, 5A, 1 CO, 0.05s.10min, delay on de energization, 24.240V AC DC

  • Mfr # RE22R1KMR

  • Zoro # G5956743

product price: $91.43
/ea
Free Shipping & Returns

Key Features

Delay Function
delay on de-energization
Minimum Time Setting
0.05 sec
Current Rating
5 A
Contact Rating (AC)
5 A at 250 V, AC-1
Contact Rating (DC)
2 A at 24 V, DC-1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RE22R1KMR
Zoro #
G5956743
UPC #
-
Country of Origin
Indonesia

Dimensions

Width
22.5 mm

Details

Item
Time Delay Relay
Delay Function
delay on de-energization
Minimum Time Setting
0.05 sec
Current Rating
5 A
Contact Rating (AC)
5 A at 250 V, AC-1
Contact Rating (DC)
2 A at 24 V, DC-1
Hz
50/60Hz
Type of Output
relay
Number of Functions
1
Standards
UL Listed || CSA|| CE
Input Voltage
250 V AC
Power Consumption - Relay
3-3 VA 240 V AC; 2 W 240 V DC
Adjustment Method - Timer
rotary knob
Input or Control Voltage Range
0.85...1.1 Us
Electrical Connection
35 mm DIN rail conforming to EN/IEC 60715
Immunity To Microbreaks
10 ms
[Us] Rated Supply Voltage
24...240 V AC/DC 50/60 Hz
Repeat Accuracy
+/- 0.5 % IEC 61812-1
Connections - Terminals
screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Setting Accuracy of Time Delay
+/- 10 % of full scale 25°C IEC 61812-1
Power Consumption In Va
3-3 VA 240 V AC
Vibration Resistance
20 m/s² 10-150 Hz)IEC 60068-2-6
Overvoltage Category
III IEC 60664-1
Creepage Distance
4 kV/3 IEC 60664-1
Insulation Resistance
100 MOhm 500 V DC IEC 60664-1
Status Led
Green LED backlight steady)dial pointer indication, Yellow LED steady)output relay energised, Yellow LED steady)power ON
Shock Resistance
15 gn not operating 11 ms IEC 60068-2-27, 5 gn in operation 11 ms IEC 60068-2-27
Minimum Switching Current
10 mA 5 V DC
Mounting Position
any position
Tightening Torque
0.6-1 N.m IEC 60947-1
Electromagnetic Compatibility
fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4, surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3, conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6, fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4, immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11
Relative Humidity
95-95 % 25-55°C
Ambient Air Temperature For Storage
-40-70°C
Power Consumption In W
2 W 240 V DC
Pollution Degree
3 IEC 60664-1
Device Short Name
RE22
Maximum Switching Current
5A
Voltage Drift
+/- 0.2 %/V
Reset Time
100 ms on de-energisation
Range of Product
Harmony Timer Relays
Switching Capacity In Va
1250 VA
Mechanical Durability
10000000 cycles
Nominal Output Current
5A
Dielectric Strength
2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1
Maximum Delay Response
350 ms
Supply Frequency
50...60 Hz +/- 5 %
Mounting Support
35 mm DIN rail conforming to IEC 60715
Ambient Air Temperature For Operation
-20-60°C
[Uimp] Rated Impulse Withstand Voltage
5 kV 1.2-50µs IEC 60664-1
Ip Degree of Protection
IP40 housing: conforming to IEC 60529, IP50 front face: conforming to IEC 60529, IP20 terminals: conforming to IEC 60529
Temperature Drift
+/- 0.05 %/°C
Electrical Durability
100000 cycles, 2 A at 24 V, DC-1, 100000 cycles, 5 A at 250 V, AC-1
Housing Material
self-extinguishing

Description

Timer,24-240VAC/VDC,In8A,Spdt Outde-en
