Shop SCHNEIDER ELECTRIC

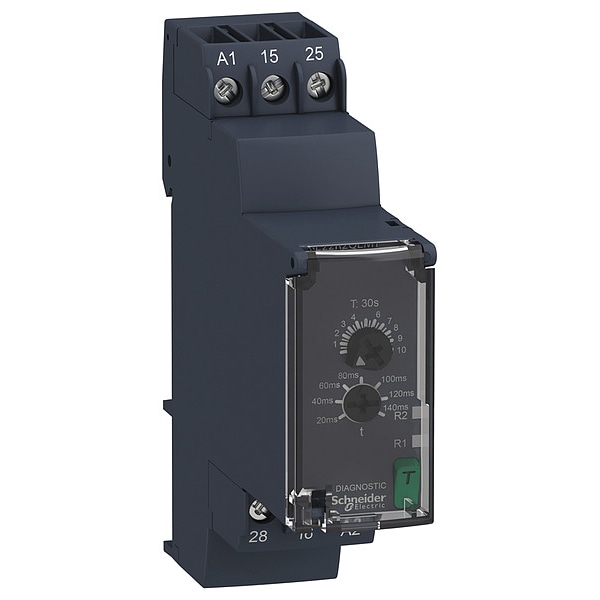

Time Delay Relay, Square, Star-Delta, 2 Functions 415V AC, DPDT

  • Mfr # RE22R2QEMT

  • Zoro # G3463547

product price:
$
64.69
/ea

Key Features

Delay Function
Star-Delta
Number of Delay Functions
2
Minimum Time Setting
0.3 sec
Maximum Time Setting
30 sec
Base Shape
Square
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
RE22R2QEMT
Zoro #
G3463547
UPC #
785901476740
Country of Origin
Indonesia
Item
Time Delay Relay
Delay Function
Star-Delta
Number of Delay Functions
2
Minimum Time Setting
0.3 sec
Maximum Time Setting
30 sec
Base Shape
Square
Number of Pins
6
Coil Voltage
415V AC
Current Rating
8 A
Contact Form
DPDT
Contact Rating (AC)
8 A @ 250V
Contact Rating (DC)
8 A @ 24V
Input Voltage
380 to 415V AC
Electrical Connection
Screw Terminal
Standards
IEC 61812-1, UL 508
Contact Material
Cadmium Free
Adjustment Method
Diagnostic Button, Rotary Dip Switch
Status Indicator
LED
Type of Output
relay
Input or Control Voltage Range
0.85...1.16 Us
Maximum Operating Temperature
140 Degrees F
Weight
3.2 oz
Power Consumption
15 VA
IP Rating
IP20; IP40; IP50
Maximum Switching Voltage
250V AC
Mechanical Operating Durability
10,000,000
Mounting Style
DIN Rail
Operating Time Accuracy
+/-0.5%
Electrical Operating Durability
100,000
Frequency
50/60 Hz
Minimum Operating Temperature
-4 Degrees F
Sealing
Sealed

Description

Time Delay Relay, Adjustment Method Diagnostic Button, Rotary Dip Switch, Base Shape Square, Coil Voltage 415V AC, Contact Form DPDT, Contact Rating (AC) 8 A @ 250V, Contact Rating (DC) 8 A @ 24V, Current Rating 8 A, Number of Delay Functions 2, Delay Function Star-Delta, Electrical Connection Screw Terminal, IP Rating IP20; IP40; IP50, Input Voltage 380 to 415V AC, Minimum Time Setting 0.3 sec, Maximum Time Setting 30 sec, Number of Pins 6, Sealing Sealed, Mounting Style DIN Rail
