  13. Socket, Enclosed Power Relay, Square, 25 A, 6 Pins, Quick Connect

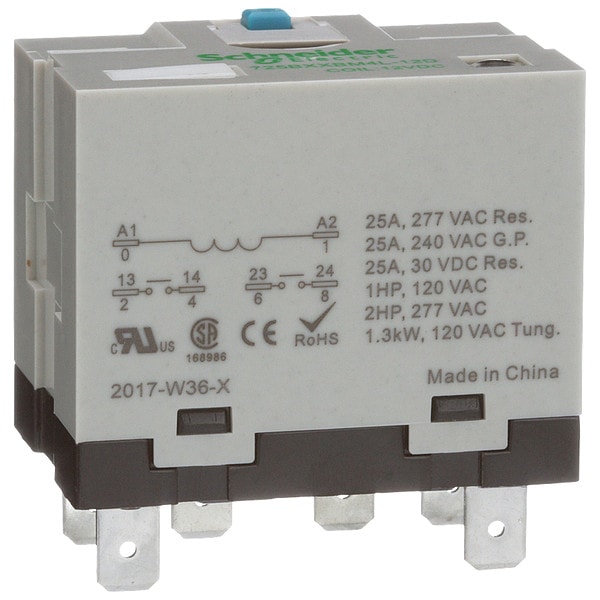

Schneider Electric Socket, Enclosed Power Relay, Square, 25 A, 6 Pins, Quick Connect 725BXXBM4L-12D - main

CAD Viewer & Download Files

Socket, Enclosed Power Relay, Square, 25 A, 6 Pins, Quick Connect

  • Mfr # 725BXXBM4L-12D

  • Zoro # G1672054

CAD Available
product price: $19.65
/ea

Key Features

CAD Drawing
Mounting Style
Socket
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
6
Coil Voltage
12V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
725BXXBM4L-12D
Zoro #
G1672054
UPC #
-
Country of Origin
China

Dimensions

Dimensions
2.00"H, 1.97"W, 1.30"D
Overall Height - Relay
2.0 in
Flat Pin Width
0.25 in
Overall Depth
2.02 in
Body Depth
1.3 in
Body Height
2 in
Body Width
1.97 in
Depth
2.09 in (53.05 mm)
Width
1.30 in (33.1 mm)

Details

Item
Enclosed Power Relay
Mounting Style
Socket
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
6
Coil Voltage
12V DC
Current Rating
25 A
Contact Form
DPST-NO
Contact Rating (AC)
25 A @ 240/277V
Contact Rating (DC)
25 A @ 28/30V
Hz
50/60
Contact Material
Silver Alloy
Number of Poles
2
Features
2hp @ 277V AC, LED & Button
Standards
CE Certified, CSA Certified, IEC 60947-1, UL60947-4-1A
Contact Amp Rating (Resistive)
25A @ 277VAC/30VDC
Power Consumption - Relay
2.5 W
Coil Rating
2.5VA, 1.9W
Maximum Switching Voltage
240V, 277V
Series
Harmony(TM) 725 Power Series
Dielectric Strength
2,000V AC Between Poles, 4,000V AC Between Coil and Contact
Electrical Operating Durability
100,000
Response Time
30 msec
Minimum Operating Temperature
-4 Degrees F
Horsepower @ 240V AC
2 hp
Power Consumption
1.9 W
Motor Rated
Yes
Push-To-Test Method
Lockable Push Test Button
IP Rating
IP40
Operating Current
25 A at 240V AC (General Purpose), 25 A at 240V AC (Resistive Load), 25 A at 277V AC (Resistive Load), 25 A at 28V DC (Resistive Load), 25 A at 30V DC (Resistive Load)
Frequency
50/60 Hz
Status Indicator
LED and Mechanical Flag
Coil Resistance
75 ohm
Input Voltage
9.6 to 13.2V DC
Weight
4.23 oz
Horsepower @ 120V AC
1 hp
Minimum Switching Current
100 mA
Socket Code
M
Mechanical Operating Durability
5,000,000
Maximum Operating Temperature
131 Degrees F
CAD Available
Yes
Product Certifications
UL; CSA; CE
Average Coil Consumption
1.90 W
Connections - terminals
Quick-connect terminal strips 6.35 x 0.8 mm
Rated Power in HP
1 hp 120 V AC; 2 hp 277 V AC
Product Range
Harmony Electromechanical Relays
Ambient Air Temperature for Storage
-67 to 212°F (-55 to 100°C)
Control Type
Lockable test button
Series name
Power
Rated power in W
1.3 kW 120 V tungsten
Nominal input voltage
9.6...13.2 V DC
ambient temperature range - operational
-4 to 131°F (-20 to 55°C)
Contact Composition
2 NO

Description

Enclosed Power Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form DPST-NO, Current Rating 25 A, Electrical Connection Quick-Connect, Flat Pin Width 0.25 in, Number of Pins 6, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 25 A @ 240/277V, Contact Rating (DC) 25 A @ 28/30V, Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 2 hp, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 2.09 in, Body Height 1.3 in, Body Width 1.97 in, Coil Resistance 75 ohm
