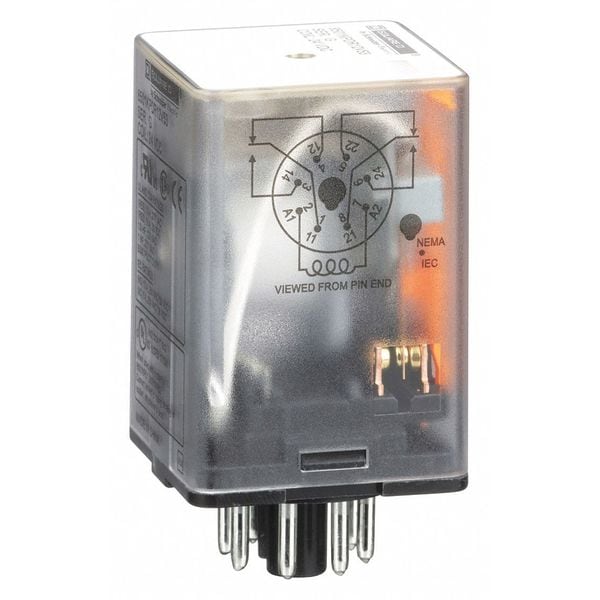

Schneider Electric Socket, General Purpose Relay, Octal, 10 A, 8 Pins, Pin 8501KPDR12V53 - main

CAD Drawings

Download CAD Files

Socket, General Purpose Relay, Octal, 10 A, 8 Pins, Pin

  • Mfr # 8501KPDR12V53

  • Zoro # G1943952

CAD Available
product price: $61.69
/ea

Key Features

CAD Drawing
Mounting Style
Socket
Electrical Connection
Pin
Base Shape
Octal
Number of Pins
8
Coil Voltage
24V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8501KPDR12V53
Zoro #
G1943952
UPC #
785901278177
Country of Origin
China

Dimensions

Overall Height - Relay
2.6 in
Body Depth
2.1 in
Overall Depth
2.7 in
Body Width
1.4 in
Body Height
1.4 in
Depth
1.4 in (35.56 mm)
Width
1.4 in (35.56 mm)

Details

Item
General Purpose Relay
Mounting Style
Socket
Electrical Connection
Pin
Base Shape
Octal
Number of Pins
8
Coil Voltage
24V DC
Current Rating
10 A
Contact Form
DPDT
Contact Rating (AC)
10 A @ 277V
Contact Rating (DC)
10 A @ 28V
Green Environmental Attribute
RoHS 2011/65/EU Compliant
HP @ 240V
1/2 hp
Contact Material
Silver Alloy
Socket
Mfr. No. 8501NR51 or 8501NR52
Status Indicator
Mechanical Flag
Standards
CE Certified, CSA Certified, UL Listed
HP @ 120V
1/3 hp
Power Consumption - Relay
1.4 W
Socket Code
A
Pin Shape
Round
Maximum Switching Voltage
300V AC, 30V DC
Compatible with Manufacturer Model Number
8501NR51, 8501NR52
Minimum Operating Temperature
-40 Degrees F
Power Consumption
1.4 W
Motor Rated
Yes
Maximum Operating Temperature
131 Degrees F
Push-To-Test Method
No Test Button
Horsepower @ 120V AC
1/3 hp
Horsepower @ 240V AC
1/2 hp
Sealing
Enclosed
Series
Square D 8501K Series
Response Time
20 msec
Compatible Manufacturer Part Number
8501NR51, 8501NR52
Compatible Manufacturer Model Number
8501NR51, 8501NR52
Pilot Light
No indicator
Operating Time
20 ms - pick-up || 20 ms - drop-out
For Use With
8501NR52; 8501NR51
Control Circuit Voltage
24 V DC
Product Certifications
UL Listed; UL Recognized; CSA; CE
Breaking Capacity
3 A 120 V AC inductive control circuit UL 508; 1.5 A 240 V AC inductive control circuit UL 508; 10 A 277 V AC resistive control circuit UL 508; 10 A 30 V DC resistive control circuit UL 508
Manual Operator
Without test button
Shape Of Pins
Tubular
Switching Voltage
300 V AC; 30 V DC
Ambient Temperature Range - Operational
-40 to 131°F (-40 to 55°C)
CAD Available
Yes

Description

General Purpose Relay, Base Shape Octal, Coil Voltage 24V DC, Contact Form DPDT, Current Rating 10 A, Electrical Connection 8-Pin Terminal, Flat Pin Width Not Applicable, Number of Pins 8, Pin Shape Round, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Socket, Push-To-Test Method No Button, Body Depth 2.1 in, Body Height 1.4 in, Body Width 1.4 in
