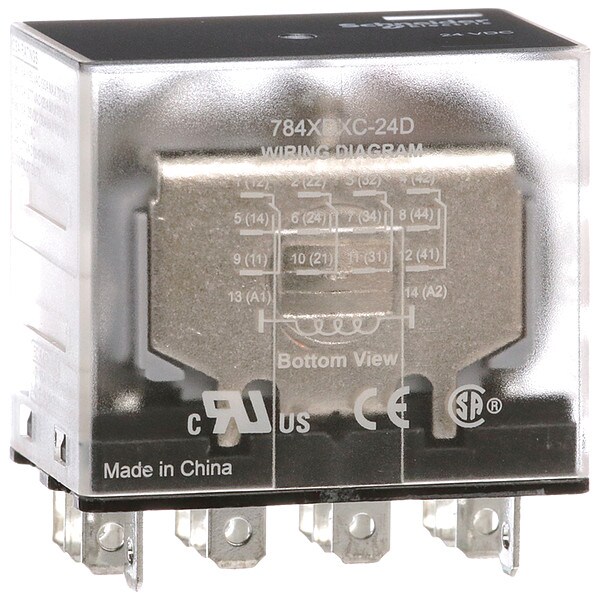

Schneider Electric Socket, General Purpose Relay, Square, 15 A, 14 Pins, Faston Connector 784XDXC-24D - main

Socket, General Purpose Relay, Square, 15 A, 14 Pins, Faston Connector

  • Mfr # 784XDXC-24D

  • Zoro # G0574551

product price:  $17.55
/ea

Key Features

Mounting Style
Socket
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
14
Coil Voltage
24V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
784XDXC-24D
Zoro #
G0574551
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.64 in
Flat Pin Width
0.187 in
Body Width
1.6 in
Body Depth
1.37 in
Body Height
1.07 in
Overall Depth
1.66 in
Depth
1.07 in (27.3 mm)
Width
1.60 in (40.6 mm)

Details

Item
General Purpose Relay
Mounting Style
Socket
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
14
Coil Voltage
24V DC
Current Rating
15 A
Contact Form
4PDT
Contact Rating (AC)
10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V
Contact Rating (DC)
15 A @ 28V (NO), 7.55 A @ 28V (NC)
Socket Code
F
Status Indicator
Mechanical Flag
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Standards
CE Certified, CSA Certified, UL Listed
Features
Gold Flashed Contacts
Power Consumption - Relay
1.5 W
Socket
Mfr. No. 70-784D14-1
Contact Material
Gold Flashed Silver Alloy
Power Consumption
1.6 W, 2.5 VA
Maximum Switching Voltage
250V AC, 300V DC
Input Voltage
24V DC
Motor Rated
Yes
Horsepower @ 120V AC
1/2 hp
Series
784 Series
Frequency
50/60 Hz
Minimum Switching Current
10 mA
For Use With
Automation Panels and Controls
Dielectric Strength
1,500V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
Operating Current
10 A at 151/277V, 15 A at 120 to 277V, 15 A at 120/150V, 15 A at 250V, 15 A at 28V, 15 A at 28V (NO), 7.55 A at 250V (NC), 7.55 A at 28V (NC)
Maximum Operating Temperature
131 Degrees F
Response Time
20 msec
Horsepower @ 240V AC
3/4 hp
Resistance Properties
Shock-Resistant, Vibration-Resistant
Weight
2.5 oz
Mechanical Operating Durability
10,000,000
Push-To-Test Method
No Button
IP Rating
IP40
Coil Resistance
303 ohm
Electrical Operating Durability
100,000
Minimum Operating Temperature
-40 Degrees F
Contact Composition
4 NO + 4 NC
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Power consumption in W
1.6 W DC
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Operating Time
20 ms operating; 20 ms tripping
Motor Power HP
0.5 hp 120 V AC 50/60 Hz; 1 hp 277 V AC 50/60 Hz
Shock Resistance
15 gn in operation
Product Certifications
UL; CE; CSA
Voltage Range
0.8...1.1 Un AC/DC
Product Range
Legacy
Power consumption in VA
2.5 VA AC
Vibration Resistance
+/- 1 mm 10 to 35 Hz); 3 gn 35 to 150 Hz)
Connections Terminals
Faston terminals

Description

General Purpose Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form 4PDT, Current Rating 15 A, Electrical Connection Faston Terminal, Flat Pin Width 0.187 in, Number of Pins 14, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V, Contact Rating (DC) 15 A @ 28V (NO), 7.55 A @ 28V (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 3/4 hp, Mounting Style Socket, Push-To-Test Method No Button, Body Depth 1.37 in
