  11. Soft Start, 110-460VAC, 6A, 1 or 3-Phase

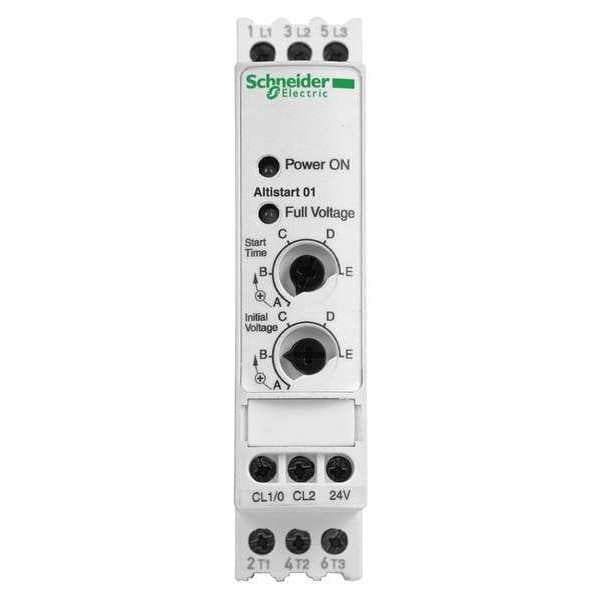

Schneider Electric Soft Start, 110-460VAC, 6A, 1 or 3-Phase ATS01N106FT - main

Soft Start, 110-460VAC, 6A, 1 or 3-Phase

  • Mfr # ATS01N106FT

  • Zoro # G3520133

product price: $139.99
/ea
Free Shipping & Returns

Key Features

Height
3.94 in
IP Rating
20
With Bypass / No Bypass
With Bypass
Ramp Time
1 to 5 sec.
HP @ 1 Phase - 240V
1/2 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATS01N106FT
Zoro #
G3520133
UPC #
785901416937
Country of Origin
Germany

Dimensions

Height
3.94 in
Depth
3.95 in
Width
0.9 in
Overall Height
3.94 in
Overall Depth
3.94 in
Overall Width
0.91 in

Details

IP Rating
20
With Bypass / No Bypass
With Bypass
Ramp Time
1 to 5 sec.
HP @ 1 Phase - 240V
1/2 hp
HP @ 1 Phase - 208V
1/2 hp
Phase
Single
Output Voltage
110 to 480V AC
Item
Soft Start
Output Current
6 A
Starting Torque
30% to 80%
HP @ 1 Phase - 120V
1/4 hp
Display
None
Standards
ASME A17.5, B44.1-96, C-tick, CCC, CSA Certified, EN/IEC 60947-4-2, GOST, UL Listed
Control Voltage
110V AC, 240V AC, 24V DC
HP @ 3 Phase - 240V
1/2 hp
Input Voltage
110 to 480V AC
HP @ 3 Phase - 208V
1 hp
Start Type
Voltage Ramp Start
HP @ 3 Phase - 480V
2 to 3
Enclosure Rating
IP20, NEMA 1
Includes
LED display two: "Power ON" and "Full Voltage" (up to speed)
Application
Asynchronous Motors
HP @ 3 Phase - 230V
1/2
HP @ 3 Phase - 460V
2 to 3
HP @ 1 Phase - 230V
1/2
Output Power
0.5 hp @ 3 Phase, 210V AC, 1 hp @ 3 Phase, 230V AC, 1.5 hp @ 3 Phase, 230V AC, 2 hp @ 3 Phase, 460V AC, 3 hp @ 3 Phase, 460V AC
Frequency
50/60 Hz
Type
Dial Control

Description

Soft Start, Input Voltage 110 to 480V AC, Output Current 6 A, Output Voltage 110 to 480V AC, 0.5 hp @ 3 Phase, 210V AC, 1 hp @ 3 Phase, 230V AC, 1.5 hp @ 3 Phase, 230V AC, 2 hp @ 3 Phase, 460V AC, 3 hp @ 3 Phase, 460V AC, Control Voltage 110V AC, 240V AC, 24V DC, IP20, NEMA 1
