  11. Soft Start, 110-460VAC, 9A, 1 or 3-Phase

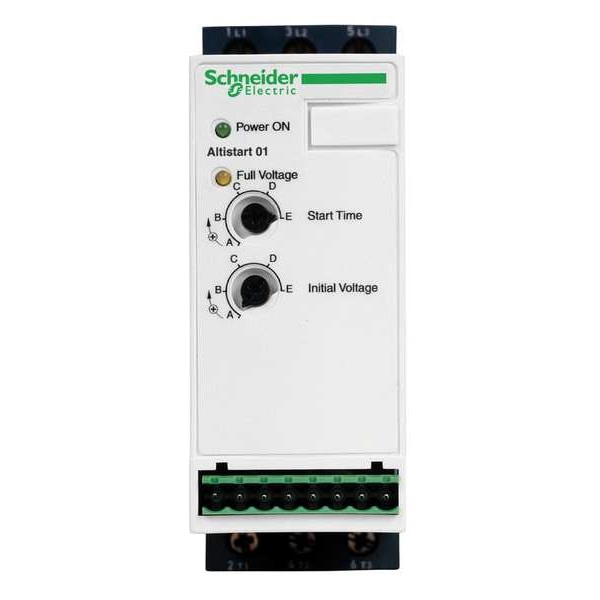

Schneider Electric Soft Start, 110-460VAC, 9A, 1 or 3-Phase ATS01N109FT - main

Soft Start, 110-460VAC, 9A, 1 or 3-Phase

  • Mfr # ATS01N109FT

  • Zoro # G3556533

product price: $159.99
/ea
Free Shipping & Returns

Key Features

Start Type
Voltage Ramp Start
HP @ 1 Phase - 240V
1 hp
Starting Torque
30% to 80%
HP @ 1 Phase - 208V
1 hp
Display
None
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATS01N109FT
Zoro #
G3556533
UPC #
785901620761
Country of Origin
Germany

Dimensions

Height
4.88 in
Width
1.77 in
Depth
4.44 in
Overall Depth
5.16 in
Overall Width
1.77 in
Overall Height
4.88 in

Details

Start Type
Voltage Ramp Start
HP @ 1 Phase - 240V
1 hp
Starting Torque
30% to 80%
HP @ 1 Phase - 208V
1 hp
Display
None
Item
Soft Start
Standards
ASME A17.5, B44.1-96, C-tick, CCC, CSA Certified, EN/IEC 60947-4-2, GOST, UL Listed
Output Current
9 A
Application
Asynchronous Motors
Input Voltage
110 to 480V AC
HP @ 3 Phase - 480V
5
Ramp Time
1 to 5 sec.
Control Voltage
110V AC, 240V AC, 24V DC
With Bypass / No Bypass
With Bypass
Output Voltage
110 to 480V AC
Phase
Single
HP @ 1 Phase - 120V
1/3 hp
IP Rating
20
Enclosure Rating
IP20, NEMA 1
HP @ 3 Phase - 240V
2 hp
Includes
LED display two: "Power ON" and "Full Voltage" (up to speed)
HP @ 3 Phase - 208V
2 hp
HP @ 3 Phase - 460V
5
HP @ 3 Phase - 230V
2
HP @ 1 Phase - 230V
1
Output Power
1 hp @ 3 Phase, 210V AC, 2 hp @ 3 Phase, 230V AC, 5 hp @ 3 Phase, 460V AC
Frequency
50/60 Hz
Type
Dial Control

Description

Soft Start, Input Voltage 110 to 480V AC, Output Current 9 A, Output Voltage 110 to 480V AC, 1 hp @ 3 Phase, 210V AC, 2 hp @ 3 Phase, 230V AC, 5 hp @ 3 Phase, 460V AC, Control Voltage 110V AC, 240V AC, 24V DC, IP20, NEMA 1
