  6. Soft Start, 208-600VAC, 32A, 3 Phase

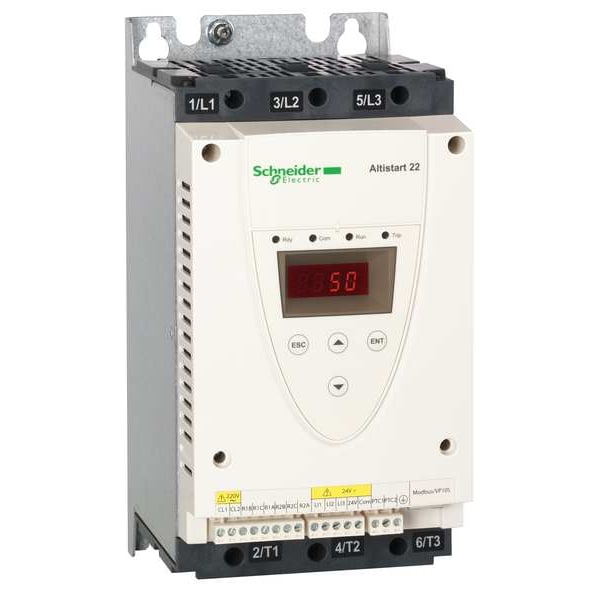

Schneider Electric Soft Start, 208-600VAC, 32A, 3 Phase ATS22D32S6U - main

Soft Start, 208-600VAC, 32A, 3 Phase

  • Mfr # ATS22D32S6U

  • Zoro # G3536811

product price:  $989.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
208 to 600V AC
Output Current
32 A
Frequency
50/60 Hz
Phase
Three
Output Voltage
208 to 600V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ATS22D32S6U
Zoro #
G3536811
UPC #
785901687399
Country of Origin
Indonesia

Dimensions

Width
5.1 in
Depth
6.6 in
Height
9.8 in
Overall Height
10.43 in
Overall Depth
6.65 in
Overall Width
5.12 in

Details

Input Voltage
208 to 600V AC
Output Current
32 A
Frequency
50/60 Hz
Phase
Three
Output Voltage
208 to 600V AC
Control Voltage
110V AC
With Bypass / No Bypass
With Bypass
Enclosure Rating
IP20, NEMA 1
Display
4 LED (Ready, Communication, Run and Trip)
Ramp Time
0 to 20 Sec., 0 to 40 Sec.
Stop Time
0 to 10 sec, 1 to 60 sec
Communication Port
Modbus
Start Type
Torque Control Start
HP @ 3 Phase - 575V
25 hp
HP @ 3 Phase - 480V
20
Inputs/Outputs
3 Logic Inputs, 1 PTC Probe Analog Input, 2 (NC/NO) Relay Outputs
HP @ 3 Phase - 240V
10 hp
Application
Fans, Pumps
Item
Soft Start
IP Rating
20
Standards
C-tick, CCC, CSA Certified, EN/IEC 60947-4-2, GOST, UL Listed
HP @ 3 Phase - 208V
7 1/2 hp
HP @ 3 Phase - 230V
10
HP @ 3 Phase - 460V
20
Protects
Phase Failure Line, Thermal Protection Motor, Thermal Protection Starter
Output Power
10 hp @ 3 Phase, 230V AC, 20 hp @ 3 Phase, 460V AC, 25 hp @ 3 Phase, 575V AC, 7.5 hp @ 3 Phase, 208V AC
Function Type
Start or Stop
Type
Integrated Bypass, Keypad Control

Description

Soft Start, Input Voltage 208 to 600V AC, Output Current 32 A, Output Voltage 208 to 600V AC, 10 hp @ 3 Phase, 230V AC, 20 hp @ 3 Phase, 460V AC, 25 hp @ 3 Phase, 575V AC, 7.5 hp @ 3 Phase, 208V AC, Control Voltage 110V AC, IP20, NEMA 1
