  11. Soft Start, 208-600VAC, 75A, 3 Phase

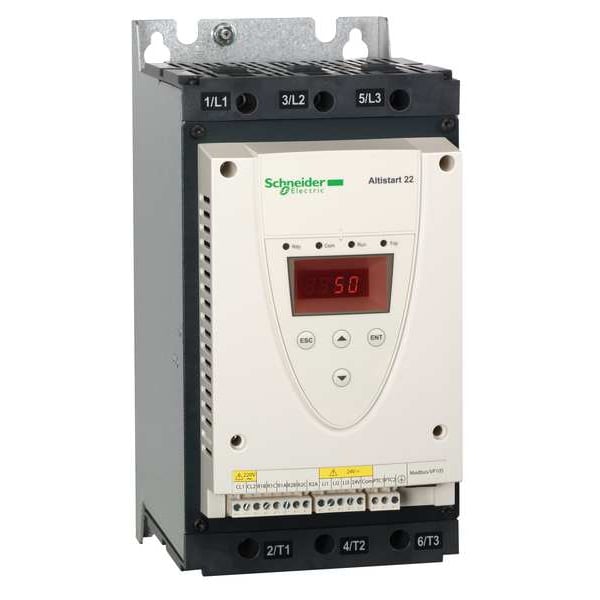

Schneider Electric Soft Start, 208-600VAC, 75A, 3 Phase ATS22D75S6U - main

Soft Start, 208-600VAC, 75A, 3 Phase

  • Mfr # ATS22D75S6U

  • Zoro # G3538437

product price: $1,639.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
208 to 600V AC
Output Current
75 A
Frequency
50/60 Hz
Phase
Three
Output Voltage
208 to 600V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATS22D75S6U
Zoro #
G3538437
UPC #
785901692478
Country of Origin
Indonesia

Dimensions

Width
5.7 in
Depth
8.1 in
Height
10.9 in
Overall Depth
8.15 in
Overall Height
11.61 in
Overall Width
5.71 in

Details

Input Voltage
208 to 600V AC
Output Current
75 A
Frequency
50/60 Hz
Phase
Three
Output Voltage
208 to 600V AC
Control Voltage
110V AC
With Bypass / No Bypass
With Bypass
Enclosure Rating
IP20, NEMA 1
Display
4 LED (Ready, Communication, Run and Trip)
Ramp Time
0 to 20 Sec., 0 to 40 Sec.
Stop Time
0 to 10 sec, 1 to 60 sec
Communication Port
Modbus
Start Type
Torque Control Start
Standards
C-tick, CCC, CSA Certified, EN/IEC 60947-4-2, GOST, UL Listed
HP @ 3 Phase - 575V
60 hp
Inputs/Outputs
3 Logic Inputs, 1 PTC Probe Analog Input, 2 (NC/NO) Relay Outputs
IP Rating
20
HP @ 3 Phase - 208V
20 hp
HP @ 3 Phase - 240V
25 hp
Item
Soft Start
HP @ 3 Phase - 480V
50
Application
Fans, Pumps
HP @ 3 Phase - 230V
25
HP @ 3 Phase - 460V
50
Output Power
20 hp @ 3 Phase, 208V AC, 25 hp @ 3 Phase, 230V AC, 50 hp @ 3 Phase, 460V AC, 60 hp @ 3 Phase, 575V AC
Protects
Phase Failure Line, Thermal Protection Motor, Thermal Protection Starter
Function Type
Start or Stop
Type
Integrated Bypass, Keypad Control

Description

Soft Start, Input Voltage 208 to 600V AC, Output Current 75 A, Output Voltage 208 to 600V AC, 20 hp @ 3 Phase, 208V AC, 25 hp @ 3 Phase, 230V AC, 50 hp @ 3 Phase, 460V AC, 60 hp @ 3 Phase, 575V AC, Control Voltage 110V AC, IP20, NEMA 1
