  13. Surface, Open Power Relay, Octal, 40 A, 8 Pins, Screw

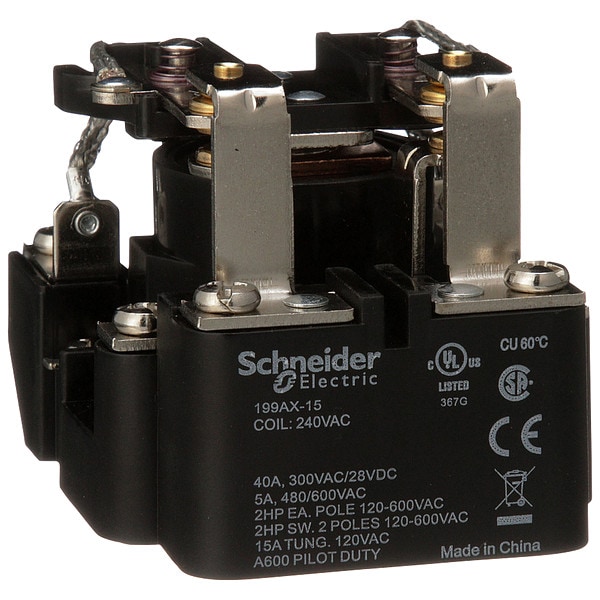

Schneider Electric Surface, Open Power Relay, Octal, 40 A, 8 Pins, Screw 199AX-15 - main

CAD Drawings

Download CAD Files

Surface, Open Power Relay, Octal, 40 A, 8 Pins, Screw

  • Mfr # 199AX-15

  • Zoro # G0608657

CAD Available
product price: $51.39
/ea

Key Features

CAD Drawing
Mounting Style
Surface
Electrical Connection
Screw
Base Shape
Octal
Number of Pins
8
Coil Voltage
240V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
199AX-15
Zoro #
G0608657
UPC #
-
Country of Origin
China

Dimensions

Dimensions
2.31"H, 2.50"W, 3.12"D
Overall Height - Relay
2.31 in
Body Height
2.31 in
Overall Depth
2.31 in
Body Width
2.5 in
Body Depth
3.12 in

Details

Item
Open Power Relay
Mounting Style
Surface
Electrical Connection
Screw
Base Shape
Octal
Number of Pins
8
Coil Voltage
240V AC
Current Rating
40 A
Contact Form
DPDT
Contact Rating (AC)
15 A @ 120V, 40 A @ 300V, 5 A @ 480/600V
Contact Rating (DC)
40 A @ 28V
Contact Material
Silver Alloy
Power Consumption - Relay
10.0 VA
Coil Rating
10.0VA, 4.0W
Number of Poles
2
Features
Riveted Construction
Contact Amp Rating (Resistive)
40A @ 300VAC/28VDC
Standards
CE Certified, CSA Certified, UL Listed
Hz
50/60
Input Voltage
240V AC
Horsepower @ 120V AC
2 hp
Dielectric Strength
1,500V AC Between Open Contacts, 2,200V AC Between Coil and Contact, 2,200V AC Between Poles
Operating Current
15 A at 120V AC (Tungsten Filament), 40 A at 28V DC (Resistive Load), 40 A at 300V AC (Resistive Load), 5 A at 480V AC (Resistive Load), 5 A at 600V AC (Resistive Load)
Power Consumption
4 W, 10 VA
Horsepower @ 240V AC
2 hp
Series
199 Power Series
Coil Resistance
1,200 ohm
Sealing
Open
Frequency
50/60 Hz
Maximum Operating Temperature
131 Degrees F
Motor Rated
Yes
Maximum Switching Voltage
600V AC
Minimum Switching Current
1,000 mA
Weight
0.6
Minimum Operating Temperature
-67 Degrees F
Electrical Operating Durability
50,000
Response Time
30 msec
CAD Available
Yes
Power consumption in W
4 W DC
Power consumption in VA
10 VA AC
Drop-out Voltage Threshold
>= 0.1 Uc AC/DC
Contact Composition
2 C/O
Ambient Air Temperature for Operation
-67 to 131°F (-55 to 55°C)
Cover Type
Open cover
Product Certifications
UL Listed; CSA; CE
Rated Operational Voltage
6...600 V AC 50-60 Hz; 6...250 V DC
Wire Range
AWG 14
Terminal Tightening Torque
10.62 to 15.05 lbf.in (1.2 to 1.7 N.m)
Motor Power HP
2 hp 120...600 V AC 50/60 Hz
Ambient Air Temperature for Storage
-67 to 212°F (-55 to 100°C)
Voltage Range
0.85...1.1 Un AC/DC
Status Indicator
No Indicator

Description

Open Power Relay, Base Shape Octal, Coil Voltage 240V AC, Contact Form DPDT, Current Rating 40 A, Electrical Connection Screw Terminal, Number of Pins 8, Sealing Open, Status Indicator No Indicator, Contact Rating (AC) 15 A @ 120V, 40 A @ 300V, 5 A @ 480/600V, Contact Rating (DC) 40 A @ 28V, Horsepower @ 120V AC 2 hp, Horsepower @ 240V AC 2 hp, Mounting Style Surface, Body Depth 3.13 in, Body Height 3.13 in, Body Width 2.5 in, Coil Resistance 1,200 ohm, Contact Material Silver Alloy
