Shop SCHNEIDER ELECTRIC

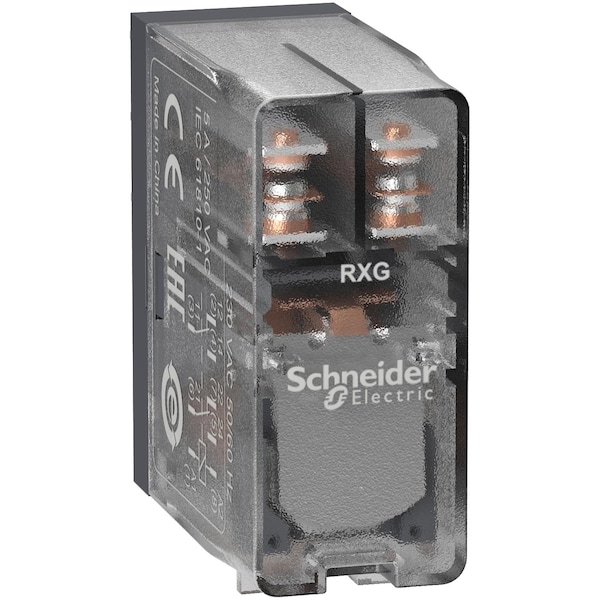

Interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, clear cover, 230V AC

  • Mfr # RXG25P7

  • Zoro # G1984937

product price:
$
11.29
/ea
Sold in multiples of 10 for $112.90

Key Features

Electrical Connection
Pin
Coil Voltage
230V AC
Current Rating
5A
Contact Rating (AC)
10 A @ 250V
Contact Rating (DC)
10 A @ 30V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
RXG25P7
Zoro #
G1984937
UPC #
-
Country of Origin
China
Item
Relay,2CO 5A@250VAC,230VAC,Coil Clear
Electrical Connection
Pin
Coil Voltage
230V AC
Current Rating
5A
Contact Rating (AC)
10 A @ 250V
Contact Rating (DC)
10 A @ 30V
Features
Insulation Class F
Standards
CSA C22.2 No 14; IEC 61810-1; UL 508; CSA; EAC; UL; CE; DNV-GL
Power Consumption - Relay
0.82VA
Contact Material
Silver Alloy (AgSnO2In2O3)
Switching Voltage
250 V AC || 30 V DC
Coil Resistance
23500 Ohm +/- 15 %
Dielectric Voltage
1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation || 3000 V AC between poles with basic insulation
Operating Temp. Range
-40-70°C
Protection Category
RT I
Maximum Switching Capacity
1250 VA
Minimum Switching Capacity
50 mW at 10 mA, 5 V DC
Ip Degree of Protection
IP40
[Ithe] Conventional Enclosed Thermal Current
5 A -40-55°C
Series Name
interface relay
Torque Value
0.8 N.m
Device Short Name
RXG
Vibration Resistance
3 gn +/- 0.75 mm 10-150 Hz)in operation, 5 gn +/- 0.75 mm 10-150 Hz)not in operation
Insulation Resistance
1000 MOhm at 500 V DC
Control Circuit Voltage Limits
0.8...1.1 Uc AC
Load Current
5 A 250 V AC
Average Consumption
0.82 VA 60 Hz
Test Levels
level A group mounting
Device Presentation
complete product
Drop-Out Voltage Threshold
>= 0.3 Uc AC
Mechanical Durability
10000000 cycles
Overvoltage Category
III
Ambient Air Temperature For Storage
-40-85°C
Relative Humidity
10-85 %
Electrical Durability
100000 cycles NO resistive at 55°C, 100000 cycles NC resistive at 55°C
Pollution Degree
2
Operating Rate
<= 1800 cycles/hour under load, <= 18000 cycles/hour no-load
Ambient Air Temperature For Operation
-40-70°C
[Ui] Rated Insulation Voltage
250 V IEC, 300 V CSA, 300 V UL
Shock Resistance
20 gn in operation, 100 gn not in operation
Colour of Cover
transparent
Utilisation Coefficient
0.2
Contact Form
DPDT
Number of Pins
8
Mounting Style
Plug In
Base Shape
Square

Description

Relay,2CO 5A@250VAC,230VAC,Coil Clear
