  13. Surface, Open Power Relay, Octal, 40 A, 8, Screw

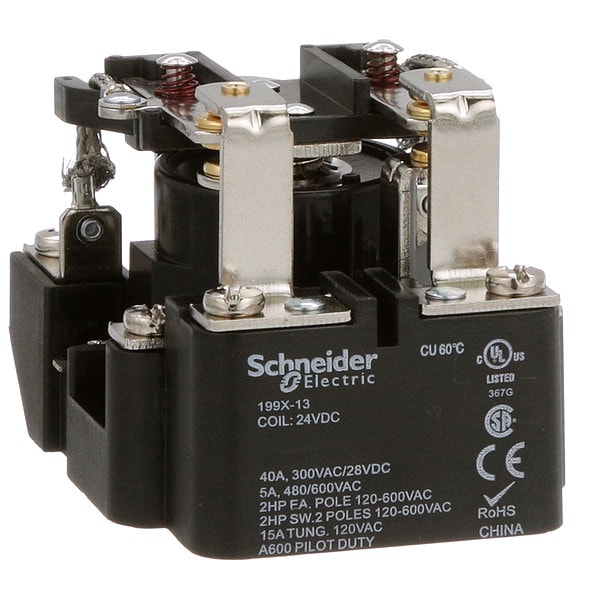

Schneider Electric Surface, Open Power Relay, Octal, 40 A, 8, Screw 199X-13 - main

CAD Drawings

Download CAD Files

Surface, Open Power Relay, Octal, 40 A, 8, Screw

  • Mfr # 199X-13

  • Zoro # G2062331

CAD Available
product price: $47.35
/ea

Key Features

CAD Drawing
Mounting Style
Surface
Electrical Connection
Screw
Base Shape
Octal
Number of Pins
8
Coil Voltage
24V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
199X-13
Zoro #
G2062331
UPC #
-
Country of Origin
China

Dimensions

Dimensions
2.31"H, 2.50"W, 3.12"D
Overall Height - Relay
2.31 in
Body Depth
3.12 in
Body Height
2.31 in
Overall Depth
2.31 in
Body Width
2.5 in

Details

Item
Open Power Relay
Mounting Style
Surface
Electrical Connection
Screw
Base Shape
Octal
Number of Pins
8
Coil Voltage
24V DC
Current Rating
40 A
Contact Form
DPDT
Contact Rating (AC)
15 A @ 120V, 40 A @ 300V, 5 A @ 480/600V
Contact Rating (DC)
40 A @ 28V
Features
Riveted Construction
Hz - Electrical
50/60 Hz
Power Consumption - Relay
10.0 W
Standards
CE Certified, CSA Certified, UL Listed
Hz
50/60
Coil Rating
10.0VA, 4.0W
Number of Poles
2
Contact Material
Silver Alloy
HP @ 240V
1 1/2
HP @ 120V
1 1/2
Contact Amp Rating (Resistive)
40A @ 300VAC/28VDC
Input Voltage
24V DC
Motor Rated
Yes
Series
199 Power Series
Weight
0.6
Maximum Operating Temperature
131 Degrees F
Dielectric Strength
1,500V AC Between Open Contacts, 2,200V AC Between Coil and Contact, 2,200V AC Between Poles
Response Time
30 msec
Operating Current
15 A at 120V AC (Tungsten Filament), 40 A at 28V DC (Resistive Load), 40 A at 300V AC (Resistive Load), 5 A at 480V AC (Resistive Load), 5 A at 600V AC (Resistive Load)
Power Consumption
4 W, 10 VA
Frequency
50/60 Hz
Maximum Switching Voltage
600V DC
Horsepower @ 240V AC
2 hp
Coil Resistance
290 ohm
Horsepower @ 120V AC
2 hp
Minimum Operating Temperature
-67 Degrees F
Electrical Operating Durability
100,000
Compatible with Manufacturer Model Number
50-1289-P
Sealing
Open
Minimum Switching Current
1,000 mA
CAD Available
Yes
Compatible Manufacturer Part Number
50-1289-P
Compatible Grainger Part Number
6CVA2
Compatible Manufacturer Model Number
50-1289-P
Status Indicator
No Indicator
Power consumption in VA
10 VA AC
Cover Type
Open cover
Terminal Tightening Torque
10.62 to 15.05 lbf.in (1.2 to 1.7 N.m)
Rated Operational Voltage
6...600 V AC 50-60 Hz; 6...250 V DC
Power consumption in W
4 W DC
Motor Power HP
2 hp 120...600 V AC 50/60 Hz
Wire Range
AWG 14
Ambient Air Temperature for Operation
-67 to 131°F (-55 to 55°C)
Contact Composition
2 C/O
Voltage Range
0.85...1.1 Un AC/DC
Product Certifications
UL Listed; CSA; CE
Ambient Air Temperature for Storage
-67 to 212°F (-55 to 100°C)
Drop-out Voltage Threshold
>= 0.1 Uc AC/DC
Type
Power, Open Style

Description

Open Power Relay, Base Shape Octal, Coil Voltage 24V DC, Contact Form DPDT, Current Rating 40 A, Electrical Connection Screw Terminal, Number of Pins 8, Sealing Open, Status Indicator No Indicator, Contact Rating (AC) 15 A @ 120V, 40 A @ 300V, 5 A @ 480/600V, Contact Rating (DC) 40 A @ 28V, Horsepower @ 120V AC 2 hp, Horsepower @ 240V AC 2 hp, Mounting Style Surface, Body Depth 1.07 in, Body Height 3.13 in, Body Width 2.5 in, Coil Resistance 290 ohm, Compatible with Grainger Part Number 6CVA2
