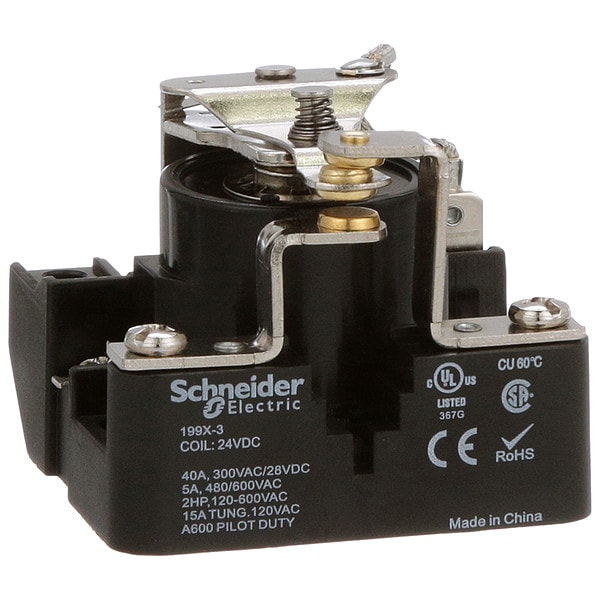

Schneider Electric Surface, Open Power Relay, Square, 40 A, 5 Pins, Screw 199X-3 - main

CAD Drawings

Download CAD Files

Surface, Open Power Relay, Square, 40 A, 5 Pins, Screw

  • Mfr # 199X-3

  • Zoro # G0821387

CAD Available
product price: $48.89
/ea

Key Features

CAD Drawing
Mounting Style
Surface
Electrical Connection
Screw
Base Shape
Square
Number of Pins
5
Coil Voltage
24V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
199X-3
Zoro #
G0821387
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
2.18 in
Dimensions
2.18"H, 2.50"W, 2.43"D
Overall Depth
2.06 in
Body Height
2.31 in
Body Depth
3.12 in
Body Width
2.5 in

Details

Item
Open Power Relay
Mounting Style
Surface
Electrical Connection
Screw
Base Shape
Square
Number of Pins
5
Coil Voltage
24V DC
Current Rating
40 A
Contact Form
SPDT
Contact Rating (AC)
15 A @ 120V, 40 A @ 300V, 5 A @ 480/600V
Contact Rating (DC)
40 A @ 28V
Number of Poles
1
Power Consumption - Relay
10.0 W
Standards
CE Certified, CSA Certified, UL Listed
HP @ 240V
1 1/2
Contact Material
Silver Alloy
Features
Riveted Construction
Hz - Electrical
50/60 Hz
HP @ 120V
1 1/2
Coil Rating
10.0VA, 4.0W
Hz
50/60
Contact Amp Rating (Resistive)
40A @ 300VAC/28VDC
Response Time
30 msec
Sealing
Open
Motor Rated
Yes
Maximum Switching Voltage
600V DC
Series
199 Power Series
Frequency
50/60 Hz
Minimum Switching Current
1,000 mA
Maximum Operating Temperature
131 Degrees F
Input Voltage
24V DC
Horsepower @ 120V AC
2 hp
Operating Current
15 A at 120V AC (Tungsten Filament), 40 A at 28V DC (Resistive Load), 40 A at 300V AC (Resistive Load), 5 A at 480V AC (Resistive Load), 5 A at 600V AC (Resistive Load)
Compatible with Manufacturer Model Number
50-1289-P
Weight
0.6
Minimum Operating Temperature
-67 Degrees F
Power Consumption
4 W, 10 VA
Electrical Operating Durability
100,000
Coil Resistance
290 ohm
Dielectric Strength
1,500V AC Between Open Contacts, 2,200V AC Between Coil and Contact, 2,200V AC Between Poles
Horsepower @ 240V AC
2 hp
Compatible Manufacturer Part Number
50-1289-P
CAD Available
Yes
Compatible Manufacturer Model Number
50-1289-P
Status Indicator
No Indicator
Motor Power HP
2 hp 120...600 V AC 50/60 Hz
Ambient Air Temperature for Storage
-67 to 212°F (-55 to 100°C)
Contact Composition
1 NC + 1 NO
Drop-out Voltage Threshold
>= 0.1 Uc AC/DC
Terminal Tightening Torque
10.62 to 15.05 lbf.in (1.2 to 1.7 N.m)
Ambient Air Temperature for Operation
-67 to 131°F (-55 to 55°C)
Rated Operational Voltage
6...600 V AC 50-60 Hz; 6...250 V DC
Wire Range
AWG 14
Power consumption in VA
10 VA AC
Cover Type
Open cover
Voltage Range
0.85...1.1 Un AC/DC
Product Certifications
UL Listed; CSA; CE
Power consumption in W
4 W DC
Type
Power, Open Style

Description

Open Power Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form SPDT, Current Rating 40 A, Electrical Connection Screw Terminal, Number of Pins 5, Sealing Open, Status Indicator No Indicator, Contact Rating (AC) 15 A @ 120V, 40 A @ 300V, 5 A @ 480/600V, Contact Rating (DC) 40 A @ 28V, Horsepower @ 120V AC 2 hp, Horsepower @ 240V AC 2 hp, Mounting Style Surface, Body Depth 2.49 in, Body Height 2.49 in, Body Width 2.5 in, Coil Resistance 290 ohm, Compatible with Grainger Part Number 6CVA2
