  11. Switching Power Supply, 100/240V AC, 24V DC, 100 W, 4.17 A, Panel

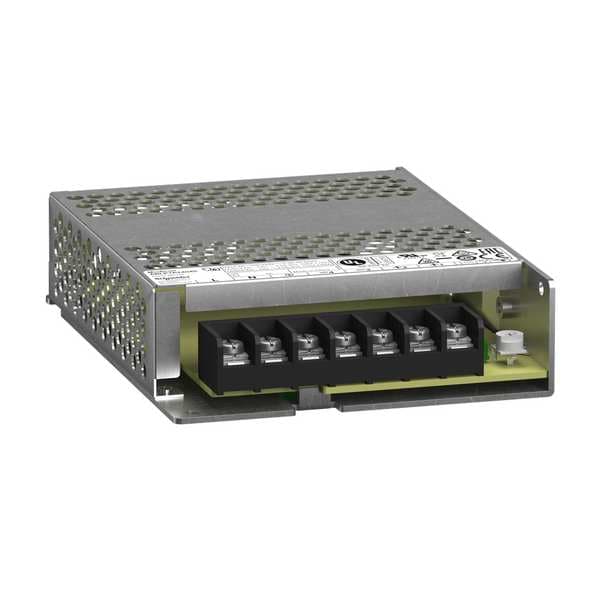

Schneider Electric Switching Power Supply, 100/240V AC, 24V DC, 100 W, 4.17 A, Panel ABLP1A24045 - main

Switching Power Supply, 100/240V AC, 24V DC, 100 W, 4.17 A, Panel

  • Mfr # ABLP1A24045

  • Zoro # G903457380

product price: $109.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
100/240V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
100 W
Current - Output
4.17 A
Mounting
Panel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ABLP1A24045
Zoro #
G903457380
UPC #
-
Country of Origin
China

Dimensions

Overall Height
97 mm
Overall Width
30 mm
Overall Depth
129 mm
Depth
129 mm
Width
97 mm
Height
30 mm
Wire Size - Minimum
18 AWG
Wire Size - Maximum
14 AWG

Details

Item
Switching Power Supply
Input Voltage
100/240V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
100 W
Current - Output
4.17 A
Mounting
Panel
Housing Material
Aluminum
Phase
Single
Power Supply Style
Switching
Connection
Screw
Peak Amps
45 A at 115 V AC, 85 A at 230 V AC
Hold Up Time
Greater Than 20 msec at 115 V AC, Greater Than 40 msec at 230 V AC
IP Rating
IP10
Series
ABL
Output Voltage
24V DC
Protection
Overload and Short-Circuits Automatic Reset, Over Temperature Manual Reset , Overvoltage Manual Reset
Power Rating
100W
Standards
CB Scheme, CE, CSA C22.2 No. 61010-1, CSA C22.2 No. 61010-2-201, CSA C22.2 No. 62368-1, cULus, EAC, EN 61000-3-3, EN 61010-2-201, EN/IEC 61010-1, EN/IEC 61204-3, EN/IEC 62368-1, IEC 61000-3-2, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4, IEC 62368-1, KC, RCM, UL 61010-1, UL 61010-2-201, UL 62368-1
Load Regulation
Less Than 0.5%
Phase - Electrical
Single
Case Material
Aluminum Case
Operating Temp. Range
-30 to 70°C
Ripple Volts Regulation
Less Than 150mV
Line Regulation
Less Than 1%
Hz
50/60 Hz
Output Amps
4.5A
Status Indicator
Green LED
Output Noise
Less Than 150 mV
Style
Switching
Features
Efficiency 88% at 230 V AC, Green Premium Product, Integrated Fuse, Mercury Free, Parallel and Serial Output Coupling, Relative Humidity 95% Without Condensation
Manufacturer Warranty
18 mo
Maximum Efficiency @ 230V AC
89 %
Input Frequency - Nominal
50/60 Hz
Wire Connection Type
Screw Terminals
Mean Time Between Failures (MTBF)
700,000 hr
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-22 Degrees F

Description

DC Power Supply, Input Voltage 100 to 240V AC, Output Voltage 24V DC, Power Rating 100W, Output Amps 4.5, Mounting DIN Rail, Switching, Case Material Aluminum Case, Height 30 mm, Width 97 mm, Depth 129 mm, Series ABL, Hz 50 to 60 Hz, Phase - Electrical Single, Peak Amps 45 A at 115 V AC, 85 A at 230 V AC, IP Rating IP10, Output Noise Less Than 150 mV, Hold Up Time Greater Than 20 msec at 115 V AC, Greater Than 40 msec at 230 V AC, Status Indicator Green LED, NEMA Rating Not Applicable
