  6. Terminal Block, Pass-Through, 1 Pole, 20 A, 600 V AC, 12 AWG, Gray

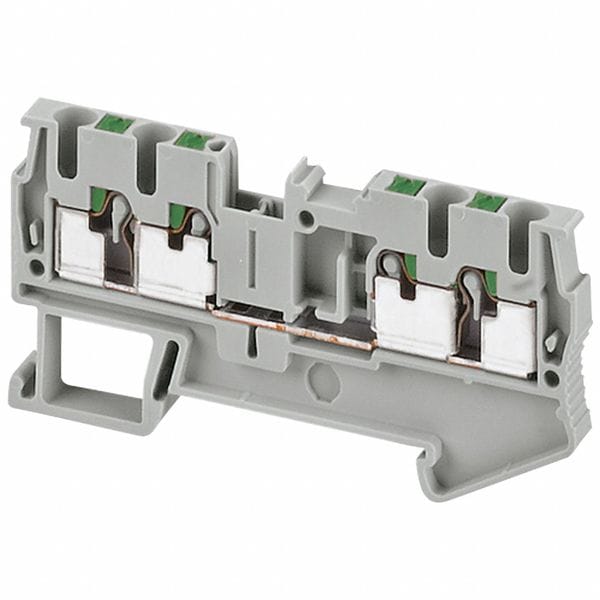

Schneider Electric Terminal Block, Pass-Through, 1 Pole, 20 A, 600 V AC, 12 AWG, Gray NSYTRP24 - main

Terminal Block, Pass-Through, 1 Pole, 20 A, 600 V AC, 12 AWG, Gray

  • Mfr # NSYTRP24

  • Zoro # G105907256

product price:  $3.15
/ea
Sold in multiples of 50 for $157.50

Key Features

Terminal Block Type
Pass-Through
Mounting Type
Clip-On
Connection Type
Push-In
Number of Poles
1
Number of Tiers
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NSYTRP24
Zoro #
G105907256
UPC #
-
Country of Origin
China

Dimensions

For Minimum Wire Size
24 AWG
For Maximum Wire Size
12 AWG
Strip Length
10 mm
Overall Length
72 mm
Overall Depth
36.5 mm
Overall Width
5.2 mm
Wire Stripping Length
10 mm

Details

Item
Terminal Block
Terminal Block Type
Pass-Through
Mounting Type
Clip-On
Connection Type
Push-In
Number of Poles
1
Number of Tiers
1
Current
20 A
Maximum Voltage
600 V AC
Circuit Protection Type
None
Housing Color
Gray
Standards
ATEX, CSA, cULus, EAC, GL, IECEx, LR, VDE
Material
polyamide 6/6 insulating case || copper alloy connector and screw || copper alloy commoning link || chromium-nickel steel spring
Number of Connections
4
UL 94 Flammability Rating
V-0
Compatible with Product Type
Special Enclosures
Minimum Operating Temperature
-40 Degrees F
RoHS Compliant
Yes
Maximum Operating Temperature
266 Degrees F
Housing Material
Polyamide 6/6
Connection Position
top
Number Of Terminals
4
Creep Resistance
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
Cable Cross Section
0.14-2.5 mm², flexible without cable end || 0.14-4 mm², solid with cable end || 0.2-2.5 mm², solid without cable end || 0.8-2.5 mm², flexible with cable end
Number Of Measurement Input
2
Terminal Block Level
1
Resistivity
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
[Ue] Rated Operational Voltage
800 V EN/IEC 60947-7-1 || 600 V CSA || 600 V cURus
Ambient Air Temperature For Operation
-40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21
Range Compatibility
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
Device Short Name
TRP
Dielectric Constant
3.7 at 1 MHz
Range
Linergy
Product Name
Linergy TR
Tool Type
connection without tool || disconnection flat screwdriver
Dielectric Strength
1000 V IEC 60243-1
Product Compatibility
Spacial enclosures
Nominal Cross Section
2.5 mm²
Flame Retardance
V0 0.8 mm UL 94
Dielectric Loss
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
Surface Resistance
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30

Description

Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 20 A, For Minimum Wire Size 24 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 600 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Not Applicable, For Conductor Type Not Applicable, For Fuse Diameter Not Applicable, For Fuse Length Not Applicable, Overall Depth 1.44 in, Overall Length 2.84 in, Overall Width 0.21 in
