  6. Thermal Overload Relay, 1NC/1NO, 23 A Min current, 32 A Max current

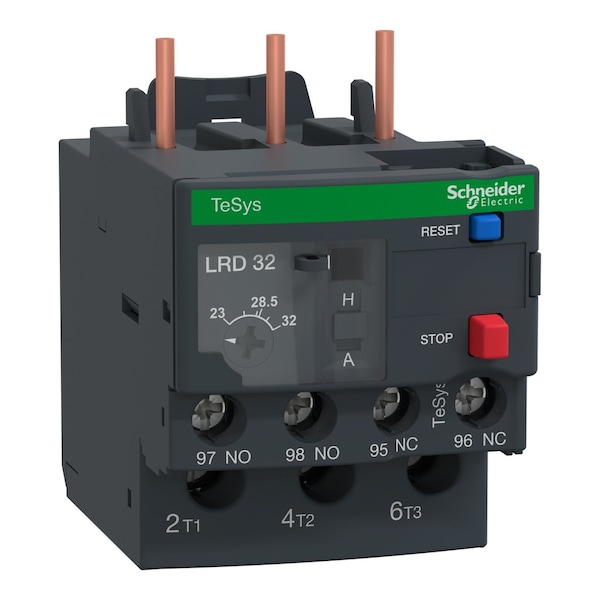

Schneider Electric Thermal Overload Relay, 1NC/1NO, 23 A Min current, 32 A Max current LR3D32 - main

Thermal Overload Relay, 1NC/1NO, 23 A Min current, 32 A Max current

  • Mfr # LR3D32

  • Zoro # G0569941

product price:  $110.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
23 A
Maximum Overload Relay Current Setting
32 A
Trip Class
10A
Overload Protection Type
Thermal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LR3D32
Zoro #
G0569941
UPC #
785901234425
Country of Origin
France

Dimensions

Height
66 mm
Width
45 mm
Depth
70 mm

Details

Item
Thermal Overload Relay
Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
23 A
Maximum Overload Relay Current Setting
32 A
Trip Class
10A
Overload Protection Type
Thermal
Standards
EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4 || GB/T 14048.5 || EN 50495
Climatic Withstand
IACS E10
Control Type
Red push-button stop || Blue push-button reset
Ambient Air Temperature For Operation
-20-60°C without derating IEC 60947-4-1
Mechanical Robustness
vibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7
Associated Fuse Rating
4 A gG signalling circuit || 4 A BS signalling circuit
Ambient Air Temperature For Storage
-60-70°C
Dielectric Strength
1.89 kV 50 Hz IEC 60947-1
Device Short Name
LR3D
Product Certifications
IEC || UL || CSA || CCC || EAC || BV || RINA || DNV-GL || LROS (Lloyds register of shipping) || ATEX INERIS || UKCA
Relay Application
motor protection
Permissible Current
1.5 A 240 V AC-15 signalling circuit || 0.1 A 250 V DC-13 signalling circuit
Thermal Protection Adjustment Range
23-32 A
Network Frequency
0 to 400 Hz
Network Type
DC || AC
Tripping Threshold
1.14 +/- 0.06 Ir IEC 60947-4-1
Phase Failure Sensitivity
tripping current 130 % of Ir on two phase, the last one at 0
Flame Retardance
V1 conforming to UL 94
Thermal Overload Class
class 10A IEC 60947-4-1
Range
TeSys || TeSys Deca
Connections - Terminals
control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit screw clamp terminals 1 1.5-10 mm² flexible without cable end || power circuit screw clamp terminals 1 1-6 mm² flexible with cable end || power circuit screw clamp terminals 1 1.5-10 mm² solid without cable end
Tightening Torque
control circuit 1.7 N.m screw clamp terminals || power circuit 2.5 N.m screw clamp terminals
Product Name
TeSys LRD || TeSys Deca
Product Compatibility
LC1D32 || LC1D25 || LC1D38
Product Or Component Type
non differential thermal overload relay
Rated Insulation Voltage
Power circuit 600 V CSA; Power circuit 600 V UL; Power circuit 690 V IEC 60947-4-1
Minimum Operating Temperature
-4 Degrees F
Rated Operational Voltage
690 V AC 0 to 400 Hz power circuit IEC 60947-4-1
Mounting Style
plate, with specific accessories || rail, with specific accessories || under contactor
IP Rating
IP20
Conventional Free Air Thermal Current
5 A signalling circuit
Maximum Operating Temperature
140 Degrees F
Trip Clss
10A
Maximum Voltage Rating
1000 V

Description

Bimetallic O/L Relay 600V 32A Iec
