  13. Through Panel, Open Power Relay, Square, 30 A, 8 Pins, Screw

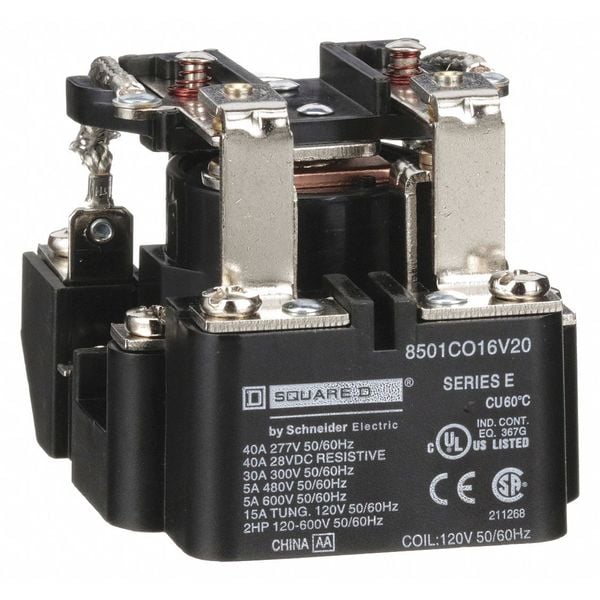

Schneider Electric Through Panel, Open Power Relay, Square, 30 A, 8 Pins, Screw 8501CO16V20 - main

Through Panel, Open Power Relay, Square, 30 A, 8 Pins, Screw

  • Mfr # 8501CO16V20

  • Zoro # G0556595

product price: $89.19
/ea
Free Shipping & Returns

Key Features

Mounting Style
Through Panel
Electrical Connection
Screw
Base Shape
Square
Number of Pins
8
Coil Voltage
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8501CO16V20
Zoro #
G0556595
UPC #
785901052135
Country of Origin
China

Dimensions

Dimensions
2.31"H, 2.50"W, 3.13"D
Overall Height - Relay
2.31 in
Body Depth
2.31 in
Body Width
2.5 in
Body Height
3.12 in
Overall Depth
3.12 in
Width
2.5 in (63.50 mm)
Depth
2.31 in (58.67 mm)

Details

Item
Open Power Relay
Mounting Style
Through Panel
Electrical Connection
Screw
Base Shape
Square
Number of Pins
8
Coil Voltage
120V AC
Current Rating
30 A
Contact Form
DPDT
Contact Rating (AC)
40 A @ 300V
Contact Rating (DC)
40 A @ 28V
Coil Rating
10.0VA, 2.0W
Hz
50/60
Contact Material
Silver Tin Oxide
Power Consumption - Relay
10.0 VA
Number of Poles
2
Contact Amp Rating (Resistive)
40A @ 277VAC/28VDC
Standards
CE Certified, CSA Certified, UL File No. E78351 CCN NLDX
Maximum Switching Voltage
600V AC
Series
8501C Series
Power Consumption
10 VA
Sealing
Open
Input Voltage
120V AC
For Use With
Conveyor and Material Handling Applications, Electric Heater, Pumping
Maximum Operating Temperature
122 Degrees F
Frequency
50/60 Hz
Status Indicator
No Indicator
Horsepower @ 120V AC
1 1/2 hp
Motor Rated
Yes
Horsepower @ 240V AC
2 hp
Minimum Operating Temperature
-22 Degrees F
Switching Voltage
600 V AC
Contact Rating
30 A
Short Name
type C
Class Number
8501
Terminal Tightening Torque
11 to 15 lbf.in (1.24 to 1.69 N.m)
Terminal Connects
Screw clamp terminal
Wire Range
AWG 10 copper
Device Application
Suited for controlling small single phase motors and other light loads
Phase
1 phase
Control Circuit Voltage
120 V AC 50/60 Hz
Contact Composition
2 NO/2 NC
Product Certifications
UL listed file E78351 CCN NLDX; CSA; CE
Ambient Temperature Range - Operational
-22 to 122°F (-30 to 50°C)

Description

Open Power Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form DPDT, Current Rating 30 A, Electrical Connection Screw Clamp, Flat Pin Width Not Applicable, Number of Pins 8, Sealing Open, Status Indicator No Indicator, Contact Rating (AC) 40 A @ 300V, Contact Rating (DC) 40 A @ 28V, Horsepower @ 120V AC 1 1/2 hp, Horsepower @ 240V AC 2 hp, Mounting Style Through Panel, Body Depth 2.31 in, Body Height 3.12 in, Body Width 2.5 in, Contact Material Silver Tin Oxide
