- MFR #
- RUMF33FD
- Zoro #
- G1978375
- UPC #
- -
- Country of Origin
- China
- Item

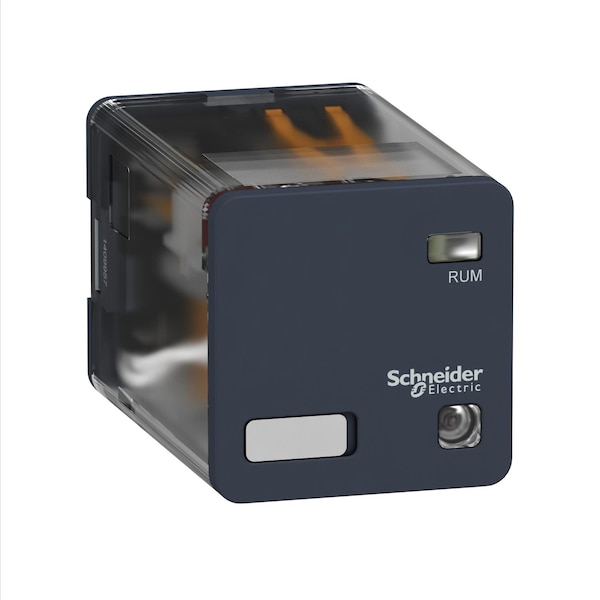

- Relay,3co Qc Pins 10A,@ 250v 110VDC,Coil
- Electrical Connection
- Pin
- Coil Voltage
- 110V DC
- Current Rating
- 10 A
- Contact Rating (AC)
- 10 A @ 250V AC (NO), 10 A @ 277 V AC, 5 A @ 250 V AC (NC)
- Contact Rating (DC)
- 10 A @ 28V DC (NO), 5 A @ 28 V DC (NC), 10 A @ 30 V DC
- Status Indicator
- LED Indicator
- Contact Material
- AgNi
- Standards
- CSA C22.2 No 14; EN/IEC 61810-1; UL 508; CSA; EAC; UL
- Features
- Without Lockable Test Button; Flat Pin; With Status LED
- Power Consumption - Relay
- 1.4W
- Dielectric Voltage
- 1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
- Operating Temp. Range
- -40-55°C
- Switching Voltage
- 250 V IEC
- Coil Resistance
- 7300 Ohm 20°C +/- 15 %
- Protection Category
- RT I
- Ambient Air Temperature For Operation
- -40-55°C
- Pollution Degree
- 3
- [Ui] Rated Insulation Voltage
- 250 V IEC, 300 V CSA, 300 V UL
- Device Presentation
- complete product
- Mechanical Durability
- 5000000 cycles
- Reset Time
- 20 ms at nominal voltage
- Control Type
- without lockable test button
- Electrical Durability
- 100000 cycles resistive
- Test Levels
- level A group mounting
- Utilisation Coefficient
- 0.2
- Minimum Switching Capacity
- 170 mW 10 mA, 17 V
- Drop-Out Voltage Threshold
- >= 0.1 Uc DC
- Vibration Resistance
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Average Coil Consumption
- 1.4 W
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV 1.2/50µs)
- Series Name
- Universal
- Shape of Pin
- flat
- Rated Operational Voltage Limits
- 88...121 V DC
- Load Current
- 10 A 250 V AC, 10 A 28 V DC
- [Ithe] Conventional Enclosed Thermal Current
- 10 A -40-55°C
- Device Short Name
- RUM
- Maximum Switching Capacity
- 2500 VA/280 W
- Operating Position
- any position
- Shock Resistance
- 10 gn 11 ms) in operation IEC 60068-2-27, 10 gn 11 ms) not operating IEC 60068-2-27
- Ambient Air Temperature For Storage
- -40-85°C
- Ip Degree of Protection
- IP40
- Operating Rate
- <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load
- Average Resistance
- 7300 Ohm 20°C +/- 15 %
- Operating Time
- 20 ms at nominal voltage
- Base Shape
- Square
- Number of Pins
- 11
- Contact Form
- 3PDT
- Mounting Style
- Plug In
