  11. Variable Frequency Drive, 1 HP, 2.4A

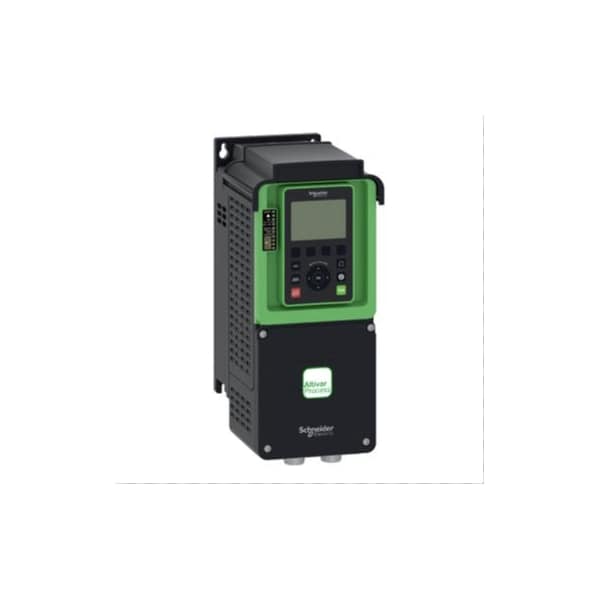

Schneider Electric Variable Frequency Drive, 1 HP, 2.4A ATV630U07N4 - main

Variable Frequency Drive, 1 HP, 2.4A

  • Mfr # ATV630U07N4

  • Zoro # G0211668

product price: $1,651.99
/ea
Free Shipping & Returns

Key Features

Input Frequency
50/60 Hz
Adjustable Deceleration Time
0.01 to 9,999 sec
Height
13.78 in
Depth
7.99 in
Standards
UL 508C, EN/IEC 61800-3, Environment 1 category C2 EN/IEC 61800-3, Environment 2 category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV630U07N4
Zoro #
G0211668
UPC #
785901993261
Country of Origin
Indonesia

Dimensions

Height
13.78 in
Depth
7.99 in
Width
5.67 in
Overall Height
13 3/4 in
Overall Depth
8 in
Overall Width
5 3/4 in

Details

Input Frequency
50/60 Hz
Adjustable Deceleration Time
0.01 to 9,999 sec
Standards
UL 508C, EN/IEC 61800-3, Environment 1 category C2 EN/IEC 61800-3, Environment 2 category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1
Dynamic Braking
No
Key Pad Lockout
None
Output Phase AC
Three
Input Phase AC
Three
Output Voltage
480V AC
Accepts Input Control Signal
Yes
Max. HP
1 hp
Input Voltage
480V AC
Item
Variable Speed Drive
Displays
LCD Keypad
Start/Stop Control
Programmable
Control Type
Keypad, Remote Keypad, Terminal, Digital Communication Network
Protection
Motor Phase Break, Overcurrent, Overheating, Overspeed, Overvoltage's, Safe Torque Off, Short-circuit Protection, Thermal Protection, Undervoltage
Display Type
LCD
Max. Output Amps
2.4 A
With Line Contactor / No Line Contactor
With Line Contactor
For Use With
Synchronous, Asynchronous Motors and Special Motors From 800kW to 1.5MW
With Bypass / No Bypass
No Bypass
Control Method
Keypad, Remote Keypad, Terminal, Digital Communication Network
Digital Readout
Yes
Output Frequency Range
0.1 to 500 Hz
Adjustable Acceleration Time
0.01 to 9,999 sec
Enclosure
Totally Enclosed
Output Voltage Range
380V AC to 480V AC
Maximum Output Current
2.2 A
Application
Industrial Process and Utilities
Ethernet Port Included
Yes
Number of Outputs
(2) Analog; (3) Relay
Style
Compact
Input Type
Analog, Discrete
Color
Black
Series
Altivar Process ATV600 Variable Speed Drives
Brake Chopper Included
No
Maximum Output Power
1 hp
Torque Application
Constant Torque, Variable Torque
Enclosure Rating
NEMA 1
Input Voltage Range
380 to 480V AC
Output Type
Analog, Discrete
Number of Inputs
(3) Analog; (8) Discrete

Description

Variable Speed Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 1 hp, Maximum Output Current 2.2 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 500 Hz, Enclosure Rating NEMA 1
