Shop SCHNEIDER ELECTRIC

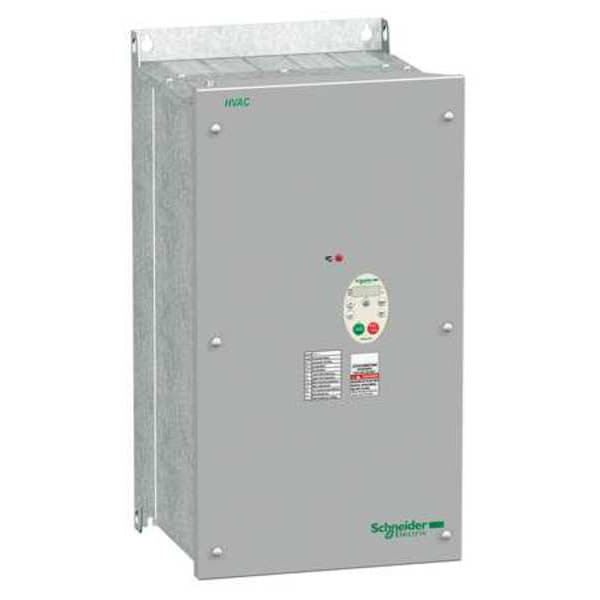

Variable Frequency Drive, 15 HP, 400-480V

  • Mfr # ATV212WD11N4

  • Zoro # G3926982

product price:  $1,831.99
/ea
Free Shipping & Returns

Key Features

Height
22.05 in
Digital Readout
Hertz, Motor Current, KW, Motor Voltage
Input Phase AC
Three
Depth
12.4 in
Protection
Against Exceeding Limit Speed: Drive, Against Input Phase Loss: Drive, Break on the Control Circuit: Drive, Input Phase Breaks: Drive, Line Supply Overvoltage and Undervoltage: Drive, Line Supply Undervoltage: Drive, Motor Phase Break: Motor, Overcurrent Between Output Phases and Earth: drive, Overheating Protection: Drive, Overvoltage's on the DC Bus: Drive, Short-Circuit Between Motor Phases: Drive, Thermal Power Stage: Drive, Thermal Protection: Motor, With PTC Probes: Motor
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ATV212WD11N4
Zoro #
G3926982
UPC #
785901957522
Country of Origin
China

Dimensions

Height
22.05 in
Depth
12.4 in
Width
11.41 in
Overall Height
22 1/8 in
Overall Depth
12 3/8 in
Overall Width
11 3/8 in

Details

Digital Readout
Hertz, Motor Current, KW, Motor Voltage
Input Phase AC
Three
Protection
Against Exceeding Limit Speed: Drive, Against Input Phase Loss: Drive, Break on the Control Circuit: Drive, Input Phase Breaks: Drive, Line Supply Overvoltage and Undervoltage: Drive, Line Supply Undervoltage: Drive, Motor Phase Break: Motor, Overcurrent Between Output Phases and Earth: drive, Overheating Protection: Drive, Overvoltage's on the DC Bus: Drive, Short-Circuit Between Motor Phases: Drive, Thermal Power Stage: Drive, Thermal Protection: Motor, With PTC Probes: Motor
Output Phase AC
Three
Max. HP
15 hp
Starting Torque
120 %
With Bypass / No Bypass
No Bypass
Accepts Input Control Signal
Yes
Item
Variable Frequency Drive
Input Voltage
380-480V AC
Output Frequency Range
0.5 to 200 Hz
Key Pad Lockout
Yes
Displays
LED, Optional Remote Mount LCD
Max. Output Amps
22.5 A
With Line Contactor / No Line Contactor
No Line Contactor
Enclosure
Totally Enclosed
Start/Stop Control
Programmable
For Use With
3-Phase Inverter Duty Motor
Control Method
Keypad or Logic Input
Dynamic Braking
No
Display Type
LCD, LED
Output Voltage
323-528V AC
Control Type
Built-In Keypad
Input Frequency
60/50 Hz
Standards
UL, NOM 117, C-Tick, CSA
Adjustable Deceleration Time
0.01 to 3,200 sec
Torque @ 1 Hz
110 %
Adjustable Acceleration Time
0.01 to 3,200 sec
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Maximum Output Current
22.5 A
Application
Pumps and Fans in HV AC
Input Type
Analog, Digital
Number of Outputs
(1) Analog; (2) Discrete
Output Type
Analog
Style
Heat Sink
Number of Inputs
2
Output Voltage Range
323V AC to 528V AC
Series
ATV212
Maximum Output Power
15 hp
Brake Chopper Included
Yes
Torque Application
Constant Torque, Variable Torque
Ethernet Port Included
No
Enclosure Rating
NEMA 12
Input Voltage Range
380 to 480V AC
Color
Black
Includes Ethernet Port
No
Product Type
Variable Frequency Drive
Includes Heat Sink
Yes
Output Frequency - Maximum
0.5 Hz
Output Phase
Three
Includes Brake Chopper
Yes
Output Horsepower
15 hp
Keypad Lockout
Yes
NEMA Rating
NEMA 12
IP Rating
IP55
Output Current - Maximum
22.5 A
Input Phase
Three
Output Frequency - Minimum
200 Hz
Bypass Design
No Bypass
Number of Outputs - Analog
1
Line Contactor Design
No Line Contactor

Description

Variable Frequency Drive, Input Voltage 380-480V AC, Input Phase AC Three, Input Frequency 60/50 Hz, Maximum Output Power 15 hp, Maximum Output Current 22.5 A, Output Voltage 323-528V AC, Output Phase AC Three, Output Frequency Range 0.5 to 200 Hz, Enclosure Rating NEMA 12
