  11. Variable Frequency Drive, 15 HP, 51.5A

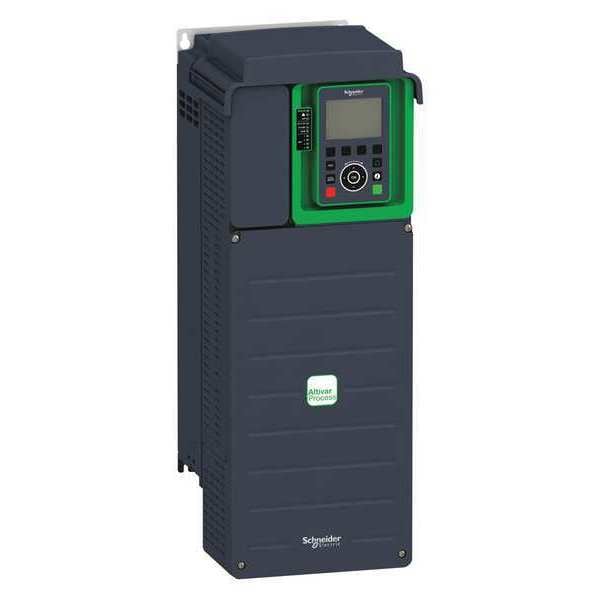

Schneider Electric Variable Frequency Drive, 15 HP, 51.5A ATV630D11M3 - main

Variable Frequency Drive, 15 HP, 51.5A

  • Mfr # ATV630D11M3

  • Zoro # G0211449

product price: $3,540.99
/ea
Free Shipping & Returns

Key Features

Max. HP
15 hp
Height
21.5 in
Accepts Input Control Signal
Yes
Output Voltage
240V AC
Control Method
Keypad, Remote Keypad, Terminal, Digital Communication Network
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV630D11M3
Zoro #
G0211449
UPC #
785901415961
Country of Origin
India

Dimensions

Height
21.5 in
Width
8.31 in
Depth
9.13 in
Overall Width
8 3/8 in
Overall Height
21 1/2 in
Overall Depth
9 1/8 in

Details

Max. HP
15 hp
Accepts Input Control Signal
Yes
Output Voltage
240V AC
Control Method
Keypad, Remote Keypad, Terminal, Digital Communication Network
Adjustable Deceleration Time
0.01 to 9,999 sec
Output Frequency Range
0.1 to 500 Hz
Key Pad Lockout
None
Adjustable Acceleration Time
0.01 to 9,999 sec
Digital Readout
Yes
Control Type
Keypad, Remote Keypad, Terminal, Digital Communication Network
Enclosure
Totally Enclosed
Input Frequency
50/60 Hz
Max. Output Amps
51.5 A
Item
Variable Speed Drive
Protection
Motor Phase Break, Overcurrent, Overheating, Overspeed, Overvoltage's, Safe Torque Off, Short-circuit Protection, Thermal Protection, Undervoltage
Displays
LCD Keypad
With Bypass / No Bypass
No Bypass
For Use With
Synchronous, Asynchronous Motors and Special Motors From 800kW to 1.5MW
Input Phase AC
Three
Display Type
LCD
With Line Contactor / No Line Contactor
With Line Contactor
Output Phase AC
Three
Input Voltage
240V AC
Standards
UL 508C, EN/IEC 61800-3, Environment 1 category C2 EN/IEC 61800-3, Environment 2 category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1
Dynamic Braking
No
Start/Stop Control
Programmable
Color
Black
Output Voltage Range
200V AC to 240V AC
Style
Compact
Input Voltage Range
200 to 240V AC
Torque Application
Constant Torque, Variable Torque
Number of Outputs
(2) Analog; (3) Relay
Application
Industrial Process and Utilities
Brake Chopper Included
No
Enclosure Rating
NEMA 1
Input Type
Analog, Discrete
Ethernet Port Included
Yes
Output Type
Analog, Discrete
Maximum Output Power
15 hp
Series
Altivar Process ATV600 Variable Speed Drives
Maximum Output Current
46.8 A
Number of Inputs
(3) Analog; (8) Discrete

Description

Variable Speed Drive, Input Voltage 240V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 15 hp, Maximum Output Current 46.8 A, Output Voltage 240V AC, Output Phase AC Three, Output Frequency Range 0.1 to 500 Hz, Enclosure Rating NEMA 1
