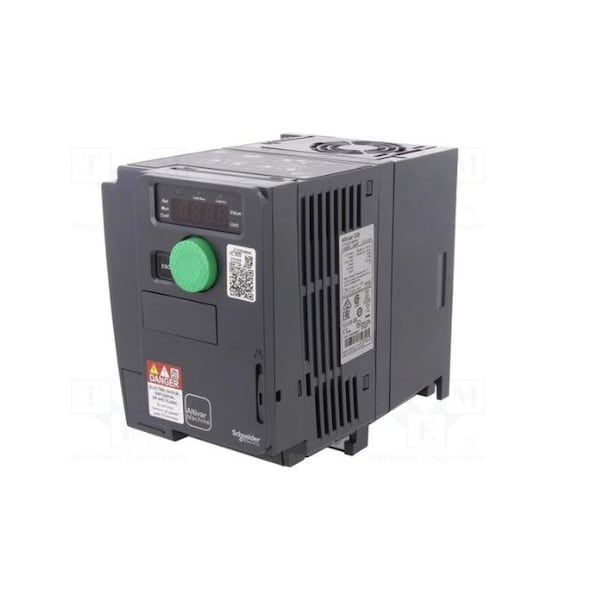

Schneider Electric Variable Frequency Drive, 3/4 HP, 1.9A ATV320U06N4C - main

Variable Frequency Drive, 3/4 HP, 1.9A

  • Mfr # ATV320U06N4C

  • Zoro # G5922268

product price: $517.44
/ea
Free Shipping & Returns

Key Features

With Bypass / No Bypass
No Bypass
Key Pad Lockout
Yes
Torque @ 1 Hz
1.5
Control Method
Keypad, Remote, Terminal, Network
Starting Torque
1.5
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV320U06N4C
Zoro #
G5922268
UPC #
785901580287
Country of Origin
Indonesia

Dimensions

Depth
5.9 in
Width
4.21 in
Height
5.62 in
Overall Width
4 1/4 in
Overall Depth
6 1/4 in
Overall Height
5 5/8 in

Details

With Bypass / No Bypass
No Bypass
Key Pad Lockout
Yes
Torque @ 1 Hz
1.5
Control Method
Keypad, Remote, Terminal, Network
Starting Torque
1.5
Protection
Input Phase Breaks Drive, Overcurrent Between Output Phases And Earth Drive, Overheating Protection Drive, Short-Circuit Between Motor Phases Drive, Thermal Protection Drive
Control Type
Keypad, Remote, Terminal, Network
Output Frequency Range
0.1 to 599 Hz
Max. Output Amps
1.9 A
Output Phase AC
Three
Output Voltage
500V AC
Enclosure
Open
Displays
LED
Input Phase AC
Three
Standards
EN/IEC 61800-3, Environment 1 Category C2 EN/IEC 61800-3, Environment 2 Category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 508C, UL 61800-5-1, CSA C22.2 No 274
Item
Variable Speed Drive
Input Frequency
50/60 Hz
Adjustable Deceleration Time
0 to 6,000 sec
Display Type
LED
Digital Readout
Output Frequency, Output Current, Output Voltage
Input Voltage
500V AC
Start/Stop Control
Programmable
Dynamic Braking
No
For Use With
three-phase Asynchronous, Synchronous Motors
Max. HP
0.75 hp
Adjustable Acceleration Time
0 to 6,000 sec
Accepts Input Control Signal
0 to 10V DC, 0 to 20mA Adjustable, Bipolar -10 to 10V DC
With Line Contactor / No Line Contactor
No Line Contactor
Application
Complex Machines
Number of Inputs
(3) Analog; (7) Discrete
Input Type
Analog, Discrete
Input Voltage Range
323 to 550V AC
Maximum Output Current
1.9 A
Output Voltage Range
380V AC to 500V AC
Output Type
Analog, Discrete
Brake Chopper Included
Yes
Series
Altivar 320
Color
Black
Style
Compact
Ethernet Port Included
No
Torque Application
Constant Torque, Variable Torque
Enclosure Rating
NEMA 1
Number of Outputs
(1) Analog; (3) Discrete
Maximum Output Power
3/4 hp

Description

Variable Speed Drive, Input Voltage 500V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 3/4 hp, Maximum Output Current 1.9 A, Output Voltage 500V AC, Output Phase AC Three, Output Frequency Range 0.1 to 599 Hz, Enclosure Rating NEMA 1
