  11. Variable FrequencyDrive, 500V, Black/Green

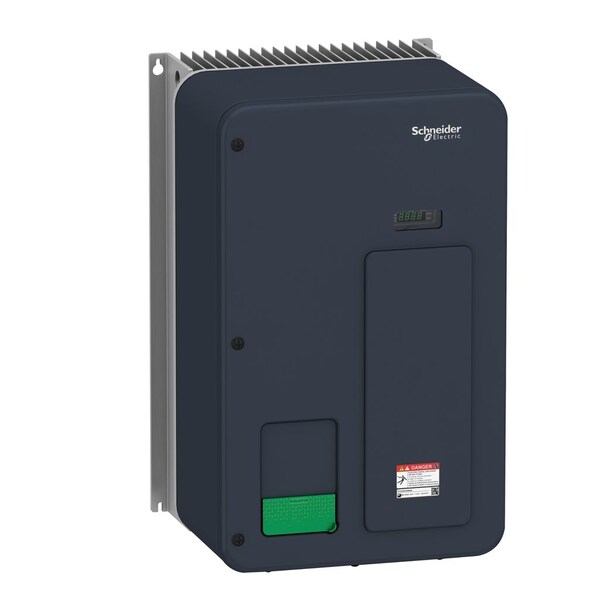

Schneider Electric Variable FrequencyDrive, 500V, Black/Green ATV320U55N4W - main

Variable FrequencyDrive, 500V, Black/Green

  • Mfr # ATV320U55N4W

  • Zoro # G713302405

product price: $1,804.99
/ea
Free Shipping & Returns

Key Features

Input Frequency
50/60 Hz
Standards
ATEX, CE Certified, CSA Certified, EAC, GOST, IEC 61800-5-1, KC, NOM, RCM, REACH Regulation, RoHS Compliant, UL Listed
Display Type
LED
Control Method
Remote
Control Type
Remote
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV320U55N4W
Zoro #
G713302405
UPC #
3606489548544
Country of Origin
United States

Dimensions

Overall Width
12 5/8 in
Overall Height
20 1/2 in
Overall Depth
11 3/4 in

Details

Input Frequency
50/60 Hz
Standards
ATEX, CE Certified, CSA Certified, EAC, GOST, IEC 61800-5-1, KC, NOM, RCM, REACH Regulation, RoHS Compliant, UL Listed
Display Type
LED
Control Method
Remote
Control Type
Remote
With Bypass / No Bypass
No Bypass
Digital Readout
Output Current; Output Frequency; Output Voltage
Displays
LED
Input Voltage
500V
Input Phase AC
Three
Dynamic Braking
Yes
Enclosure
Totally Enclosed
With Line Contactor / No Line Contactor
With Line Contactor
Item
Variable Frequency Drive
Output Voltage
500V AC
Output Phase AC
Three
Protection
Input Phase Breaks Drive, Overcurrent Between Output Phases and Earth Drive, Overheating Protection Drive, Short-Circuit Between Motor Phases Drive, Thermal Protection Drive
Output Frequency Range
0.599 kHz
Start/Stop Control
Programmable
Output Type
Analog, Digital
Brake Chopper Included
Yes
Application
Complex Machines
Output Voltage Range
380V AC to 500V AC
Input Voltage Range
380V AC to 500V AC
Ethernet Port Included
Yes
Maximum Output Current
14.3 A
Enclosure Rating
IP66
Series
ATV320
Number of Outputs
(1) Analog, (3) Digital
Number of Inputs
(3) Analog, (7) Digital
Input Type
Analog, Digital
Color
Black/Green
Maximum Output Power
7 1/2 hp
Torque Application
Constant Torque, Variable Torque
Style
Compact

Description

Variable Frequency Drive, Input Voltage 500V, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 7 1/2 hp, Maximum Output Current 14.3 A, Output Voltage 500V AC, Output Phase AC Three, Output Frequency Range 0.599 kHz, Enclosure Rating IP66
