  11. Variable Frequency Drive, 4 HP, 7.1A

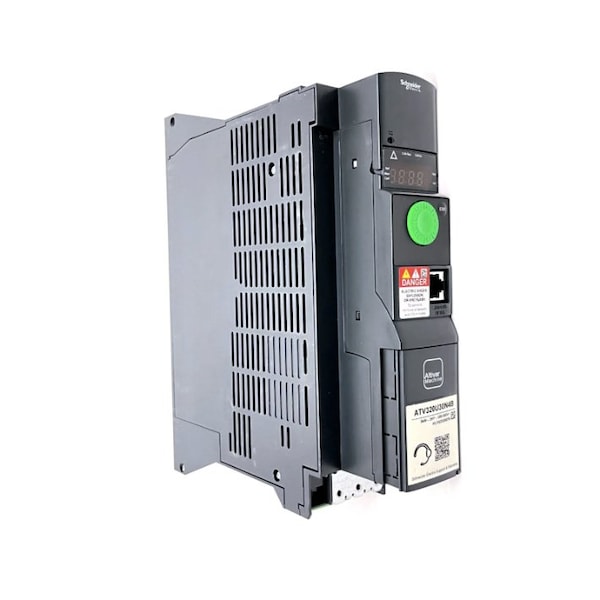

Schneider Electric Variable Frequency Drive, 4 HP, 7.1A ATV320U30N4B - main

Variable Frequency Drive, 4 HP, 7.1A

  • Mfr # ATV320U30N4B

  • Zoro # G5932068

product price: $909.48
/ea
Free Shipping & Returns

Key Features

Adjustable Acceleration Time
0 to 6,000 sec
Displays
Set Frequency, Motor Frequency, Hertz, RPM, Custom Units, Motor Current, Motor Voltage, Bus Voltage, Speed, Alarms and Programmable
Input Voltage
500V AC
Start/Stop Control
Programmable
Width
5.9 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV320U30N4B
Zoro #
G5932068
UPC #
785901821779
Country of Origin
Indonesia

Dimensions

Width
5.9 in
Height
12.8 in
Depth
9.65 in
Overall Depth
9 5/8 in
Overall Height
12 3/4 in
Overall Width
2 3/8 in

Details

Adjustable Acceleration Time
0 to 6,000 sec
Displays
Set Frequency, Motor Frequency, Hertz, RPM, Custom Units, Motor Current, Motor Voltage, Bus Voltage, Speed, Alarms and Programmable
Input Voltage
500V AC
Start/Stop Control
Programmable
Input Frequency
50/60 Hz
With Bypass / No Bypass
No Bypass
Enclosure
Open
Digital Readout
Set Frequency, Motor Frequency, Hertz, RPM, Custom Units, Motor Current, Motor Voltage, Bus Voltage, Speed, Alarms and Programmable
Output Phase AC
Three
Accepts Input Control Signal
0 to 10V DC, 0 to 20mA Adjustable, Bipolar -10 to 10V DC
With Line Contactor / No Line Contactor
No Line Contactor
Input Phase AC
Three
Protection
Input phase breaks: drive, Overcurrent between output phases and earth: drive, Overheating protection: drive, Short-circuit between motor phases: drive, Thermal protection: drive
For Use With
three-phase Asynchronous, Synchronous Motors
Display Type
LED
Standards
EN/IEC 61800-3, Environment 1 category C2 EN/IEC 61800-3, Environment 2 category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 508C, UL 61800-5-1, CSA C22.2 No 274
Max. Output Amps
7.1 A
Control Method
Keypad, Remote, Terminal, Network
Starting Torque
1.5
Adjustable Deceleration Time
0 to 6,000 sec
Torque @ 1 Hz
1.5
Dynamic Braking
No
Item
Variable Speed Drive
Max. HP
4 hp
Output Voltage
500V AC
Control Type
Keypad, Remote, Terminal, Network
Key Pad Lockout
Yes
Output Frequency Range
0.1 to 599 Hz
Output Voltage Range
380V AC to 500V AC
Number of Outputs
(1) Analog; (3) Discrete
Color
Black
Series
Altivar 320
Ethernet Port Included
No
Application
Complex machines
Input Voltage Range
323 to 550V AC
Output Type
Analog, Discrete
Brake Chopper Included
Yes
Number of Inputs
(3) Analog; (7) Discrete
Style
Book
Maximum Output Current
7.1 A
Enclosure Rating
NEMA 1
Maximum Output Power
4 hp
Input Type
Analog, Discrete
Torque Application
Constant Torque, Variable Torque

Description

Variable Speed Drive, Input Voltage 500V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 4 hp, Maximum Output Current 7.1 A, Output Voltage 500V AC, Output Phase AC Three, Output Frequency Range 0.1 to 599 Hz, Enclosure Rating NEMA 1
