Shop SCHNEIDER ELECTRIC

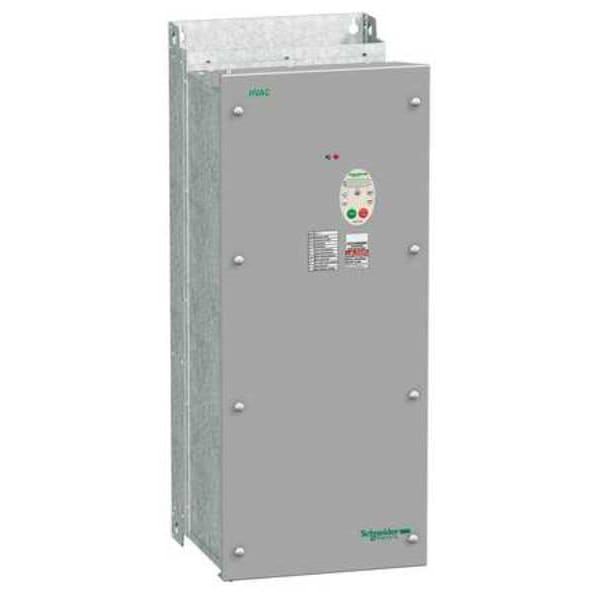

Variable Frequency Drive, 40 HP, 400-480V

  • Mfr # ATV212WD30N4

  • Zoro # G4087763

product price:  $4,382.99
/ea
Free Shipping & Returns

Key Features

Protection
Against Exceeding Limit Speed: Drive, Against Input Phase Loss: Drive, Break on the Control Circuit: Drive, Input Phase Breaks: Drive, Line Supply Overvoltage and Undervoltage: Drive, Line Supply Undervoltage: Drive, Motor Phase Break: Motor, Overcurrent Between Output Phases and Earth: drive, Overheating Protection: Drive, Overvoltage's on the DC Bus: Drive, Short-Circuit Between Motor Phases: Drive, Thermal Power Stage: Drive, Thermal Protection: Motor, With PTC Probes: Motor
Max. HP
40 hp
Output Frequency Range
0.5 to 200 Hz
Input Voltage
380-480V AC
Output Voltage
323-528V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ATV212WD30N4
Zoro #
G4087763
UPC #
785901957843
Country of Origin
China

Dimensions

Width
11.18 in
Height
28.35 in
Depth
12.4 in
Overall Height
28 3/8 in
Overall Width
11 1/4 in
Overall Depth
12 3/8 in

Details

Protection
Against Exceeding Limit Speed: Drive, Against Input Phase Loss: Drive, Break on the Control Circuit: Drive, Input Phase Breaks: Drive, Line Supply Overvoltage and Undervoltage: Drive, Line Supply Undervoltage: Drive, Motor Phase Break: Motor, Overcurrent Between Output Phases and Earth: drive, Overheating Protection: Drive, Overvoltage's on the DC Bus: Drive, Short-Circuit Between Motor Phases: Drive, Thermal Power Stage: Drive, Thermal Protection: Motor, With PTC Probes: Motor
Max. HP
40 hp
Output Frequency Range
0.5 to 200 Hz
Input Voltage
380-480V AC
Output Voltage
323-528V AC
Torque @ 1 Hz
110 %
Control Method
Keypad or Logic Input
Adjustable Deceleration Time
0.01 to 3,200 sec
For Use With
3-Phase Inverter Duty Motor
Input Phase AC
Three
Dynamic Braking
No
With Bypass / No Bypass
No Bypass
Adjustable Acceleration Time
0.01 to 3,200 sec
Starting Torque
120 %
Output Phase AC
Three
Standards
UL, NOM 117, C-Tick, CSA
Max. Output Amps
58.5 A
Enclosure
Totally Enclosed
Displays
LED, Optional Remote Mount LCD
Display Type
LCD, LED
Input Frequency
60/50 Hz
Key Pad Lockout
Yes
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Start/Stop Control
Programmable
With Line Contactor / No Line Contactor
No Line Contactor
Accepts Input Control Signal
Yes
Item
Variable Frequency Drive
Digital Readout
Hertz, Motor Current, KW, Motor Voltage
Control Type
Built-In Keypad
Color
Black
Number of Outputs
(1) Analog; (2) Discrete
Output Type
Analog
Maximum Output Power
40 hp
Number of Inputs
2
Style
Heat Sink
Application
Pumps and Fans in HV AC
Input Voltage Range
380 to 480V AC
Brake Chopper Included
Yes
Enclosure Rating
NEMA 12
Torque Application
Constant Torque, Variable Torque
Output Voltage Range
323V AC to 528V AC
Input Type
Analog, Digital
Maximum Output Current
58.5 A
Series
ATV212
Ethernet Port Included
No
Output Frequency - Minimum
200 Hz
Keypad Lockout
Yes
NEMA Rating
NEMA 12
Line Contactor Design
No Line Contactor
Input Phase
Three
Bypass Design
No Bypass
Number of Outputs - Analog
1
Output Frequency - Maximum
0.5 Hz
Output Current - Maximum
58.5 A
Includes Ethernet Port
No
IP Rating
IP55
Output Horsepower
40 hp
Product Type
Variable Frequency Drive
Includes Brake Chopper
Yes
Output Phase
Three
Includes Heat Sink
Yes

Description

Variable Frequency Drive, Input Voltage 380-480V AC, Input Phase AC Three, Input Frequency 60/50 Hz, Maximum Output Power 40 hp, Maximum Output Current 58.5 A, Output Voltage 323-528V AC, Output Phase AC Three, Output Frequency Range 0.5 to 200 Hz, Enclosure Rating NEMA 12
