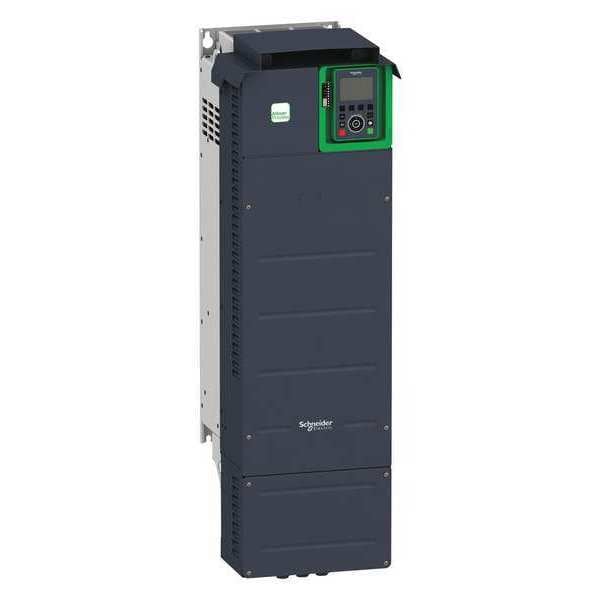

Schneider Electric Variable Frequency Drive, 75 HP, 132A ATV630D55N4 - main

Variable Frequency Drive, 75 HP, 132A

  • Mfr # ATV630D55N4

  • Zoro # G0211701

product price: $10,991.99
/ea
Item requires special delivery charges. A $80.00 per item surcharge will be applied.

Key Features

Max. Output Amps
132 A
Protection
Motor Phase Break, Overcurrent, Overheating, Overspeed, Overvoltage's, Safe Torque Off, Short-circuit Protection, Thermal Protection, Undervoltage
Input Phase AC
Three
Input Frequency
50/60 Hz
Displays
LCD Keypad
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV630D55N4
Zoro #
G0211701
UPC #
785901976400
Country of Origin
India

Dimensions

Width
11.42 in
Height
36.3 in
Depth
12.72 in
Overall Height
36 3/8 in
Overall Width
11 1/2 in
Overall Depth
12 3/4 in

Details

Max. Output Amps
132 A
Protection
Motor Phase Break, Overcurrent, Overheating, Overspeed, Overvoltage's, Safe Torque Off, Short-circuit Protection, Thermal Protection, Undervoltage
Input Phase AC
Three
Input Frequency
50/60 Hz
Displays
LCD Keypad
With Line Contactor / No Line Contactor
With Line Contactor
Digital Readout
Yes
Standards
UL 508C, EN/IEC 61800-3, Environment 1 category C2 EN/IEC 61800-3, Environment 2 category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1
Control Type
Keypad, Remote Keypad, Terminal, Digital Communication Network
Display Type
LCD
With Bypass / No Bypass
No Bypass
Output Phase AC
Three
Item
Variable Speed Drive
Adjustable Acceleration Time
0.01 to 9,999 sec
Dynamic Braking
No
Input Voltage
480V AC
Max. HP
75 hp
Key Pad Lockout
None
Accepts Input Control Signal
Yes
For Use With
Synchronous, Asynchronous Motors and Special Motors From 800kW to 1.5MW
Adjustable Deceleration Time
0.01 to 9,999 sec
Control Method
Keypad, Remote Keypad, Terminal, Digital Communication Network
Start/Stop Control
Programmable
Output Voltage
480V AC
Enclosure
Totally Enclosed
Output Frequency Range
0.1 to 500 Hz
Torque Application
Constant Torque, Variable Torque
Output Type
Analog, Discrete
Series
Altivar Process ATV600 Variable Speed Drives
Application
Industrial Process and Utilities
Number of Outputs
(2) Analog; (3) Relay
Ethernet Port Included
Yes
Brake Chopper Included
No
Style
Compact
Enclosure Rating
NEMA 1
Input Voltage Range
380 to 480V AC
Output Voltage Range
380V AC to 480V AC
Input Type
Analog, Discrete
Maximum Output Power
75 hp
Number of Inputs
(3) Analog; (8) Discrete
Color
Black
Maximum Output Current
106 A

Description

Variable Speed Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 75 hp, Maximum Output Current 106 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 500 Hz, Enclosure Rating NEMA 1
