  11. Variable FrequencyDrive, 480V, Black/Green

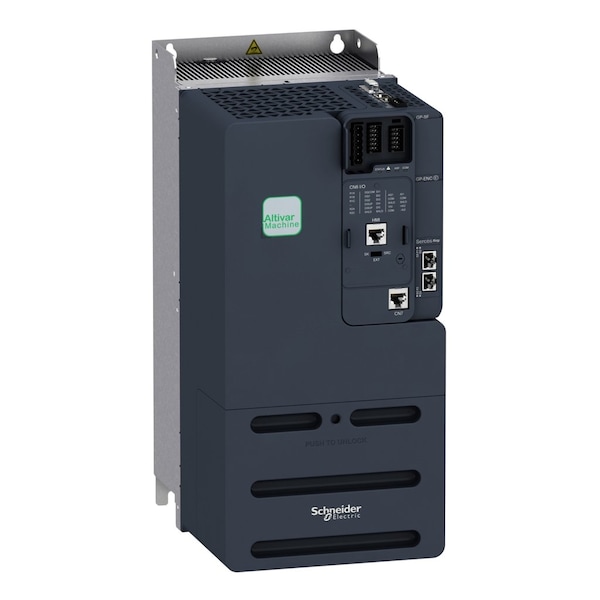

Schneider Electric Variable FrequencyDrive, 480V, Black/Green ATV340D22N4S - main

Variable FrequencyDrive, 480V, Black/Green

  • Mfr # ATV340D22N4S

  • Zoro # G013302396

product price: $4,455.99
/ea
Free Shipping & Returns

Key Features

Output Phase AC
Three
With Line Contactor / No Line Contactor
No Line Contactor
Adjustable Acceleration Time
0.01 to 9,999 sec
Input Voltage
480V
Display Type
Backlit LCD
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV340D22N4S
Zoro #
G013302396
UPC #
3606489497910
Country of Origin
Indonesia

Dimensions

Overall Height
15 1/8 in
Overall Width
7 1/8 in
Overall Depth
9 3/4 in

Details

Output Phase AC
Three
With Line Contactor / No Line Contactor
No Line Contactor
Adjustable Acceleration Time
0.01 to 9,999 sec
Input Voltage
480V
Display Type
Backlit LCD
Item
Variable Frequency Drive
Protection
Break on the Control Circuit Drive, DC Bus Overvoltage Drive, Exceeding Limit Speed Drive, Input Supply Loss Drive, Line Supply Overvoltage Drive, Line Supply Undervoltage Drive, Motor Phase Loss Drive, Motor Phase Loss Motor, Output Overcurrent Between Motor Phase and Earth Drive, Output Overcurrent Between Motor Phases Drive, Overcurrent Drive, Overheating Drive, Safe Torque Off Drive, Safe Torque Off Motor, Short-Circuit Between Motor Phase and Earth Drive, Short-Circuit Between Motor Phases Drive, Thermal Protection Drive, Thermal Protection Motor
Output Frequency Range
0.599 kHz
Control Type
Remote/Manual
Displays
Backlit LCD
Input Frequency
50/60 Hz
Start/Stop Control
Programmable
Control Method
Remote/Manual
Standards
C-Tick, CE Certified, CSA Certified, EAC, EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 13849-1, IEC 60721-3, IEC 61508, REACH Regulation, RoHS Compliant, UL 508C, UL 618000-5-1, UL Listed, UV
Adjustable Deceleration Time
0.01 to 9,999 sec
Output Voltage
480V AC
Enclosure
Open
With Bypass / No Bypass
No Bypass
Digital Readout
Output Current; Output Frequency; Output Voltage
Input Phase AC
Three
Dynamic Braking
Yes
Output Type
Analog, Digital
Output Voltage Range
380V AC to 480V AC
Application
Machine
Input Type
Analog, Digital
Ethernet Port Included
Yes
Torque Application
Constant Torque, Variable Torque
Brake Chopper Included
Yes
Number of Outputs
(2) Analog, (2) Digital
Number of Inputs
(2) Analog, (5) Digital
Input Voltage Range
380V AC to 480V AC
Enclosure Rating
IP21
Series
ATV340
Maximum Output Power
30 hp
Style
Compact
Color
Black/Green
Maximum Output Current
62 A

Description

Variable Frequency Drive, Input Voltage 480V, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 30 hp, Maximum Output Current 62 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.599 kHz, Enclosure Rating IP21
