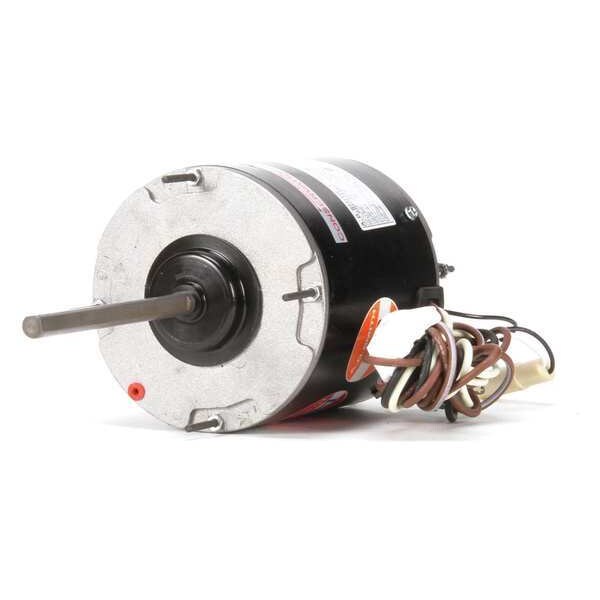

Direct Drive Blower Motor

  • Mfr # ORM5489BF
  • Zoro # G4485722
product price:
$
248.99
/ea
Free Shipping & Returns

Key Features

Length Less Shaft
6 1/2 in
Hz
60 Hz
Voltage
208V AC to 230V AC
Application
Condenser Fan
Motor Bearings
Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ORM5489BF
Zoro #
G4485722
UPC #
-
Country of Origin
India

Dimensions

Length Less Shaft
6 1/2 in
Mounting Stud Length
1 1/8 in
Shaft Length
6 1/2 in
Bolt Circle Dia.
5 1/8 in
Shaft Dia.
1/2 in
Manufacturers Warranty Length
1 yr
Stud Size
#8-32
Overall Length
13 in
Body Dia.
5 5/8 in
Lead Length
48 in
Body Diameter
5.6 in
Mounting Stud Thread Size
#8-32
Frame Size
48
Shaft Diameter
1/2 in
Bolt Circle Diameter
5 1/8 in
Wire Rope Length
13 in
Length
13 in

Details

Hz
60 Hz
Voltage
208V AC to 230V AC
Application
Condenser Fan
Motor Bearings
Ball
Full Load Amps
2.5 A
Frame
48
Motor Sub Application
Condenser Fan
Capacitor Required
Capacitor Not Included
Includes
Belly Band, Removable Base
Motor Application
HVAC/R
Motor Thermal Protection
Auto
Motor Mounting Position
All Angle
Motor Shaft Design
Double-Flat
Duty
Continuous
Mounting Stud Location
Both Ends
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Item
Condenser Fan Motor
Motor Service Factor
1
Max. Ambient Temp.
70 Degrees C
Motor Shaft Rotation
CW/CCW
HP
1/2 to 1/5
RPM Range
0-1,000
Motor Mounting Type
Stud
Ins. Class
F
Motor Design
Permanent Split Capacitor
Standards
CSA Certified, UL Recognized
Mounting Stud Pattern
5 1/8 in x 5 1/8 in
No. of Speeds
1
Phase
Single
Nameplate RPM
825
Motor Enclosure Design
Totally Enclosed Air-Over
Usable @ 208V
Usable at 208V
Weight
18 lb
Features
Drain Plug, Quick Change Rotation Plug
Removable Base
Yes
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Stud Quantity
4
Output Watts
370 W
Motor Flange Type
Non-Ventilated
Mounting
Stud
Product Type
Condenser Fan Motor
Mounting Position
All Angle
Ambient Temperature - Maximum
70 Degrees C
Full Load Current @ 60 Hz
2.5 A
Bearing Type
Ball
Drive Type
Direct Drive
Motor Enclosure Type
Totally Enclosed Air-Over
Insulation Class
F
Frequency
60 Hz
Manufacturers Warranty
1 yr
Sub Application
Condenser Fan
Nameplate Service Factor @ 60 Hz
1
Shaft Design
Double Flat
Number of Speeds
1
Flange Type
Non-Ventilated
Wattage
370 W
Frame Material
Steel

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp, 1/5 hp HP, Nameplate RPM 825 RPM, No. of Speeds 1, Voltage 208-230V AC, 2.5 A Full Load Amps, 48 Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
