  11. Variable FrequencyDrive, 480V, Black/Green

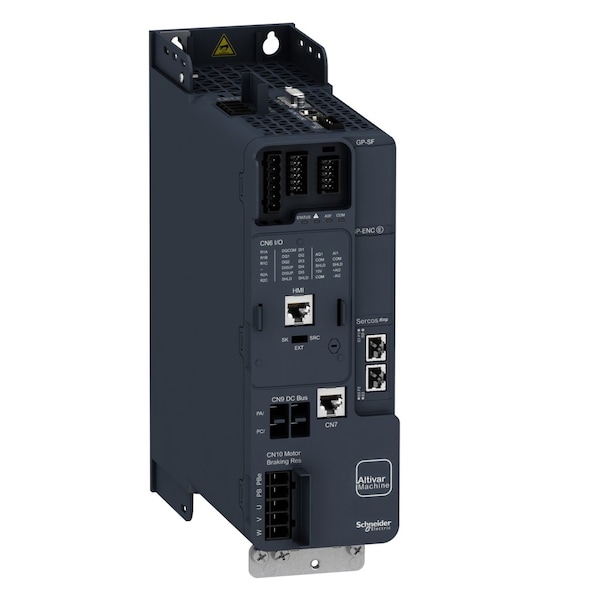

Schneider Electric Variable FrequencyDrive, 480V, Black/Green ATV340U22N4S - main

Variable FrequencyDrive, 480V, Black/Green

  • Mfr # ATV340U22N4S

  • Zoro # G113302371

product price: $1,857.99
/ea
Free Shipping & Returns

Key Features

With Line Contactor / No Line Contactor
No Line Contactor
Display Type
Backlit LCD
Start/Stop Control
Programmable
Input Phase AC
Three
Dynamic Braking
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV340U22N4S
Zoro #
G113302371
UPC #
3606489497835
Country of Origin
Indonesia

Dimensions

Overall Height
10 5/8 in
Overall Width
3 3/8 in
Overall Depth
9 1/8 in

Details

With Line Contactor / No Line Contactor
No Line Contactor
Display Type
Backlit LCD
Start/Stop Control
Programmable
Input Phase AC
Three
Dynamic Braking
Yes
With Bypass / No Bypass
No Bypass
Adjustable Deceleration Time
0.01 to 9,999 sec
Adjustable Acceleration Time
0.01 to 9,999 sec
Enclosure
Open
Control Method
Remote/Manual
Control Type
Remote/Manual
Protection
Break on the Control Circuit Drive, DC Bus Overvoltage Drive, Exceeding Limit Speed Drive, Input Supply Loss Drive, Line Supply Overvoltage Drive, Line Supply Undervoltage Drive, Motor Phase Loss Drive, Motor Phase Loss Motor, Output Overcurrent Between Motor Phase and Earth Drive, Output Overcurrent Between Motor Phases Drive, Overcurrent Drive, Overheating Drive, Safe Torque Off Drive, Safe Torque Off Motor, Short-Circuit Between Motor Phase and Earth Drive, Short-Circuit Between Motor Phases Drive, Thermal Protection Drive, Thermal Protection Motor
Output Phase AC
Three
Item
Variable Frequency Drive
Output Frequency Range
0.599 kHz
Output Voltage
480V AC
Displays
Backlit LCD
Input Frequency
50/60 Hz
Standards
C-Tick, CE Certified, CSA Certified, EAC, EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 13849-1, IEC 60721-3, IEC 61508, REACH Regulation, RoHS Compliant, UL 508C, UL 618000-5-1, UL Listed, UV
Input Voltage
480V
Digital Readout
Output Current; Output Frequency; Output Voltage
Application
Machine
Brake Chopper Included
Yes
Output Type
Analog, Digital
Enclosure Rating
IP21
Torque Application
Constant Torque, Variable Torque
Output Voltage Range
380V AC to 480V AC
Number of Inputs
(2) Analog, (5) Digital
Input Type
Analog, Digital
Input Voltage Range
380V AC to 480V AC
Ethernet Port Included
Yes
Number of Outputs
(2) Analog, (2) Digital
Series
ATV340
Maximum Output Current
7.2 A
Style
Compact
Maximum Output Power
3 hp
Color
Black/Green

Description

Variable Frequency Drive, Input Voltage 480V, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 3 hp, Maximum Output Current 7.2 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.599 kHz, Enclosure Rating IP21
