Shop CENTURY

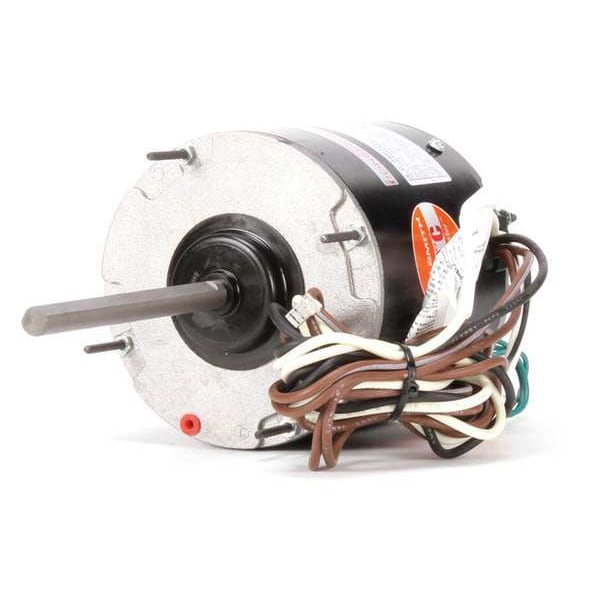

Motor, PSC, 1/2 HP, 1075,208-230V, 48, TEAO

  • Mfr # ORM5459BF

  • Zoro # G4485713

product price:  $145.99
/ea
Free Shipping & Returns

Key Features

Motor Mounting Type
Stud/Hole
Includes
(4) Extra Hex Nuts Polybag (555A19H01); (4)Screws ( 615982-001)
Voltage Compatibility
208V AC, 230V AC
Duty
Continuous
Motor Thermal Protection
Auto
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ORM5459BF
Zoro #
G4485713
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
6 1/2 in
Stud Size
8-32
Manufacturers Warranty Length
1 yr
Overall Length
13 in
Length Less Shaft
6 1/2 in
Mounting Stud Length
7/8 in, 1 1/8 in
Shaft Dia.
1/2 in
Body Dia.
5 5/8 in
Bolt Circle Dia.
5 1/8 in
Lead Length
48 in
Mounting Stud Thread Size
#8-32
Frame Size
48
Shaft Diameter
1/2 in
Bolt Circle Diameter
5 1/8 in
Body Diameter
5.6 in
Wire Rope Length
13 in

Details

Motor Mounting Type
Stud/Hole
Includes
(4) Extra Hex Nuts Polybag (555A19H01); (4)Screws ( 615982-001)
Voltage Compatibility
208V AC, 230V AC
Duty
Continuous
Motor Thermal Protection
Auto
Application
Condenser Fan
Mounting Stud Pattern
5 1/8 in x 5 1/8 in
HP
1/2 to 1/5
Capacitor Required
Capacitor Not Included
Motor Application
HVAC/R
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Shaft Design
Double-Flat
Full Load Amps
3.6 A
Mounting Stud Location
Both Ends
Item
Condenser Fan Motor
Frame
48
Ins. Class
F
RPM Range
1,001-1,100
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified, UL Listed
Motor Design
Permanent Split Capacitor
Motor Service Factor
1
Motor Sub Application
Condenser Fan
Voltage
208-230V AC
Phase
Single
Max. Ambient Temp.
70 Degrees C
Hz
60 Hz
No. of Speeds
1
Motor Bearings
Ball
Motor Mounting Position
All Angle
Nameplate RPM
1,075
Duty Cycle
Continuous
Usable @ 200V
No
Stud Quantity
4
Mounting Holes
4
Motor Frame Material
Steel
Number of Shafts
1
Usable @ 208V
Usable at 208V
Weight
17 lb
Number of Speeds
1
Mounting
Stud
Features
Energy Efficient
Shaft Design
Double Flat
Full Load Current @ 60 Hz
3.6 A
Drive Type
Direct Drive
Manufacturers Warranty
1 yr
Motor Enclosure Type
Totally Enclosed Air-Over
Nameplate Service Factor @ 60 Hz
1
Mounting Position
All Angle
Frequency
60 Hz
Frame Material
Steel
Wattage
370 W
Insulation Class
F
Bearing Type
Ball
Sub Application
Condenser Fan
Product Type
Condenser Fan Motor
Ambient Temperature - Maximum
70 Degrees C

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp, 1/5 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 3.6 A Full Load Amps, 48 Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
