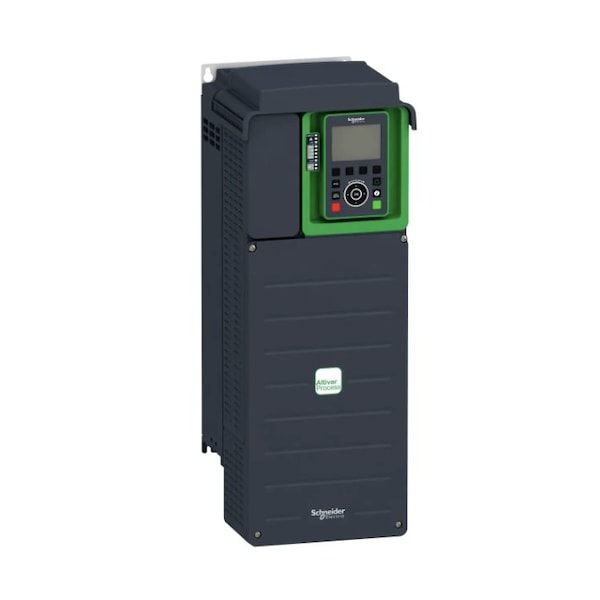

Schneider Electric Variable FrequencyDrive, 480V, Black/Green ATV930D18N4 - main

Variable FrequencyDrive, 480V, Black/Green

  • Mfr # ATV930D18N4

  • Zoro # G213328301

product price:  $5,702.99
/ea
Item requires special delivery charges. A $125.00 per item surcharge will be applied.

Key Features

Dynamic Braking
Yes
With Bypass / No Bypass
No Bypass
Input Phase AC
Three
Control Type
Local and Remote
Digital Readout
Output Current; Output Frequency; Output Voltage
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ATV930D18N4
Zoro #
G213328301
UPC #
3606480883347
Country of Origin
India

Dimensions

Overall Height
21 1/2 in
Overall Depth
9 1/4 in
Overall Width
8 1/4 in

Details

Dynamic Braking
Yes
With Bypass / No Bypass
No Bypass
Input Phase AC
Three
Control Type
Local and Remote
Digital Readout
Output Current; Output Frequency; Output Voltage
Adjustable Deceleration Time
0.01 to 9,999 sec
Adjustable Acceleration Time
0.01 to 9,999 sec
With Line Contactor / No Line Contactor
With Line Contactor
Protection
Break on the Control Circuit Drive, Line Supply Overvoltage Drive, Line Supply Phase Loss Drive, Line Supply Undervoltage Drive, Motor Phase Break Drive, Motor Phase Break Motor, Overcurrent Between Output Phases and Earth Drive, Overheating Drive, Overload of Output Voltage Drive, Overspeed Drive, Overvoltage's on the DC Bus Drive, Safe Torque Off Drive, Safe Torque Off Motor, Short-Circuit Protection Drive, Thermal Protection Drive, Thermal Protection Motor
Input Voltage
480V
Output Voltage
480V AC
Standards
CE Certified, CSA Certified, IEC 13849-1, IEC 60721-3, IEC 61000-3-12, IEC 61508, IEC 61800-3, IEC 61800-5-1, REACH Regulation, RoHS Compliant, UL 508C, UL Listed, UV, WEEE
Start/Stop Control
Programmable
Output Phase AC
Three
Output Frequency Range
599 Hz
Control Method
Local and Remote
Input Frequency
50/60 Hz
Enclosure
Open
Item
Variable Frequency Drive
Output Type
Analog, Digital
Input Voltage Range
380V AC to 480V AC
Number of Outputs
(2) Analog, (2) Digital
Output Voltage Range
380V AC to 480V AC
Number of Inputs
(10) Digital, (3) Analog
Brake Chopper Included
Yes
Torque Application
Constant Torque, Variable Torque
Application
Industrial
Ethernet Port Included
Yes
Series
ATV930
Input Type
Analog, Digital
Color
Black/Green
Maximum Output Current
39.2 A
Style
Compact
Enclosure Rating
IP21
Maximum Output Power
22 hp

Description

Variable Frequency Drive, Input Phase AC Three, Input Frequency 60/50 Hz, Maximum Output Power 22 hp, Maximum Output Current 39.2 A, Output Phase AC Three, Output Frequency Range 599 Hz, Enclosure Rating IP21
