  11. Variable FrequencyDrive, 500V, Black/Green

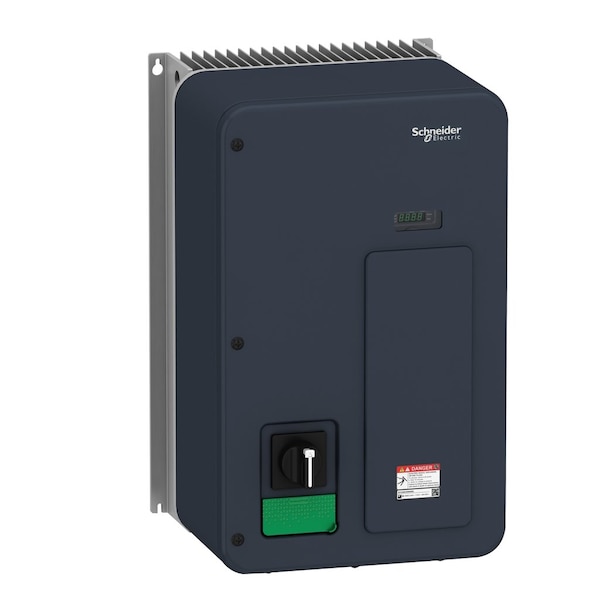

Schneider Electric Variable FrequencyDrive, 500V, Black/Green ATV320U75N4WS - main

Variable FrequencyDrive, 500V, Black/Green

  • Mfr # ATV320U75N4WS

  • Zoro # G313302379

product price: $2,424.99
/ea
Item requires special delivery charges. A $110.00 per item surcharge will be applied.

Key Features

Output Frequency Range
0.599 kHz
Start/Stop Control
Programmable
With Bypass / No Bypass
No Bypass
Digital Readout
Output Current; Output Frequency; Output Voltage
Input Frequency
50/60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV320U75N4WS
Zoro #
G313302379
UPC #
3606489548728
Country of Origin
United States

Dimensions

Overall Depth
13 1/4 in
Overall Width
12 5/8 in
Overall Height
20 1/2 in

Details

Output Frequency Range
0.599 kHz
Start/Stop Control
Programmable
With Bypass / No Bypass
No Bypass
Digital Readout
Output Current; Output Frequency; Output Voltage
Input Frequency
50/60 Hz
Dynamic Braking
Yes
Output Voltage
500V AC
Output Phase AC
Three
Input Phase AC
Three
Control Method
Remote
Display Type
LED
Enclosure
Totally Enclosed
Input Voltage
500V
Protection
Input Phase Breaks Drive, Overcurrent Between Output Phases and Earth Drive, Overheating Protection Drive, Short-Circuit Between Motor Phases Drive, Thermal Protection Drive
Control Type
Remote
Item
Variable Frequency Drive
Displays
LED
With Line Contactor / No Line Contactor
With Line Contactor
Standards
ATEX, CE Certified, CSA Certified, EAC, GOST, IEC 61800-5-1, KC, NOM, RCM, REACH Regulation, RoHS Compliant, UL Listed
Series
ATV320
Enclosure Rating
IP65
Maximum Output Current
17 A
Input Type
Analog, Digital
Input Voltage Range
380V AC to 500V AC
Number of Inputs
(3) Analog, (7) Digital
Application
Complex Machines
Brake Chopper Included
Yes
Ethernet Port Included
Yes
Output Voltage Range
380V AC to 500V AC
Number of Outputs
(1) Analog, (3) Digital
Output Type
Analog, Digital
Style
Compact
Color
Black/Green
Maximum Output Power
10 hp
Torque Application
Constant Torque, Variable Torque

Description

Variable Frequency Drive, Input Voltage 500V, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 10 hp, Maximum Output Current 17 A, Output Voltage 500V AC, Output Phase AC Three, Output Frequency Range 0.599 kHz, Enclosure Rating IP65
