  11. Variable Speed Drive, 7.25" H, 200 to 240V

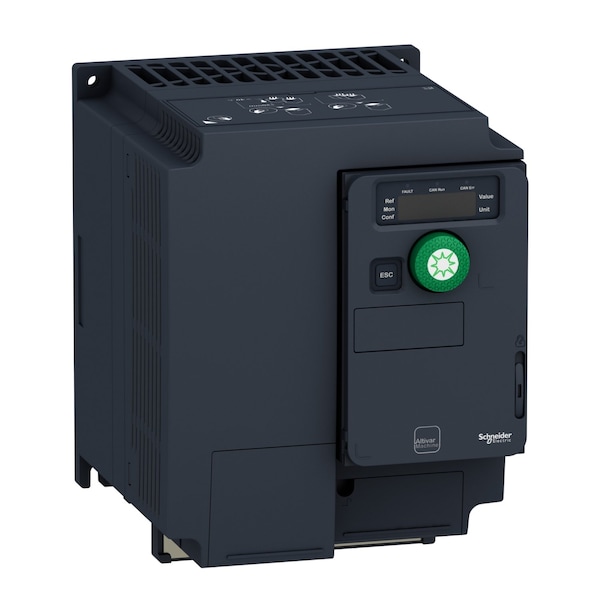

Schneider Electric Variable Speed Drive, 7.25" H, 200 to 240V ATV320U40M3C412 - main

Variable Speed Drive, 7.25" H, 200 to 240V

  • Mfr # ATV320U40M3C412

  • Zoro # G416312961

product price: $957.99
/ea
Free Shipping & Returns

Key Features

Control Method
Remote
Adjustable Acceleration Time
0.01 to 6,000 sec
Input Phase AC
Three
Application
Pumping
Enclosure
Totally Enclosed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV320U40M3C412
Zoro #
G416312961
UPC #
3606486835807
Country of Origin
Indonesia

Dimensions

Overall Width
5 1/2 in
Overall Depth
6 1/4 in
Overall Height
7 1/4 in

Details

Control Method
Remote
Adjustable Acceleration Time
0.01 to 6,000 sec
Input Phase AC
Three
Application
Pumping
Enclosure
Totally Enclosed
Start/Stop Control
Manual
Standards
IEC 61800-5-1
Output Phase AC
Three
Digital Readout
Output Current
Input Voltage
200 to 240V
Accepts Input Control Signal
Remote Contact
Item
Variable Speed Drive
Display Type
LED
Displays
LED
Protection
Input Phase Breaks Drive, Overcurrent Between Output Phases and Earth Drive, Overheating Protection Drive, Short-Circuit Between Motor Phases Drive, Thermal Protection
Control Type
Remote
Input Frequency
50 to 60 Hz
With Line Contactor / No Line Contactor
No Line Contactor
With Bypass / No Bypass
No Bypass
Adjustable Deceleration Time
0.01 to 6,000 sec
Output Voltage
240V
Output Frequency Range
0 to 0.599 kHz
Maximum Output Current
17.5 A
Output Type
Analog, Digital
Series
Altivar Solar
Torque Application
Variable Torque
Number of Outputs
(2) Relay; (3) Discrete; Analog
Number of Inputs
(3) Analog; (7) Discrete
Enclosure Rating
IP20
Input Type
Analog, Digital
Style
Compact
Brake Chopper Included
Yes
Maximum Output Power
5 hp

Description

Variable Speed Drive, Input Voltage 200 to 240V, Input Phase AC Three, Input Frequency 50 to 60 Hz, Maximum Output Power 5 hp, Maximum Output Current 17.5 A, Output Voltage 240V, Output Phase AC Three, Output Frequency Range 0 to 0.599 kHz, Enclosure Rating IP20

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
