Fasco

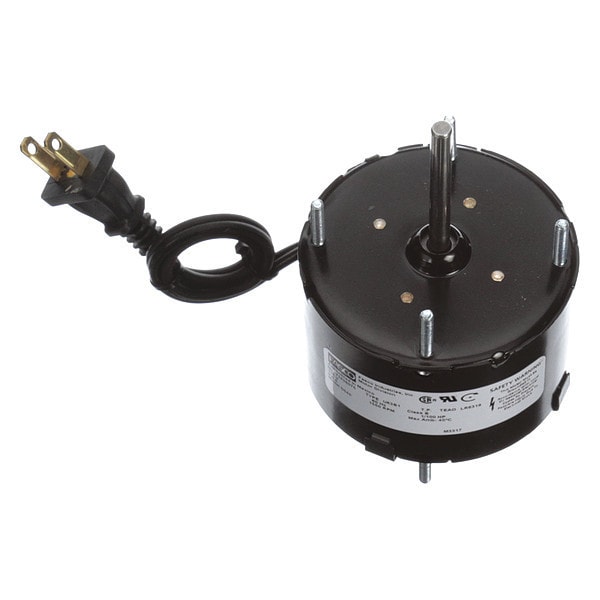

HVAC Motor, TEAO, 1/100 HP, 1550 rpm, Stud

product price: $53.75
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 115V AC
  • Nameplate RPM 1,550
  • Motor Enclosure Design Totally Enclosed Air-Over
  • Number of Speeds 1
  • HP 1/100
See all product information

Product Information

Dimensions

Shaft Dia. 1/4 in
Shaft Length 2 1/4 in
Length Less Shaft 2 11/16 in
Cord Length 13 in
Body Dia. 3 5/16 in
Lead Length 12 in
Stud Size #8-32
Bolt Circle Dia. 2 7/8 in
Overall Length 4 3/4 in

Details

Voltage 115V AC
Nameplate RPM 1,550
Motor Enclosure Design Totally Enclosed Air-Over
Number of Speeds 1
HP 1/100
RPM Range 1,501-1,600
No. of Speeds 1
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Application HVAC/R
Number of Shafts 1
Stud/Base Mtg. Pattern 2-27/32 in x 90 Degrees
Motor Sub Application OEM Replacement
Application General Application
Motor Shaft Design Flat
Standards CSA Certified, UL Recognized
Motor Service Factor 1
Plug Type 2 Prong Non-Polarized
Max. Ambient Temp. 40 Degrees C
Motor Shaft Rotation CWSE
Ins. Class B
Motor Mounting Type Stud
Duty Continuous
Phase Single
Motor Bearings Sleeve
Motor Thermal Protection Auto
Motor Design Shaded Pole
Hz 60 Hz
Item OEM Replacement Motor
Mounting Stud Location 4/Both Ends
Frame 3.3
Full Load Amps 0.6 A
Capacitor Required No
Weight 2 lb
Mounting Holes (8) #8-32
Motor Frame Material Steel
Usable @ 208V No
Usable @ 200V No
Mounting Stud

Description

OEM Replacement Motor, Single Phase, Motor Design Shaded Pole, 1/100 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, Full Load Amps 0.6 A, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CWSE, Max. Ambient Temp. 40 Degrees C, Lead Length 12 in, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Number of Shafts 1
