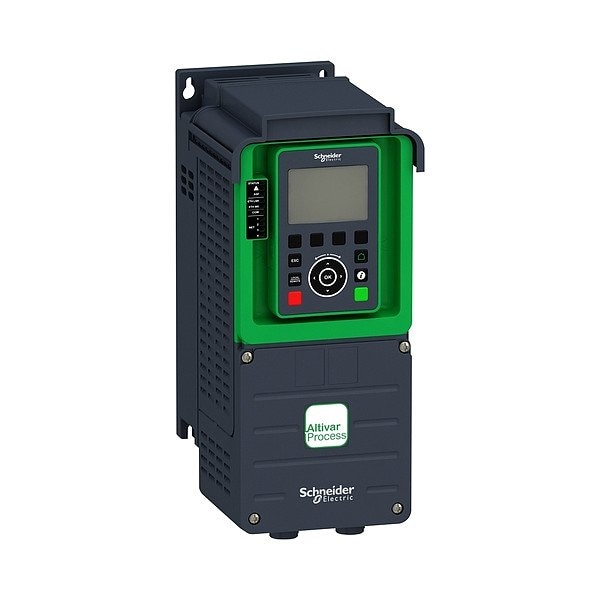

Variable Speed Drive, Black/Green

Mfr # ATV630U07M3US
Zoro # G422796960

1,953.99

Free Shipping & Returns

Key Features

Includes EMI Filter

Color

Black/Green

Number of Inputs - Digital

Overall Depth

203 mm

Accepts External Control Inputs

Yes

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: ATV630U07M3US
Zoro #: G422796960
UPC #: -
Country of Origin: United States

Dimensions

Overall Depth: 203 mm
Overall Height: 350 mm
Overall Width: 144 mm

Details

Includes EMI Filter: No
Color: Black/Green
Number of Inputs - Digital: 8
Accepts External Control Inputs: Yes
Item: Variable Speed Drive
Input Voltage: 200-240V AC
Output Phase: Three
Output Current - Maximum: 4.6 A
Style: Chassis
Torque Application: Constant Torque, Variable Torque
Dynamic Braking: No
Number of Inputs - Analog: 3
Communication Protocols Supported: EtherNet, Modbus Serial, Modbus TCP
Includes Ethernet Port: Yes
Input Frequency: 60/50 Hz
Line Contactor Design: With Line Contactor
Input Phase: Three
Number of Outputs - Relay: 3
Output Type: Analog, Digital, Relay
Control Type: PLC
Output Frequency - Maximum: 500 Hz
Bypass Design: No Bypass
Output Horsepower: 1/2 hp, 1 hp
Adjustable Acceleration Time: 0.01 to 9999 sec
Output Voltage: 200-240V AC
Input Type: Analog, Digital
Standards: ATEX INERIS, ATEX Zone 2/22, CE, CSA, DNV-GL, EN/IEC 61800-3 Environment 2 Category C3, IEC 13849-1, IEC 60721-3, IEC 61000-3-12, IEC 61508, IEC 61800-3, IEC 61800-3 Environment 1 Category C2, IEC 61800-5-1, TUV, UL, UL 508C
Number of Outputs - Analog: 2
Includes Communication Port: Yes
Output Frequency - Minimum: 0.1 Hz
Start/Stop Control: Programmable
Protection: Circuit Breaker, Drive Thermal Overload, Overspeed, Overvoltage, Phase Failure, Phase to Phase or Phase to Ground Short Circuit, Safe Torque Off, Undervoltage
Series: Altivar Process ATV600
Includes Brake Chopper: No
Product Type: Variable Frequency Drive
Application: Process and Utilities
Number of Outputs - Digital: 0
Adjustable Deceleration Time: 0.01 to 9999 sec
Output Power - Kilowatt - Maximum: 0.37 kW, 0.75 kW
IP Rating: IP21

Description

Variable Speed Drive, Input Voltage 200-240V AC, Input Frequency 60/50 Hz, Output Voltage 200-240V AC
