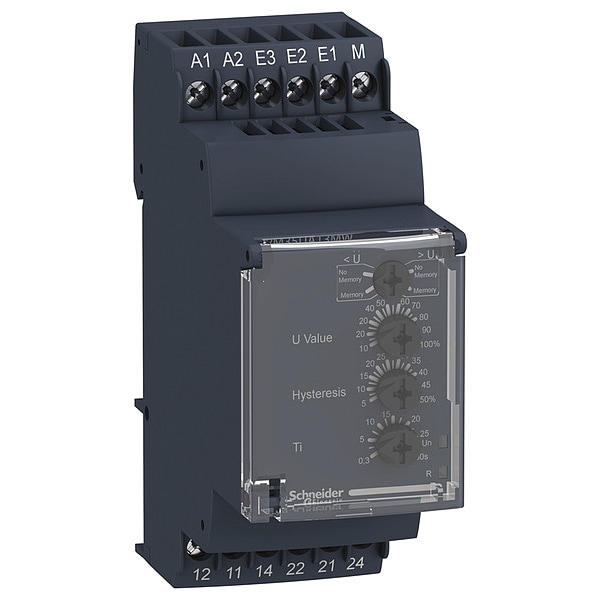

VoltSensingRely, 5A, 24-240VAC/DC, 12Pin

  • Mfr # RM35UA11MW
  • Zoro # G3462533
product price:
$
173.99
/ea
Free Shipping & Returns

Key Features

Item - Relay
Voltage Sensing Relay
Input or Control Voltage
24V AC to 240V AC, 24V DC to 240V DC
AC Contact Rating - Relay
5A @ 24/240V
DC Contact Rating - Relay
5A @ 24 to 240V
Number of Pins - Relay
6
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RM35UA11MW
Zoro #
G3462533
UPC #
785901597230
Country of Origin
Indonesia

Dimensions

Overall Height - Relay
3.65 in
Body Depth - Relay
2.84 in
Body Height - Relay
3.54 in
Body Width - Relay
1.38 in
Body Width
1.38 in
Body Depth
2.84 in
Body Height
3.54 in
Overall Depth
2.84 in
Width
35 mm

Details

Item - Relay
Voltage Sensing Relay
Input or Control Voltage
24V AC to 240V AC, 24V DC to 240V DC
AC Contact Rating - Relay
5A @ 24/240V
DC Contact Rating - Relay
5A @ 24 to 240V
Number of Pins - Relay
6
Mounting - Relay
DIN Rail
Pick Up Range
20.4 to 264V AC/DC
Drop-Out Range
+/- 10%
Trip Delay
0.30 to 30 sec
Input Voltage
24V AC to 240V AC, 24V DC to 240V DC
Item
Voltage Sensing Relay
Minimum Switching Current
10 mA
Weight
0.08 kg
Maximum Operating Temperature
158 Degrees F
Monitored Parameters
Overcurrent, Undercurrent
Power Consumption
3.5 VA
Maximum Switching Voltage
250V AC/DC
Contact Rating (AC)
5 A @ 24/240V
Maximum Switching Capacity
1,250 VA
Number of Pins
12
IP Rating
IP20; IP30
Current Rating
5 A
Maximum Switching Current
5 A
Base Shape
Square
Standards
C-Tick, CSA Certified, EN/IEC 60255-6, GL, GOST, UL Listed
Mounting Style
DIN Rail
Mechanical Operating Durability
30,000,000
Minimum Operating Temperature
-40 Degrees F
Contact Rating (DC)
5 A @ 24 to 240V
Utilisation Category
AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || DC-14 IEC 60947-5-1
Local Signalling
for power ON LED (green) || for relay ON LED (yellow)
Relay Type
multifunction voltage control relay
Non-Dissipating Shock Wave
4 kV IEC 60255-5 || 4 kV IEC 60664-1 || 4 kV IEC 61000-4-5
Power Consumption In Va
0-3.5 VA AC
Measurement Error
+/- 0.05 %/°C with temperature variation || < 1 % over the whole range with voltage variation
Repeat Accuracy
+/- 0.5 % input and measurement circuit || +/- 2 % time delay
Output Contacts
2 C/O
Threshold Setting
10...100 %
Mounting Support
35 mm symmetrical DIN rail conforming to EN/IEC 60715
Product Certifications
GOST || CSA || GL || UL || C-tick
Operating Rate
<= 360 operations/hour full load
Maximum Measuring Cycle
30 ms measurement cycle as true rms value
[Ui] Rated Insulation Voltage
250 V IEC 60664-1 || 600 V IEC 60664-1
Hysteresis
5-50 % threshold setting
Control Circuit Frequency
40...70 Hz +/- 10 %
Sensitivity Scale
0.05...0.5 V E1-M terminals || 0.3...3 V E2-M terminals || 0.5...5 V E3-M terminals
Resistance Across Terminals
30 mOhm E2-M terminals || 5 mOhm E1-M terminals || 50 mOhm E3-M terminals
Ip Degree Of Protection
IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
Contacts Type And Composition
2 C/O
Vibration Resistance
0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1
Tightening Torque
0.6-1 N.m IEC 60947-1
Measurement Accuracy
+/- 10 % of the full scale value
Run-Up Delay At Power-Up
600 ms
Ambient Air Temperature For Storage
-40-70°C
Insulation Resistance
> 500 MOhm 500 V DC between supply and relay output IEC 60255-5 || > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 || > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 || > 500 MOhm 500 V DC between supply and relay output IEC 60664-1 || > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5 || > 1 MOhm 500 V DC between supply and measurement IEC 60664-1
Relative Humidity
95-95 % 55-55°C IEC 60068-2-30
Supply Voltage Limits
20.4-264 V AC/DC
Polarity
non reversible polarity on DC supply
Reset Time
1500 ms time delay
Electromagnetic Compatibility
emission standard for industrial environments EN/IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || immunity for industrial environments NF EN/IEC 61000-6-2
Operating Position
any position without derating
Maximum Power Consumption In W
0.6 W DC
Relay Monitored Parameters
overvoltage or undervoltage detection
Measurement Range
0.05...5 V voltage
Control Circuit Voltage Limits
15 % + 10 % Un
Product Or Component Type
voltage control relay
Nominal Output Current
5A
Connections - Terminals
screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...2 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Compatibility Code
RM3
Shock Resistance
5 gn IEC 60068-2-27
Quality Labels
CE
Electrical Durability
100000 cycles
Switching Capacity In Va
1250 VA
Ambient Air Temperature For Operation
-20-50°C
Relay Name
RM35UA
[Us] Rated Supply Voltage
24...240 V AC/DC 50/60 Hz +/- 10 %
Pollution Degree
3 IEC 60664-1
Time Delay Type
adjustable 0.3...30 s, 0 + 10 % on crossing the threshold
Immunity To Microbreaks
10 ms
Housing Material
self-extinguishing plastic
Mechanical Durability
30000000 cycles
Dielectric Test Voltage
2 kV AC 50 Hz, 1 min IEC 60255-5 || 2 kV AC 50 Hz, 1 min IEC 60664-1
Overvoltage Category
III IEC 60664-1

Description

Voltage Sensing Relay, Base Shape Square, Current Rating 5 A, Input Voltage 24 to 240V AC/DC, Pick Up Range 20.4 to 264V AC/DC, Drop-Out Range +/- 10 Percent, Monitored Parameters Overcurrent, Undercurrent, Number of Pins 12, Contact Rating (AC) 5 A @ 24/240V, Contact Rating (DC) 5 A @ 24 to 240V, IP Rating IP20; IP30, Mounting Style DIN Rail, Body Depth 2.84 in, Body Height 3.54 in, Body Width 1.38 in, Maximum Operating Temperature 158 Degrees F, Maximum Switching Capacity 1,250 VA
