Item - Relay

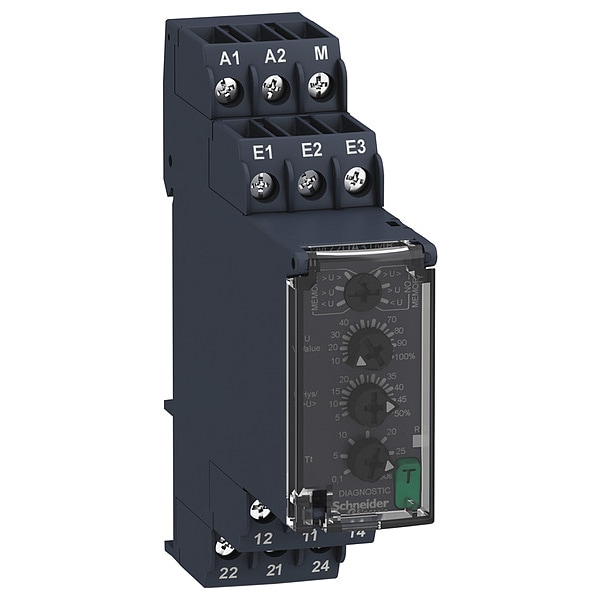

Voltage Sensing Relay
Input or Control Voltage
24 to 240V AC/DC
AC Contact Rating - Relay
8A @ 24/240V
Mounting - Relay
DIN Rail
Pick Up Range
20.4 to 264V AC/DC
Item
Voltage Sensing Relay
Input Voltage
24 to 240V AC/DC
Trip Delay
0.10 to 30 sec
Contact Rating (AC)
8 A @ 24/240V
Minimum Operating Temperature
-40 Degrees F
Minimum Switching Current
10 mA
Monitored Parameters
Overcurrent, Undercurrent
Maximum Switching Current
8 A
IP Rating
IP20; IP40; IP50
Standards
CCC, CE Certified, CSA Certified, EAC, EN/IEC 60255-1, GL, RCM, UL Listed
Maximum Operating Temperature
158 Degrees F
Maximum Switching Capacity
2,000 VA
Maximum Switching Voltage
250V AC
Mechanical Operating Durability
10,000,000
Power Consumption In Va
3.5-3.5 VA AC
Ambient Air Temperature For Operation
-20-50°C 60 Hz || -20-60°C 50 Hz
Resistance Across Terminals
110 kOhm E2-M terminals || 22 kOhm E1-M terminals || 220 kOhm E3-M terminals
Switching Capacity In Va
2000 VA
Shock Resistance
15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
Maximum Measuring Cycle
100 ms measurement cycle as true rms value
Repeat Accuracy
+/- 0.5 % input and measurement circuit || +/- 2 % time delay
Relay Type
voltage control relay
Measurement Error
< 1 % over the whole range with voltage variation || 0.05 %/°C with temperature variation
Relative Humidity
93-97 % 25-55°C IEC 60068-2-30
Vibration Resistance
0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
Mounting Support
35 mm DIN rail conforming to EN/IEC 60715
Time Delay Type
adjustable 0.1...30 s, +/- 10 % of the full scale value on crossing the threshold Tt
Contacts Type And Composition
2 C/O
Relay Monitored Parameters
undervoltage and overvoltage in window mode || overvoltage or undervoltage detection
Electromagnetic Compatibility
immunity for residential, commercial and light-industrial environments EN/IEC 61000-6-1 || immunity for industrial environments EN/IEC 61000-6-2 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || emission standard for industrial environments EN/IEC 61000-6-4 || electrostatic discharge 6 kV contact discharge)level 3 IEC 61000-4-2 || electrostatic discharge 8 kV air discharge)level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test 10 V/mlevel 3 IEC 61000-4-3 || electrical fast transient/burst immunity test 4 kV direct)level 4 IEC 61000-4-4 || electrical fast transient/burst immunity test 2 kV capacitive coupling)level 4 IEC 61000-4-4 || surge immunity test 4 kV common mode)level 4 IEC 61000-4-5 || surge immunity test 2 kV differential mode)level 4 IEC 61000-4-5 || conducted and radiated emissionsclass B group 1 CISPR 11 || conducted and radiated emissionsclass B CISPR 22
Insulation Resistance
> 100 MOhm 500 V DC
Supply Voltage Limits
20.4-264 V AC/DC
Immunity To Microbreaks
10 ms
Mechanical Durability
10000000 cycles
Product Or Component Type
voltage control relay
Measurement Range
1...100 V voltage AC/DC 50/60 Hz
Contacts Material
cadmium free
Utilisation Category
AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1
Housing Material
self-extinguishing plastic
Ip Degree Of Protection
IP20 IEC 60529 terminals) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)
Ambient Air Temperature For Storage
-40-70°C
Hysteresis
3-3 % fixed full scale for window mode || 5-50 % adjustable threshold setting
Tightening Torque
0.6-1 N.m IEC 60947-1
Product Certifications
GL || UL || CCC || EAC || CE || RCM || CSA
Maximum Power Consumption In W
1.5 W DC
Reset Time
1500 ms at maximum voltage
Connections - Terminals
screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
Run-Up Delay At Power-Up
600 ms
Functionality
undervoltage and overvoltage in window mode
Dielectric Test Voltage
2.5 kV AC 50 Hz, 1 min IEC 60255-27
[Us] Rated Supply Voltage
24...240 V AC/DC 50/60 Hz
Pollution Degree
3 IEC 60664-1
Insulation
between supply and measurement
Nominal Output Current
8A
Electrical Durability
100000 cycles
Overvoltage Category
III IEC 60664-1
