  7. VoltageSensingRelay, 12 Pins, 120-277VAC

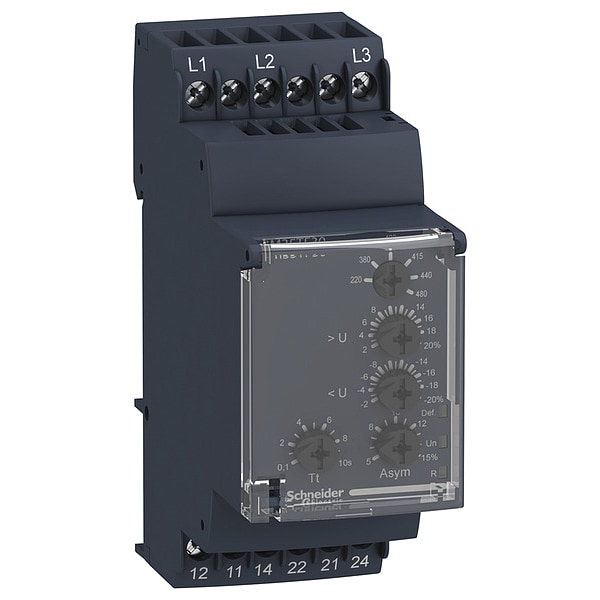

Schneider Electric VoltageSensingRelay, 12 Pins, 120-277VAC RM35UB3N30 - main

VoltageSensingRelay, 12 Pins, 120-277VAC

  • Mfr # RM35UB3N30

  • Zoro # G3460327

product price:  $279.99
/ea
Free Shipping & Returns

Key Features

Item - Relay
Voltage Sensing Relay
AC Contact Rating - Relay
5A @ 120/240V
DC Contact Rating - Relay
5A @ 250V
Number of Pins - Relay
6
Mounting - Relay
DIN Rail
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RM35UB3N30
Zoro #
G3460327
UPC #
785901696629
Country of Origin
Indonesia

Dimensions

Body Depth - Relay
2.84 in
Body Width - Relay
1.38 in
Overall Height - Relay
3.65 in
Body Height - Relay
3.54 in
Body Depth
2.84 in
Body Width
1.38 in
Body Height
3.54 in
Overall Depth
2.84 in
Width
35 mm

Details

Item - Relay
Voltage Sensing Relay
AC Contact Rating - Relay
5A @ 120/240V
DC Contact Rating - Relay
5A @ 250V
Number of Pins - Relay
6
Mounting - Relay
DIN Rail
Restart Time Delay
1.5 sec
Input Voltage
120 to 277V AC
Restart
Auto
Contact Form
DPDT
Item
Voltage Sensing Relay
Minimum Operating Temperature
-4 Degrees F
Monitored Parameters
Absence of Neutral, Overvoltage, Undervoltage
Maximum Operating Temperature
122 Degrees F
Current Rating
5 A
Maximum Switching Voltage
250V AC/DC
Mechanical Operating Durability
30,000,000
Frequency
50/60 Hz
IP Rating
IP30
Electrical Operating Durability
100,000
Number of Pins
12
Maximum Switching Capacity
1,250 VA
Weight
4.64 oz
Housing Material
Plastic
Contact Rating (AC)
5 A @ 120/240V
Mounting Style
DIN Rail
Contact Rating (DC)
5 A @ 250V
Power Consumption
1,250 VA
Minimum Switching Current
10 mA
Standards
C-Tick, CSA Certified, EN/IEC 60255-1, EN/IEC 61000-6-4, EU RoHS, GL, GOST, Reach Regulation, UL Listed
Maximum Switching Current
5 A
Base Shape
Square
Operating Position
any position without derating
Hysteresis
2-2 %
Nominal Output Current
5A
Mounting Support
35 mm symmetrical DIN rail conforming to EN/IEC 60715
Output Contacts
1 C/O + 1 C/O, 1 per threshold
Ambient Air Temperature For Operation
-20-50°C
Product Specific Application
for 3-phase supply
Reset Time
1500 ms time delay
Measurement Range
114...329 V voltage AC 50/60 Hz
Relay Monitored Parameters
absence of neutral || overvoltage and undervoltage between phases || overvoltage and undervoltage between neutral
Insulation Resistance
> 500 MOhm 500 V DC IEC 60255-5 || > 500 MOhm 500 V DC IEC 60664-1
Non-Dissipating Shock Wave
4 kV
[Us] Rated Supply Voltage
120...277 V AC 50/60 Hz +/- 10 %
Ambient Air Temperature For Storage
-40-70°C
Operating Rate
<= 360 operations/hour full load
Vibration Resistance
0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1
Local Signalling
for power ON LED (green) || for relay ON LED (yellow)
Product Or Component Type
voltage control relay
Measurement Error
< 1 % over the whole range with voltage variation || 0.05 %/°C with temperature variation
Response Time
< 200 ms (in the event of a fault)
Run-Up Delay At Power-Up
650 ms
Quality Labels
CE
Voltage Detection Threshold
114 V
Contacts Type And Composition
2 C/O
Product Certifications
UL || C-tick || GL || CSA || GOST
Electrical Durability
10000 cycles
Relative Humidity
95-95 % 55-55°C IEC 60068-2-30
Shock Resistance
5 gn IEC 60068-2-27
Maximum Measuring Cycle
150 ms measurement cycle as true rms value
Measurement Accuracy
+/- 10 % of the full scale value
Pollution Degree
3 IEC 60664-1
Control Circuit Frequency
50...60 Hz +/- 15 %
Power Consumption In Va
0-3.9 VA AC
Mechanical Durability
30000000 cycles
Switching Capacity In Va
1250 VA
Utilisation Category
AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || DC-14 IEC 60947-5-1
Tightening Torque
0.6-1 N.m IEC 60947-1
Compatibility Code
RM3
Ip Degree Of Protection
IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
Relay Name
RM35UB3
Supply Voltage Limits
114-329 V AC
[Ui] Rated Insulation Voltage
400 V IEC 60664-1
Dielectric Test Voltage
2 kV AC 50 Hz, 1 min
Time Delay Type
adjustable 0.3...30 s, 0 + 10 % on crossing the threshold
Functionality
overvoltage and undervoltage detection
Relay Type
voltage control relay
Electromagnetic Compatibility
emission standard for industrial environments EN/IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || immunity for industrial environments NF EN/IEC 61000-6-2
Repeat Accuracy
+/- 0.5 % input and measurement circuit || +/- 1 % time delay
Overvoltage Category
III IEC 60664-1
Connections - Terminals
screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...2 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
