  6. Fixture Mount Sensor, Occupancy, Photocell, 0 to 10V Dimming, Hard Wired, White, 2,463 sq ft, Fluorescent, Incandescent, LED

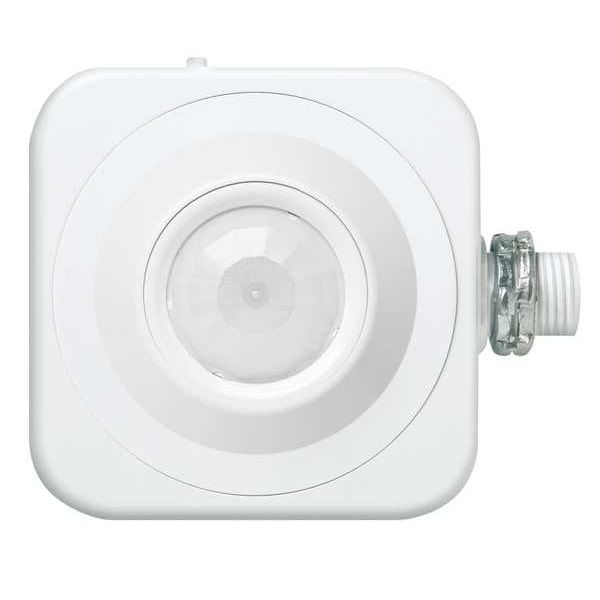

Sensorswitch Fixture Mount Sensor, Occupancy, Photocell, 0 to 10V Dimming, Hard Wired, White, 2,463 sq ft, Fluorescent, Incandescent, LED CMRB 10 - main

Fixture Mount Sensor, Occupancy, Photocell, 0 to 10V Dimming, Hard Wired, White, 2,463 sq ft, Fluorescent, Incandescent, LED

  • Mfr # CMRB 10

  • Zoro # G2110211

product price:  $113.99
/ea
Free Shipping & Returns

Key Features

Lighting Technology
Fluorescent, Incandescent, LED
Sensing Technology
Passive Infrared (PIR)
Sensor Operation
Occupancy, Photocell, 0 to 10V Dimming
Standards
cUL Listed, RoHS Compliant
Time Delay
30 sec to 20 min
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
CMRB 10
Zoro #
G2110211
UPC #
745975808298
Country of Origin
Mexico

Dimensions

Overall Depth
1.55 in
Overall Width
4.55 in
Minimum Mounting Height
7 ft
Maximum Mounting Height
15 ft

Details

Lighting Technology
Fluorescent, Incandescent, LED
Sensing Technology
Passive Infrared (PIR)
Sensor Operation
Occupancy, Photocell, 0 to 10V Dimming
Standards
cUL Listed, RoHS Compliant
Item
Occupancy Sensor
Time Delay
30 sec to 20 min
For Use With
Fluorescent and Incandescent Lighting Loads
Coverage Angle - Motion Sensor
360 Degrees
Color
White
Viewing Angle
360 Degrees
Watts @ 277V
1200
Max. Capacity @ 120VAC
800W (Fluorescent, Incandescent)
Max. Capacity @ 277VAC
1200W (Fluorescent, Incandescent)
Watts @ 120V
800
Communication Method
Hard Wired
Wall Plate
Not Included
Series
CMRB
Time Delay Adjustment Method
Adaptive, Manual
Manufacturer Warranty
5 yr Limited
Maximum Time Delay
20 min
Load Rating @ 120V AC
800W/6.67A, Incandescent
Minimum Operating Temperature
14 Degrees F
Installation Location
Fixture Mount
Minimum Time Delay
30 sec
Load Rating @ 277V AC
1,200W (Fluorescent, Incandescent)
Maximum Coverage Area
2,463 sq ft
Maximum Operating Temperature
185 Degrees F
Coverage Type
Large Motion
Application Type
Automotive & Parking, Education, Government, Healthcare, Roadways, Bridges & Tunnels, Sports and Recreation, Transportation, Warehouses, Hospitality, House of Worship, Manufacturing, Offices & Banks, Power & Gas, Residential, Retail
Environmental Listing
High Humidity
Control Protocol
0-10V
Finish
Gloss
Operating Voltage
120/277/230V AC

Description

Occupancy Sensor, Sensing Technology Passive Infrared (PIR), Operating Voltage 120/277/230V AC, Maximum Coverage Area 2,463 sq ft, Maximum Mounting Height 15 ft, Load Rating @ 120V AC 800W/6.67A (Incandescent), Communication Method Hard Wired, Color White, Includes Not Applicable, Sensor Operation Occupancy, Lighting Technology Fluorescent, Incandescent, LED, Installation Location Fixture, Standards cUL Listed, RoHS Compliant, Overall Diameter Not Applicable
