  11. Wall Mount Sensor, Occupancy, Photocell, Hard Wired, White, 2,000 sq ft, Fluorescent, Incandescent, LED

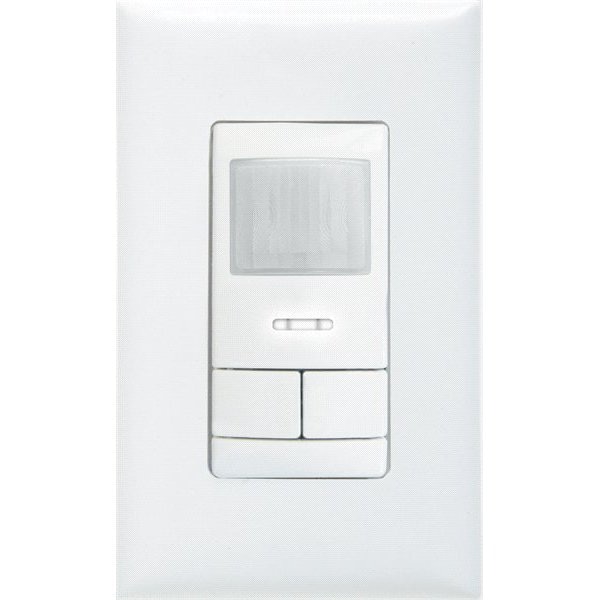

Sensorswitch Wall Mount Sensor, Occupancy, Photocell, Hard Wired, White, 2,000 sq ft, Fluorescent, Incandescent, LED WSX PDT WH - main

Wall Mount Sensor, Occupancy, Photocell, Hard Wired, White, 2,000 sq ft, Fluorescent, Incandescent, LED

  • Mfr # WSX PDT WH

  • Zoro # G6098775

product price: $104.99
/ea
Free Shipping & Returns

Key Features

Sensing Technology
Passive Infrared (PIR)/Microphonic
Time Delay Adjustment Method - Motion Sensor
Adjustable
Time Delay - Motion Sensor
30 sec to 30 min
Max. Capacity @ 277VAC
1200W (Incandescent)
Watts @ 120V
800
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WSX PDT WH
Zoro #
G6098775
UPC #
00753573767510
Country of Origin
Mexico

Dimensions

Overall Depth
1.63 in
Overall Height
2.74 in
Minimum Mounting Height
30 in
Overall Width
1.68 in
Maximum Mounting Height
4 ft

Details

Sensing Technology
Passive Infrared (PIR)/Microphonic
Time Delay Adjustment Method - Motion Sensor
Adjustable
Time Delay - Motion Sensor
30 sec to 30 min
Max. Capacity @ 277VAC
1200W (Incandescent)
Watts @ 120V
800
Includes
Wall Plate/Photocell
Time Delay
Adjustable
Sensor Type
Dual Technology PIR/Microphonic
For Use With
Commercial and Residential Lighting Control Applications
Watts @ 277V
1200
Color
White
Item
Occupancy Sensor
Viewing Angle
180 Degrees
Coverage Angle - Motion Sensor
180 Degrees
Max. Capacity @ 120VAC
800W (Incandescent)
Standards
cUL Listed, UL Listed
Lighting Technology
Fluorescent, Incandescent, LED
Communication Method
Hard Wired
Number of Gangs
1
Series
Sensor Switch
Minimum Operating Temperature
32 Degrees F
Installation Location
Wall Mount
Maximum Coverage Area
2,000 sq ft
Includes Dimming Switch
Dimming Switch Not Included
Load Rating @ 120V AC
800W
Sensor Operation
Occupancy, Photocell
Includes Motion Sensor
Yes
Fan Rated
Yes
Horsepower Rating
1/4 hp
Coverage Type
Small Motion
Minimum Time Delay
30 sec
Nightlight
No
Rated Frequency
50/60 Hz
Maximum Operating Temperature
140 Degrees F
Neutral Required
No
Maximum Detection Distance
20 ft
Maximum Time Delay
30 min
Load Rating @ 277V AC
1,200W
Coverage Angle
180 Degrees
Number of Buttons
2
Manufacturer Warranty
5 yr
Includes Wall Plate
Wall Plate Included
Voltage Rating
347
Control Protocol
0-10V
Environment
Indoor
Application Type
Education, Government, Healthcare, Hospitality, Manufacturing, Offices and Banks, Religious, Retail, Sports and Recreation, Warehouses
Finish
Gloss
Environmental Listing
High Humidity
Control
Networkable Control
Lens Material
Plastic
Shape
Rectangular
Operating Voltage
120 to 277V AC

Description

Occupancy Sensor, Number of Buttons 2, Sensor Operation Occupancy, Photocell, Compatible with Series Not Applicable, Lighting Technology Fluorescent, Incandescent, LED, Operating Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR)/Microphonic, Load Rating @ 120V AC 800W, Communication Method Hard Wired, Maximum Coverage Area 2,000 sq ft, Neutral Required No, Color White, Nightlight No, Dimming Method No Dimming, Dimming Type No Dimming
