  11. 3.5 Inch SS Solid Polyurethane Wheel Swivel Top Plate Caster

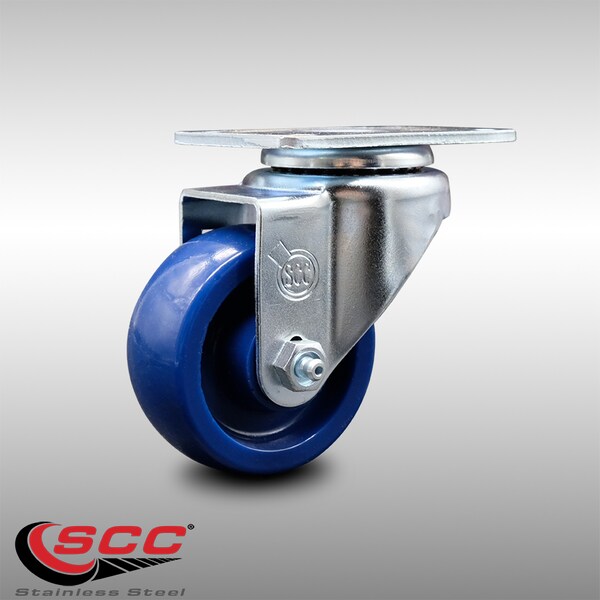

Service Caster 3.5 Inch SS Solid Polyurethane Wheel Swivel Top Plate Caster SCC-SS20S3514-SPUS - main

3.5 Inch SS Solid Polyurethane Wheel Swivel Top Plate Caster

  • Mfr # SCC-SS20S3514-SPUS

  • Zoro # G805430726

product price: $67.99
/ea

Key Features

Wheel Dia.
3.5
Wheel Width
1.25
Series
Series #20
Capacity (Lb.)
300
Finish
Polished stainless steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SCC-SS20S3514-SPUS
Zoro #
G805430726
UPC #
670533920047
Country of Origin
United States

Dimensions

Wheel Dia.
3.5
Wheel Width
1.25
Plate Size
2-1/2" x 3-5/8"
Mounting Height
4-5/8"
Size
3-1/2" x 1-1/4"
Bolt Size
5/16" (hardware not included)

Details

Series
Series #20
Capacity (Lb.)
300
Finish
Polished stainless steel
Caster Temp. Range
-50 degrees F to 180 degrees F
Plate Caster Bolt Hole Pattern
1-3/4" x 2-7/8" to 3"
Material
Solid Polyurethane
Caster Mounting Type
Top Plate
Type
Swivel caster
Durometer
60-65 D
Bearing Type
Plain Bore

Description

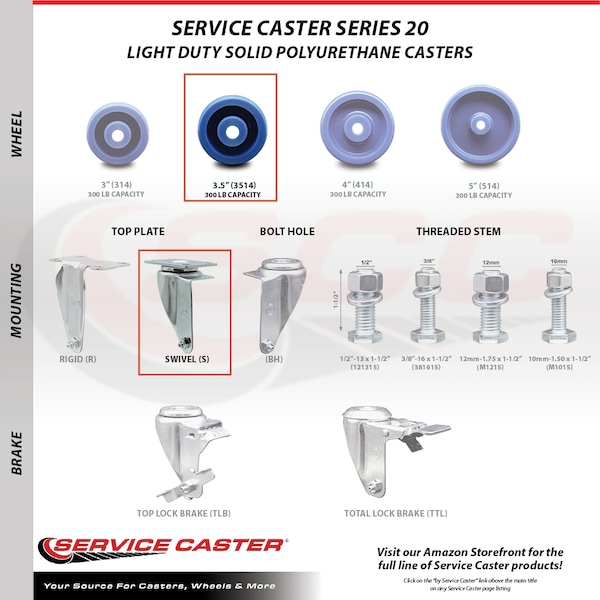

Listing is for one (1) Service Caster Series #20 stainless steel swivel caster with a 3-1/2" diameter by 1-1/4" wide solid polyurethane wheel capable of supporting 300lbs./caster.The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition. And the non-marking, non-marring polyurethane wheel is molded as one solid piece, making it free from debonding. This ensures the wheel will not flat spot, as can occur with comparable polyurethane wheels, resulting in a smooth and solid roll over long periods of time. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
