Service Caster

5 Inch Thermoplastic Rubber Caster Set with Roller Bearings and Total Lock Brake

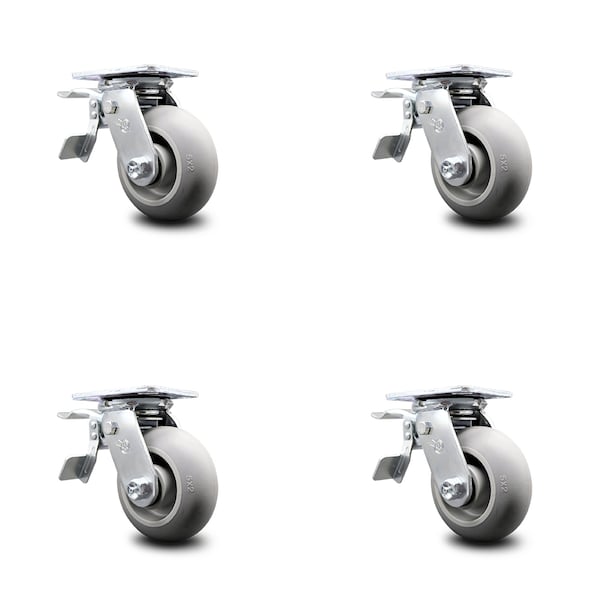

Service Caster 5 Inch Thermoplastic Rubber Caster Set with Roller Bearings and Total Lock Brake SCC-TTL30S520-TPRRD-4
Hover or click to zoom Tap to zoom
  • Wheel Dia.: 5
  • Wheel Width: 2
  • Finish: Bright Zinc Plated Finish
  • Series: Series #30
  • Material: Thermoplastic Rubber on Polyolefin
  • Plate Size: 4" x 4-1/2"
  • Durometer: 75A
  • Type: swivel caster w/ total lock brake
See full product details
$387.24

Subtotal: $387.24

Service Caster #SCC-TTL30S520-TPRRD-4 Specifications

  • Wheel Dia.: 5
  • Wheel Width: 2
  • Finish: Bright Zinc Plated Finish
  • Series: Series #30
  • Material: Thermoplastic Rubber on Polyolefin
  • Plate Size: 4" x 4-1/2"
  • Durometer: 75A
  • Type: swivel caster w/ total lock brake
  • Capacity (Lb.): 1400
  • Caster Mounting Type: Top Plate
  • Mounting Height: 6-1/2"
  • Caster Temp. Range: -20 degrees F to 180 degrees F
  • Caster Swivel Lock Type: Total Lock Brake
  • Plate Caster Bolt Hole Pattern: 2-5/8" x 3-5/8" to 3" x 3"
  • Bolt Size: 3/8" (hardware not included)
  • Size: 5" x 2"
  • Bearing Type: Roller Bearing
  • Country of Origin (subject to change): United States

Description

Listing is for a set of four (4) Service Caster Series #30 swivel casters with 5" diameter by 2" wide thermoplastic rubber donut tread wheels with total lock brakes capable of supporting a total weight of 1,400 lbs. (350 lbs. per caster). When searching for a reliable and durable solution for medium and heavy duty projects, consider Service Caster’s Series 30 top plate thermoplastic rubber donut tread on polyolefin core casters. The rounded face "donut" style soft tread is made of thermoplastic rubber that is non-marking, non-marring and provides easier mobility over standard flat tread wheels, resulting in a long lasting, high capacity wheel capable of easy rolling under heavy loads. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 30, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

Reviews of Service Caster #SCC-TTL30S520-TPRRD-4
